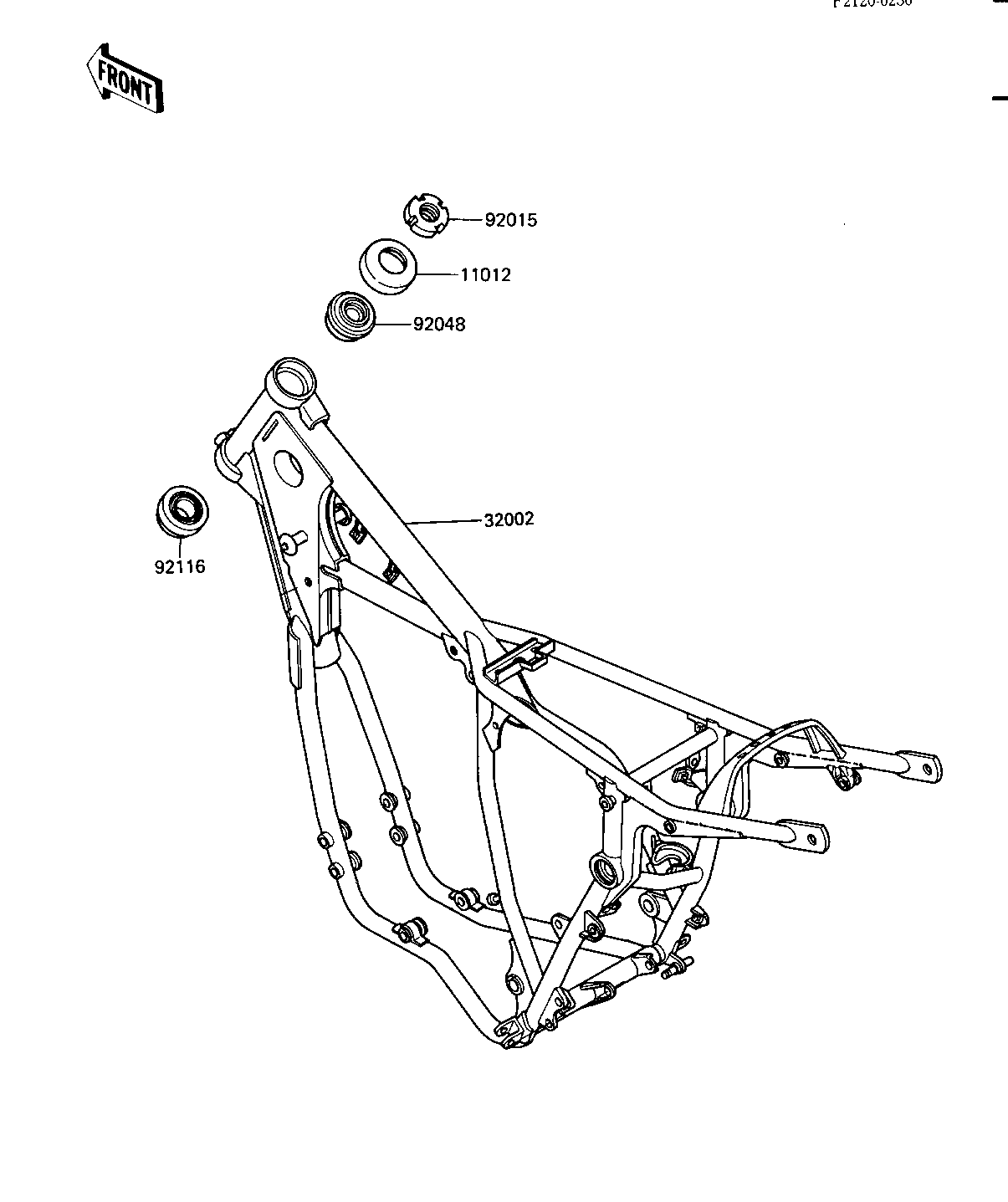

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAP,STEERING STEM 11012 46098-015 1
FRAME-COMP 32002 32002-1775 1
BEARING,STEERING STEM 92015 92047-017 1
BEARING,STEERING STEM 92048 92047-017 1
BEARING,ROLLER,32006 92116 92116-1008 1
