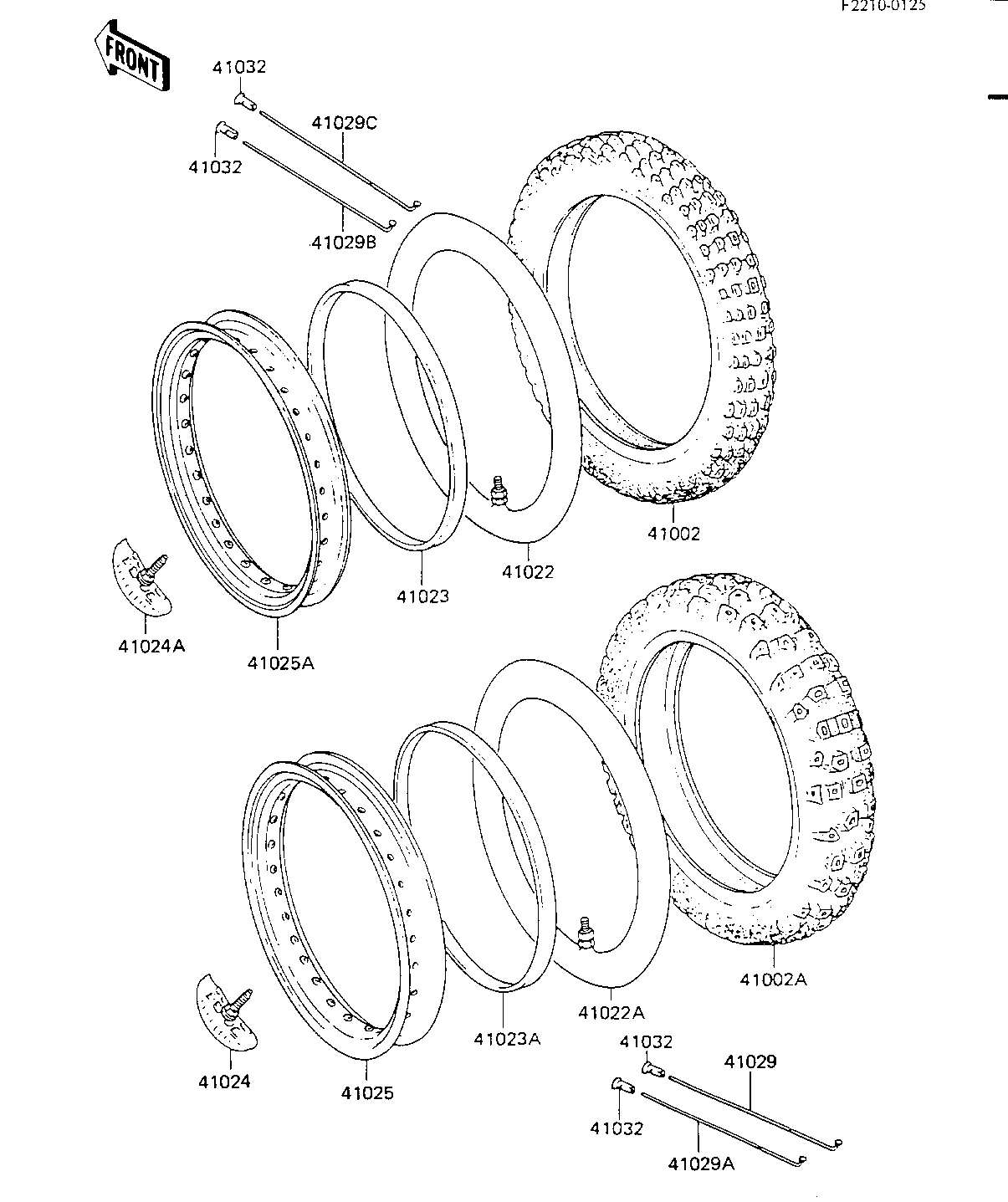

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
TIRE 41002 41002-1519 1
TIRE 41002A 41002-1524 1
TUBE-TIRE 41022 41022-1107 1
TUBE-TIRE 41022 41022-1109 1
BAND,RIM 41023 41023-1009 1
BAND,RIM 41023A 41023-1010 1
PROTECTORBEAD 41024 41024-009 1
PROTECTOR,BEAD 1.60A 41024A 41024-010 1
RIM,RR,2.15X18E7J 41025 41025-1116 1
RIM,FR,1.60X21 41025A 41025-1117 1
SPOKE-INNER,RR,RH 41029 41029-1122 18
SPOKE-INNER,RR,LH 41029A 41029-1123 18
SPOKE-INNER,FR,LH 41029B 41029-1125 9
SPOKE-INNER,FR,RH 41029C 41029-1126 27
NIPPLE-SPOKE 41032 41032-1054 72
