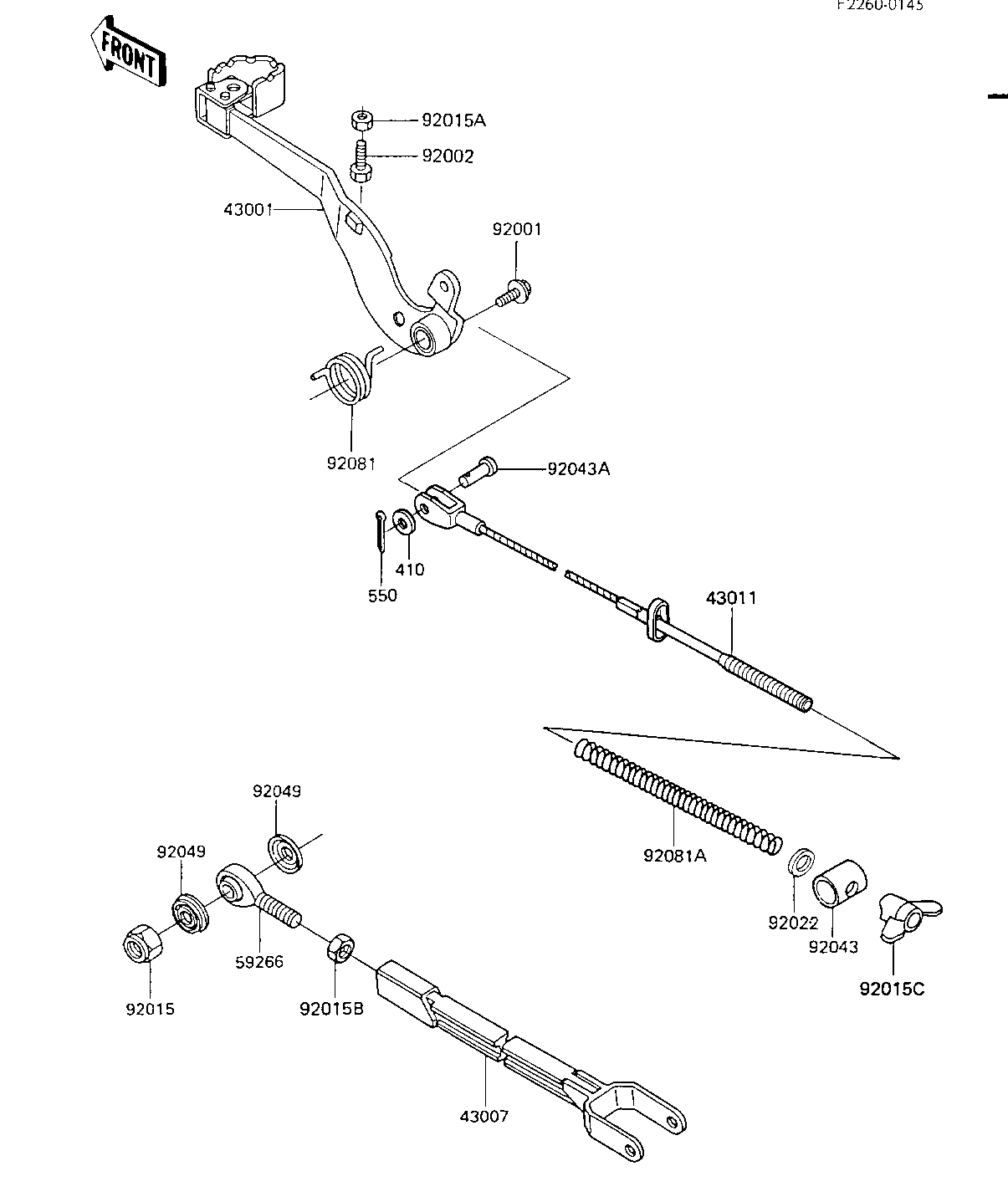

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
LEVER-BRAKE,PEDAL 43001 43001-1173 1
ROD-TORQUE 43007 43007-1110 1
ROD-BRAKE 43011 43011-1117 1
JOINT-BALL,TORQUE ROD 59266 59266-1057 1
BOLT,HEX HEAD,6X10 92001 92001-1034 1
BOLT,6X20 92002 92002-1373 1
NUT,LOCK,8MM 92015 92015-1124 1
NUT,6MM 92015A 92015-1391 1
NUT,10MM 92015B 92015-1469 1
NUT,WING,6M/M 92015C 92015-4004 1
WASHER,6.3X10.2X1.6 92022 92022-1588 1
PIN,BRAKE 92043 92043-1024 1
PIN RR BRAKE CABLE 92043A 92043-107 1
OIL SEAL,BALL JOINT 92049 92049-1072 2
SPRING,BRAKE RETURN 92081 92081-1640 1
SPRING,BAAKE ROD 92081A 92081-1688 1
WASHER PLAIN 6MM 410 410B0600 1
PIN COTTER 2.0X15 550 550D2015 1
