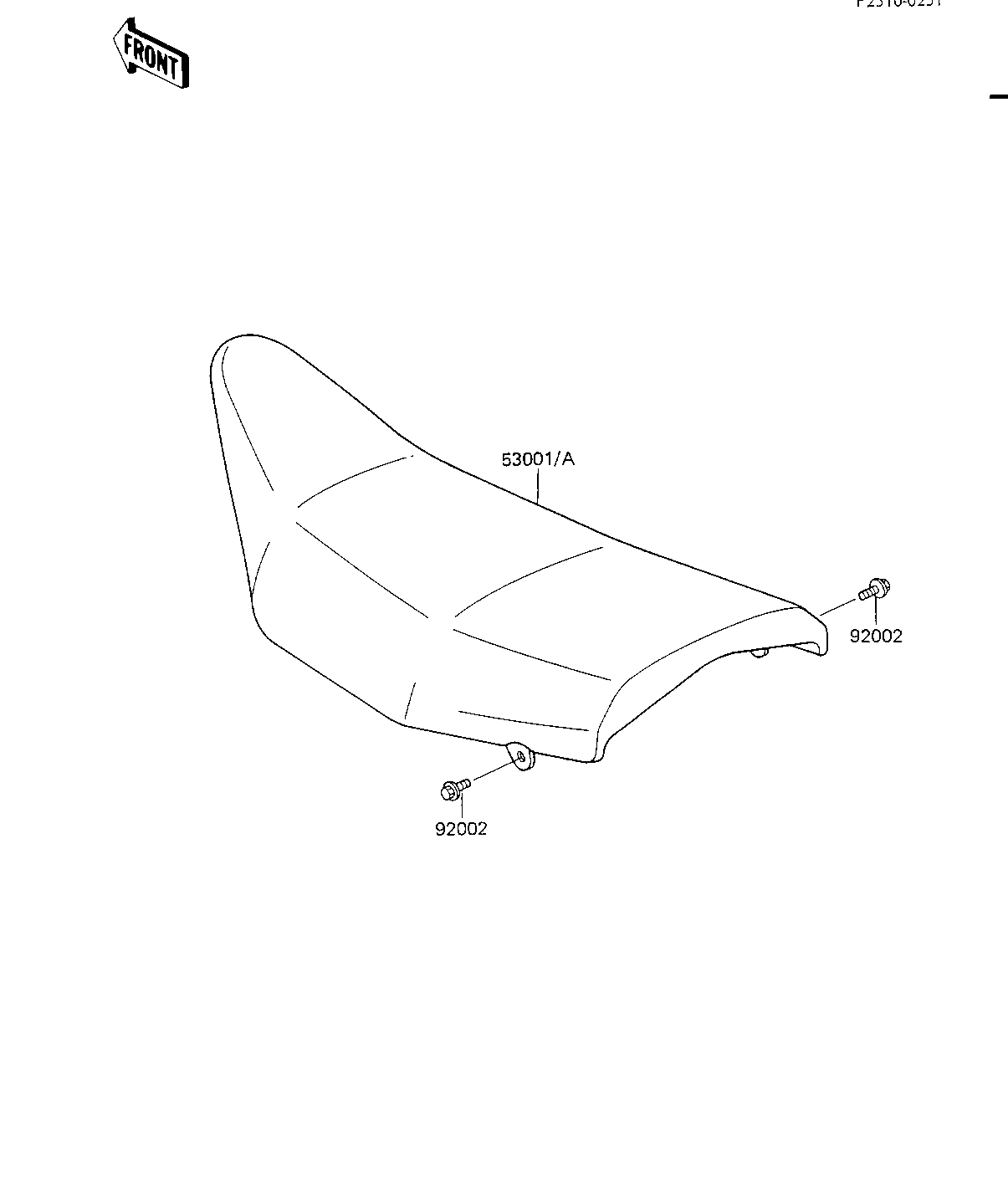

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SEAT-ASSY 53001 53001-1398 1
SEAT-ASSY 53001A 53001-1399 1 (OPTION)
BOLT,6X14 92002 92150-1340 2
