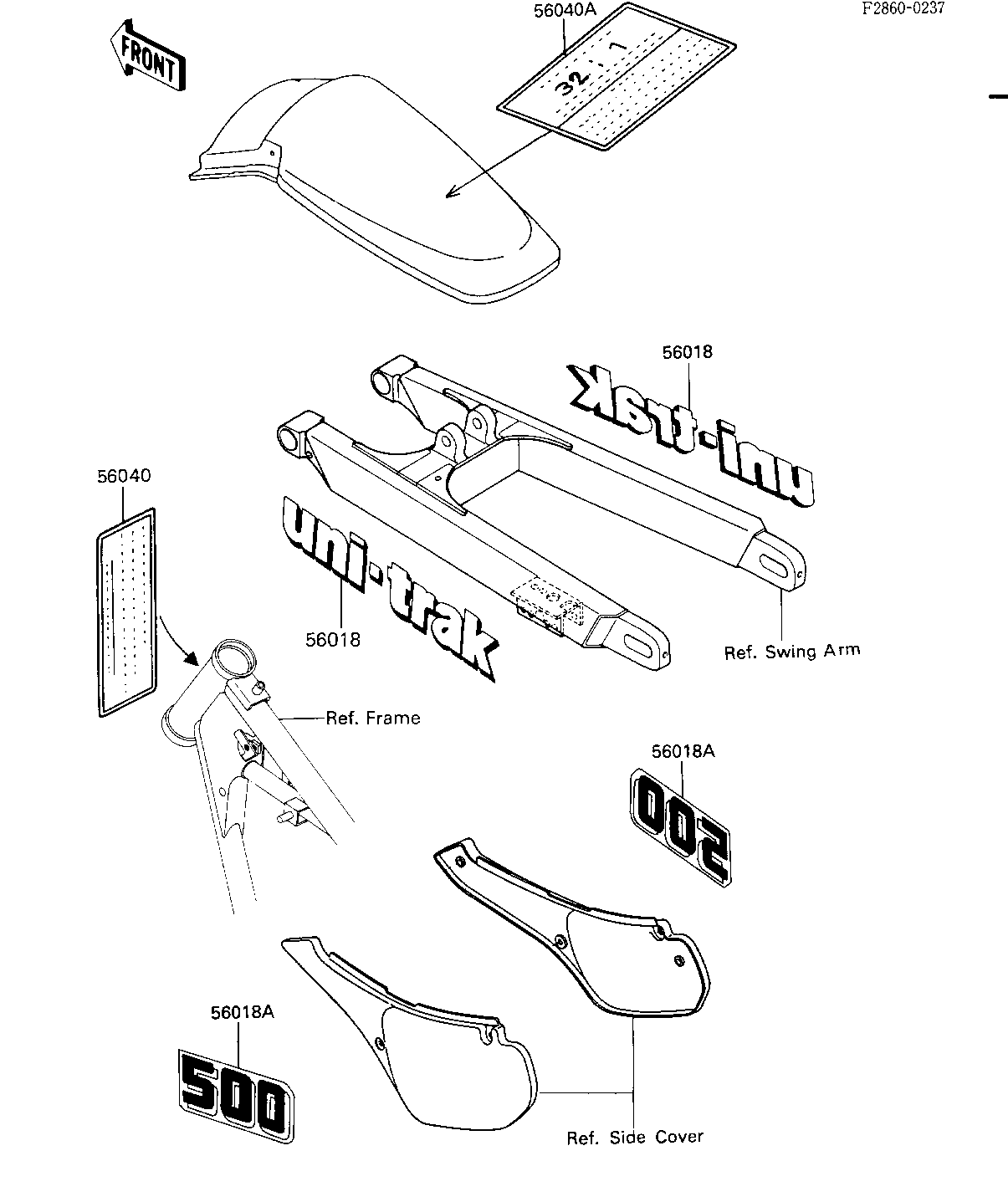

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
MARK,SWING ARM,UNI-TR 56018 56018-1364 2
MARK,SIDE COVER,"500" 56018A 56018-1631 2
LABEL,NOISE 56040 56040-1101 1
LABEL-WARNING,GASOLIN 56040A 56040-1129 1
