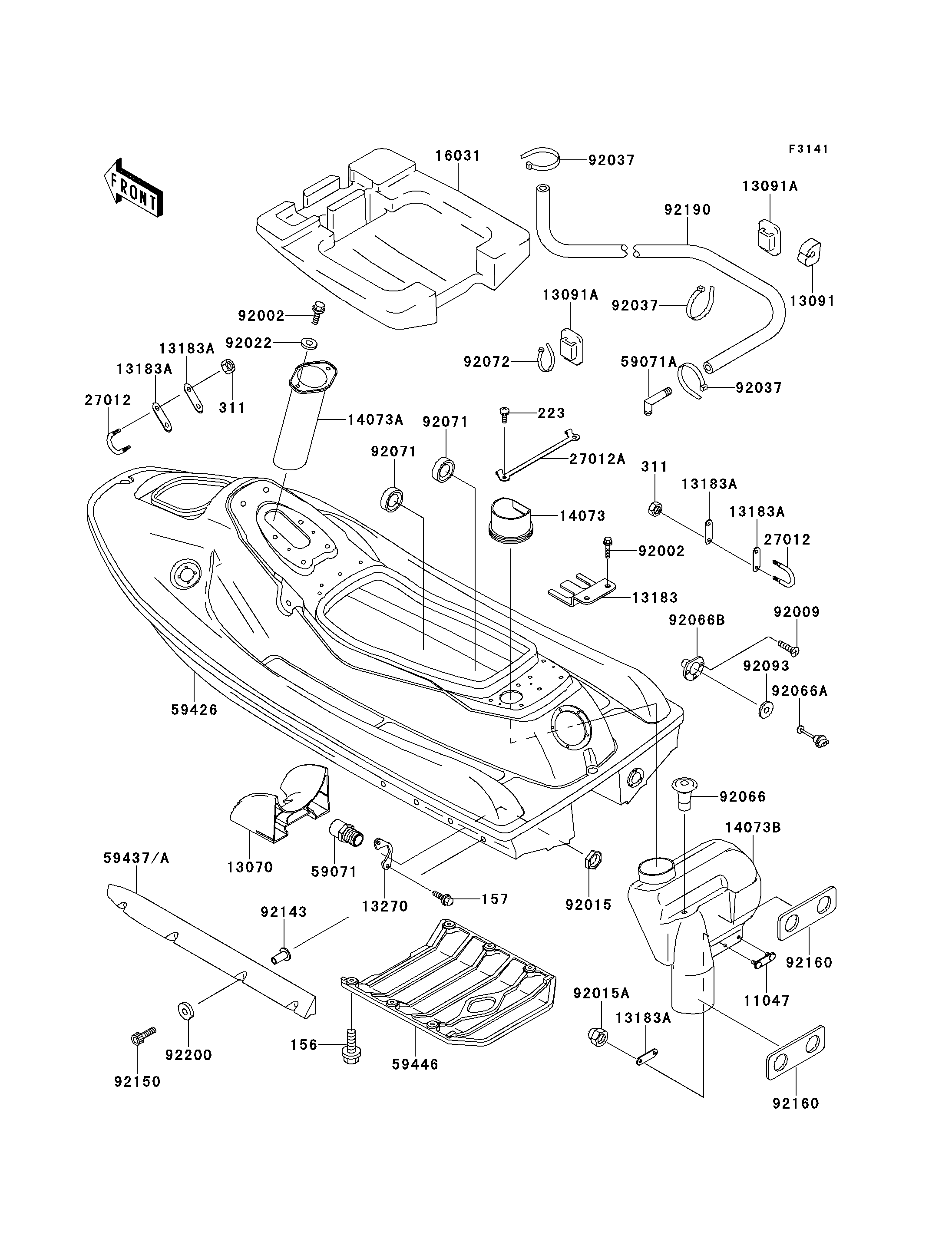

Parts Diagrams |
156
156
157
157
223
223
11047
11047
13070
13070
13091
13091
13091A
13091A
13091A
13091A
13183
13183
13183A
13183A
13183A
13183A
13183A
13183A
13183A
13183A
13183A
13183A
13270
13270
14073
14073
14073A
14073A
14073B
14073B
16031
16031
27012
27012
27012
27012
27012A
27012A
59071
59071
59071A
59071A
59437
59437
59437A
59437A
59446
59446
92002
92002
92002
92002
92009
92009
92015
92015
92015A
92015A
92022
92022
92037
92037
92037
92037
92037
92037
92066
92066
92066A
92066A
92066B
92066B
92071
92071
92071
92071
92072
92072
92093
92093
92143
92143
92150
92150
92160
92160
92160
92160
92190
92190
92200
92200
311
311
311
311
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| BOLT-WP,6X20 | 156 | 156R0620 | 6 | ||
| BOLT-WSP,5X18 | 157 | 157R0518 | 2 | ||
| SCREW-PAN-WS-CROS,6X14 | 223 | 223R0614 | 2 | ||
| BRACKET,RR DUCT | 11047 | 11047-3774 | 1 | ||
| GUIDE,INTAKE | 13070 | 13070-3718 | 1 | ||
| HOLDER | 13091 | 13091-3712 | 2 | ||
| HOLDER,BAND | 13091A | 13091-3764 | 3 | ||
| PLATE | 13183 | 13183-3760 | 1 | ||
| PLATE | 13183A | 13183-3809 | 5 | ||
| PLATE | 13270 | 13270-3782 | 1 | ||
| DUCT,INTAKE | 14073 | 14073-3739 | 1 | ||
| DUCT,FR | 14073A | 14073-3746 | 1 | ||
| DUCT,RR,MAIN | 14073B | 14073-3747 | 1 | ||
| FLOAT | 16031 | 16031-3819 | 1 | ||
| HOOK | 27012 | 27012-3761 | 2 | ||
| HOOK,FIRE EXTINGUISHER | 27012A | 27012-3772 | 1 | ||
| JOINT | 59071 | 59071-3713 | 1 | ||
| JOINT | 59071A | 59071-3733 | 1 | ||
| STABILIZER,LH,J.WHITE | 59437 | 59437-3706-8U | 1 | ||
| STABILIZER,RH,J.WHITE | 59437A | 59437-3707-8U | 1 | ||
| COVER-JET PUMP | 59446 | 59446-3723 | 1 | ||
| BOLT,6X16 | 92002 | 92002-3728 | 4 | ||
| SCREW,TAPPING,4X14 | 92009 | 92009-3755 | 3 | ||
| NUT,20MM | 92015 | 92015-3738 | 1 | ||
| NUT,CAP,6MM | 92015A | 92015-3755 | 2 | ||
| WASHER,6.5X20X1.5 | 92022 | 92022-3710 | 2 | ||
| CLAMP | 92037 | 92037-1173 | 3 | ||
| PLUG | 92066 | 92066-3706 | 1 | ||
| PLUG,RR,DRAIN | 92066A | 92066-3744 | 1 | ||
| PLUG,RR,DRAIN | 92066B | 92066-3747 | 1 | ||
| GROMMET | 92071 | 92071-3783 | 2 | ||
| BAND | 92072 | 92072-3778 | 1 | ||
| SEAL | 92093 | 92093-3720 | 1 | ||
| COLLAR | 92143 | 92143-3739 | 8 | ||
| BOLT,SOCKET,6X40 | 92150 | 92150-3847 | 8 | ||
| DAMPER | 92160 | 92160-3722 | 2 | ||
| TUBE,5X10X1000 | 92190 | 92190-3896 | 1 | ||
| WASHER,6.5X16X1.0 | 92200 | 92200-3712 | 8 | ||
| NUT-HEX,6MM | 311 | 311R0600 | 4 | ||
| HULL-COMP,J.WHITE | 59426 | 59426-3843-8C | 1 | US |
| BOLT-WP,6X20 | |
| REF # | 156 |
|---|---|
| PART NUMBER | |
| QUANTITY | 6 |
| DESTINATION | |
| REMARKS | |
| BOLT-WSP,5X18 | |
| REF # | 157 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WS-CROS,6X14 | |
| REF # | 223 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BRACKET,RR DUCT | |
| REF # | 11047 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GUIDE,INTAKE | |
| REF # | 13070 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOLDER,BAND | |
| REF # | 13091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13183 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13183A |
|---|---|
| PART NUMBER | |
| QUANTITY | 5 |
| DESTINATION | |
| REMARKS | |
| PLATE | |
| REF # | 13270 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,INTAKE | |
| REF # | 14073 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,FR | |
| REF # | 14073A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DUCT,RR,MAIN | |
| REF # | 14073B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| FLOAT | |
| REF # | 16031 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOOK | |
| REF # | 27012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOOK,FIRE EXTINGUISHER | |
| REF # | 27012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT | |
| REF # | 59071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| JOINT | |
| REF # | 59071A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STABILIZER,LH,J.WHITE | |
| REF # | 59437 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STABILIZER,RH,J.WHITE | |
| REF # | 59437A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-JET PUMP | |
| REF # | 59446 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X16 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X14 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| NUT,20MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,CAP,6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X20X1.5 | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CLAMP | |
| REF # | 92037 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| PLUG | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,RR,DRAIN | |
| REF # | 92066A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,RR,DRAIN | |
| REF # | 92066B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GROMMET | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BAND | |
| REF # | 92072 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SEAL | |
| REF # | 92093 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COLLAR | |
| REF # | 92143 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,6X40 | |
| REF # | 92150 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| DAMPER | |
| REF # | 92160 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TUBE,5X10X1000 | |
| REF # | 92190 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WASHER,6.5X16X1.0 | |
| REF # | 92200 |
|---|---|
| PART NUMBER | |
| QUANTITY | 8 |
| DESTINATION | |
| REMARKS | |
| NUT-HEX,6MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| HULL-COMP,J.WHITE | |
| REF # | 59426 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | US |
| REMARKS | |
