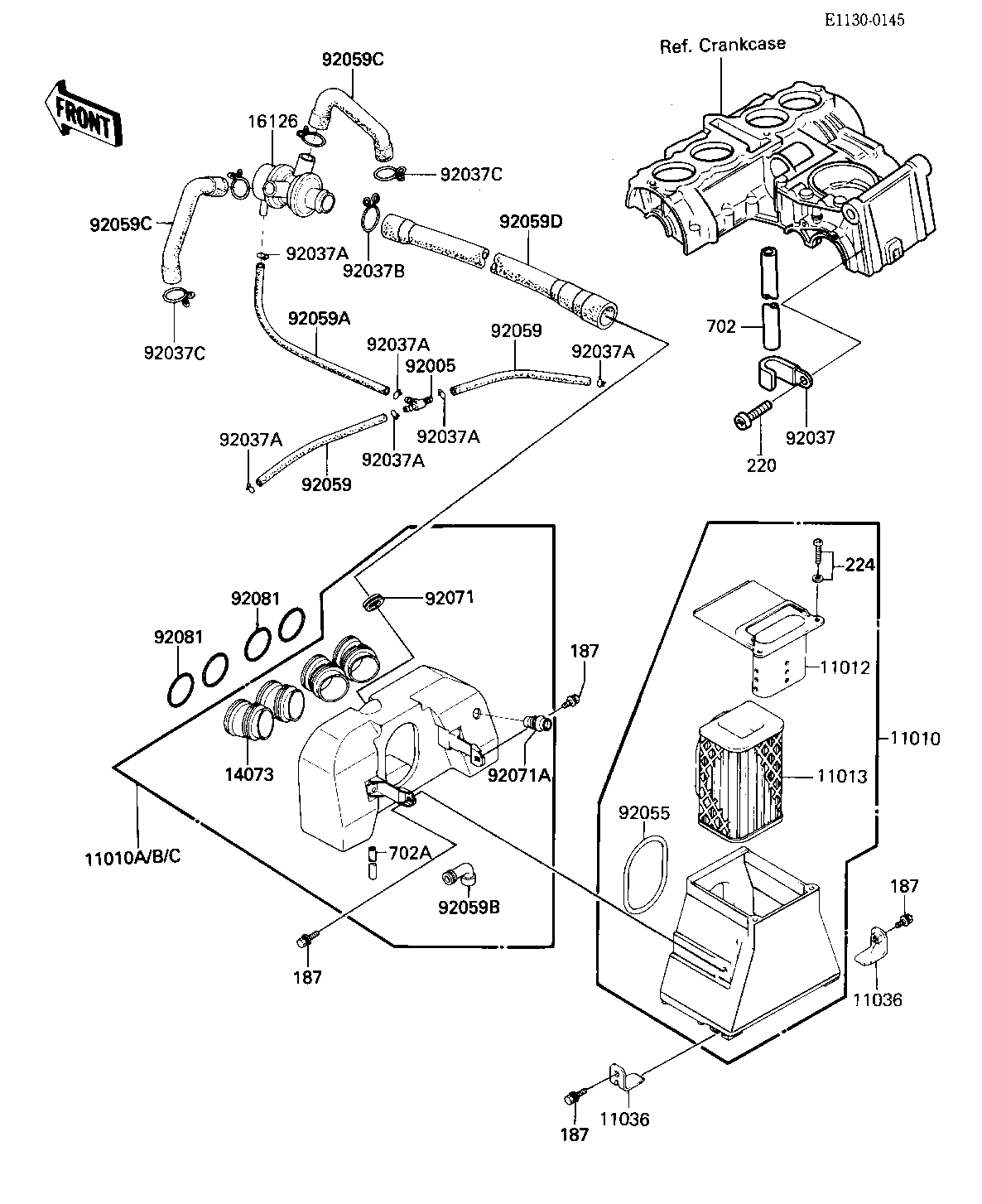

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
FILTER-ASSY-AIR,RR 11010 11010-1149 1
FILTER-ASSY-AIR,FR (Canada) 11010B 11010-1211 1 CN
CAP,AIR FILTER 11012 11012-1183 1
ELEMENT,AIR CLNR 11013 11013-1013 1
BRACKET-A,AIR FILTER, 11036 11036-1514 2
DUCT,AIR FILTER,FR 14073 14073-1158 4
CLAMP,WIRING HARNESS 92037 21126-008 1 CN,US
RING-0,91MM 92055 92055-1137 1
TUBE,AIR FILTER BLEED 92059B 92059-1170 1
SPRING,AIR FILTER DUC 92081 92144-1771 4
BOLT 6X14 187 187B0614 4
SCREW PAN HEAD 6X12 220 220B0612 1 CN,US
SCREW-PAN-WP-CROS 224 224B0612 2
TUBE-RUBBER 702 702A04120 1 CN,US
