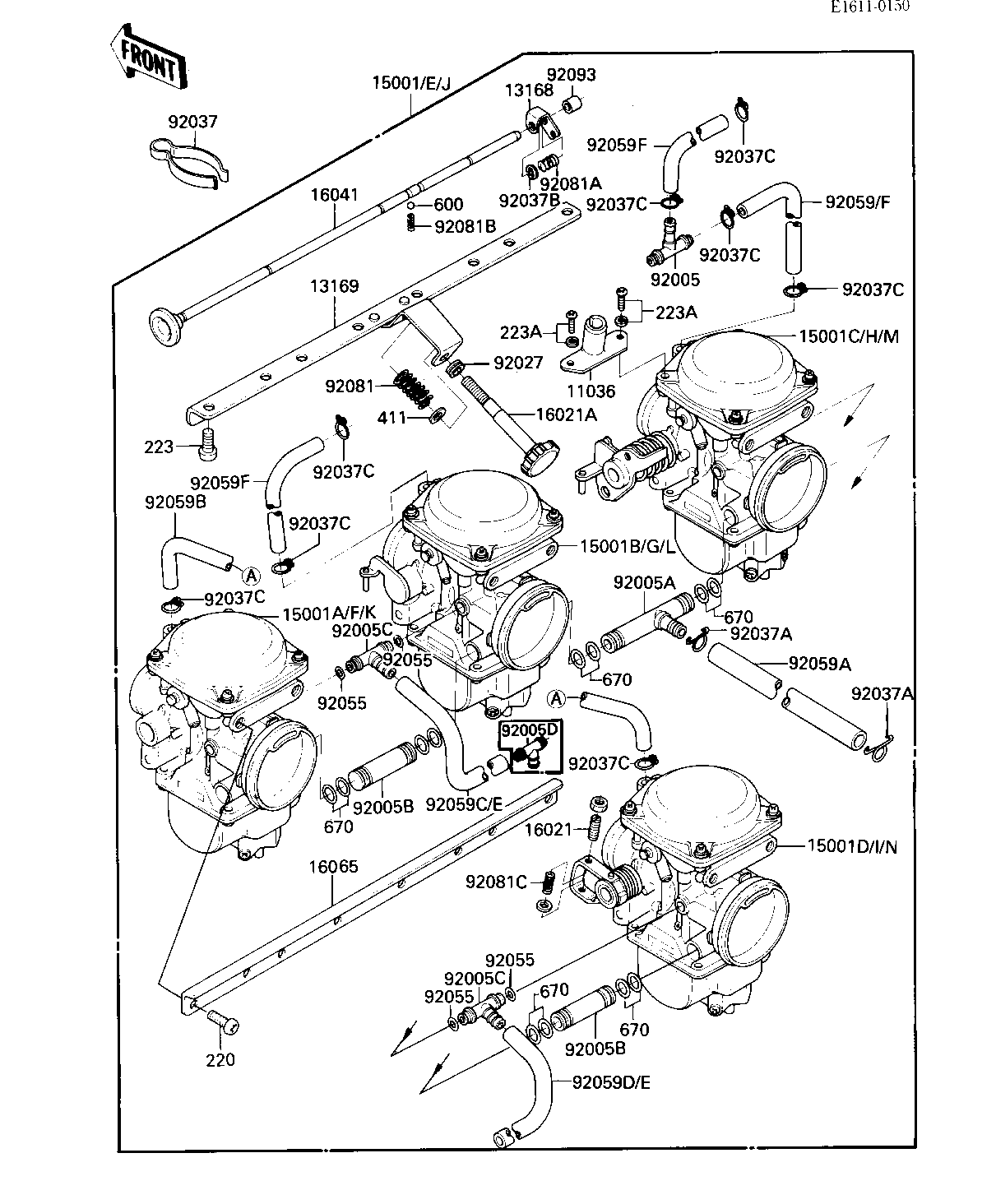

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
BRACKET-A | 11036 | 11036-1453 | 1 | ||
LEVER | 13168 | 13168-1110 | 4 | ||
PLATE,CARBURETOR,LWR | 13169 | 13169-1625 | 1 | ||
CARBURATOR (Canada) | 15001E | 16001-1979 | 1 | ||
CARBURETOR,LH,OUTSIDE (Canada) | 15001F | 16001-1980 | 1 | ||
CARBURETOR,LH,INSIDE (Canada) | 15001G | 16001-1981 | 1 | ||
CARBURETOR,RH,INSIDE (Canada) | 15001H | 16001-1982 | 1 | ||
CARBURETOR,RH,OUTSIDE (Canada) | 15001I | 16001-1983 | 1 | ||
SCREW-THROTTLE STOP | 16021 | 16021-1043 | 3 | ||
SCREW-THROTTLE STOP | 16021A | 16021-1048 | 1 | ||
SHAFT-CARBURETOR,STAR | 16041 | 16041-1027 | 1 | ||
HOLDER-CARBURETOR | 16065 | 16065-1057 | 1 | ||
"T"JOINT,FUEL | 92005 | 92005-1020 | 1 | CA,US | |
"T"JOINT,FUEL | 92005A | 92005-1020 | 1 | ||
JOINT,FUEL | 92005B | 92005-1021 | 2 | ||
FITTING | 92005C | 92005-1058 | 2 | ||
COLLAR,STOP SCREW | 92027 | 92027-1432 | 1 | ||
CLAMP,FUEL HOSE | 92037A | 92037-1158 | 2 | ||
CLAMP | 92037B | 92037-1302 | 4 | ||
RING-O | 92055 | 92055-1134 | 4 | ||
TUBE,7X12X200 | 92059A | 92059-1290 | 1 | ||
SPRING,ADJUST SCREW | 92081 | 92081-1193 | 1 | ||
SPRING | 92081A | 92081-1439 | 4 | ||
SPRING,SHAFT STOP | 92081B | 92081-1440 | 1 | ||
SPRING | 92081C | 92081-1442 | 3 | ||
SEAL | 92093 | 92093-1074 | 4 | ||
SCREW PAN HEAD 6X14 | 220 | 220B0614 | 16 | ||
SCREW-PAN-WS-CROS | 223 | 223C0414 | 2 | ||
SCREW-PAN-WS-CROS | 223A | 223C0418 | 2 | ||
WASHER | 411 | 411S0500 | 1 | ||
BALL,STEEL,1/8" | 600 | 600A0400 | 1 | ||
"O" RING,7MM | 670 | 670B1507 | 12 |
BRACKET-A | |
REF # | 11036 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
LEVER | |
REF # | 13168 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
PLATE,CARBURETOR,LWR | |
REF # | 13169 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CARBURATOR (Canada) | |
REF # | 15001E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CARBURETOR,LH,OUTSIDE (Canada) | |
REF # | 15001F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CARBURETOR,LH,INSIDE (Canada) | |
REF # | 15001G |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CARBURETOR,RH,INSIDE (Canada) | |
REF # | 15001H |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CARBURETOR,RH,OUTSIDE (Canada) | |
REF # | 15001I |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW-THROTTLE STOP | |
REF # | 16021 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW-THROTTLE STOP | |
REF # | 16021A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT-CARBURETOR,STAR | |
REF # | 16041 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER-CARBURETOR | |
REF # | 16065 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"T"JOINT,FUEL | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA,US |
"T"JOINT,FUEL | |
REF # | 92005A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
JOINT,FUEL | |
REF # | 92005B |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FITTING | |
REF # | 92005C |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
COLLAR,STOP SCREW | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,FUEL HOSE | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CLAMP | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
RING-O | |
REF # | 92055 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
TUBE,7X12X200 | |
REF # | 92059A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,ADJUST SCREW | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SPRING,SHAFT STOP | |
REF # | 92081B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92081C |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SEAL | |
REF # | 92093 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X14 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 16 |
DESTINATION | |
REMARKS |
SCREW-PAN-WS-CROS | |
REF # | 223 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SCREW-PAN-WS-CROS | |
REF # | 223A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
WASHER | |
REF # | 411 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BALL,STEEL,1/8" | |
REF # | 600 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"O" RING,7MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 12 |
DESTINATION | |
REMARKS |
