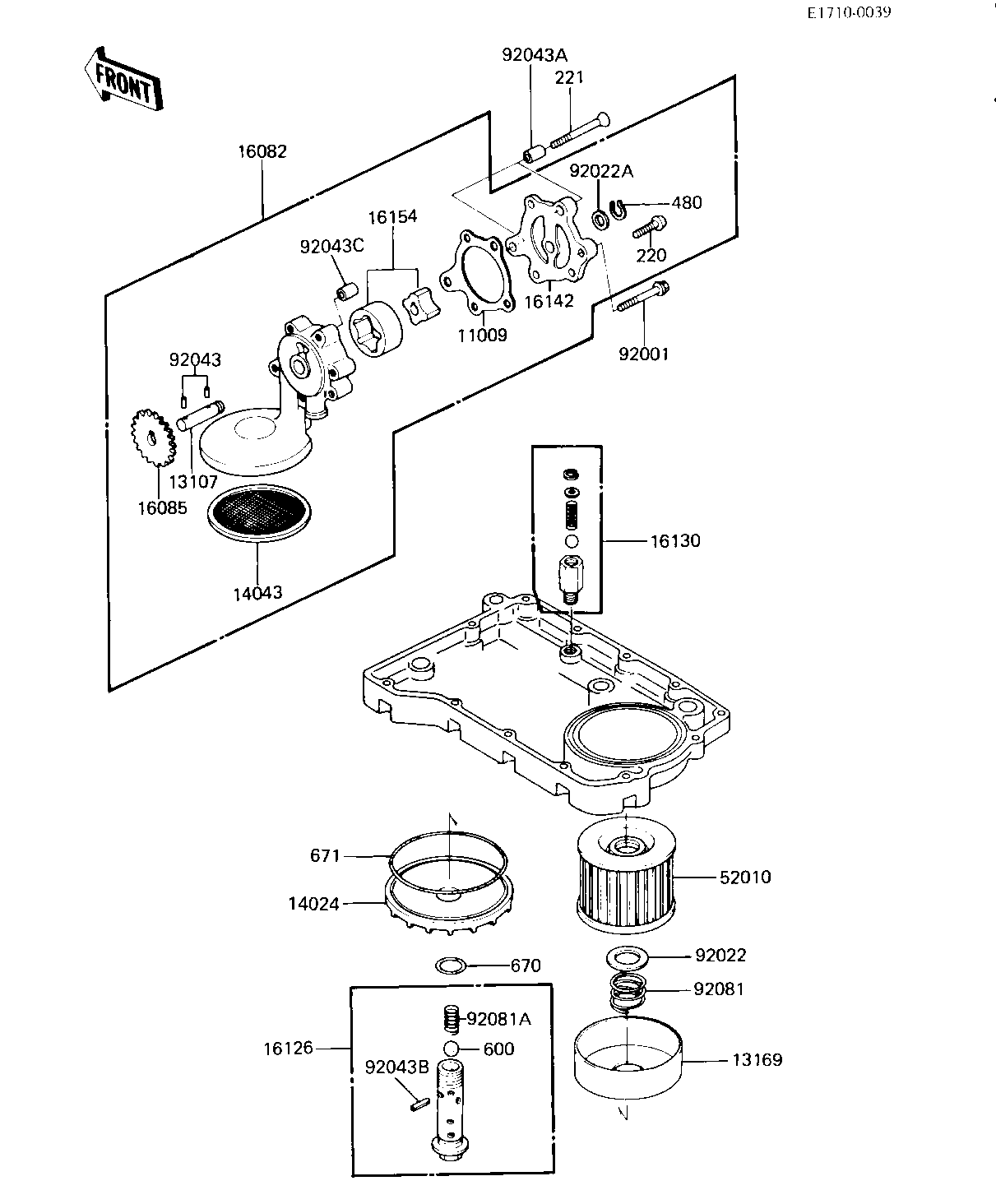

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,OIL PUMP COVER | 11009 | 16145-004 | 1 | ||
SHAFT,OIL PUMP | 13107 | 16086-004 | 1 | ||
PLATE,OIL FILTER | 13169 | 13169-1110 | 1 | ||
COVER,OIL FILTER,F.BL | 14024 | 14025-1422 | 1 | ||
STRAINER,OIL PUMP | 14043 | 16111-004 | 1 | ||
OIL PUMP ASSY | 16082 | 16082-064 | 1 | ||
GEAR,OIL PUMP,57T | 16085 | 16085-025 | 1 | ||
VALVE,OIL FILTER | 16126 | 16126-1108 | 1 | ||
RELEAF VALVE ASSY | 16130 | 16130-1001 | 1 | ||
COVER,OIL PUMP | 16142 | 16142-005 | 1 | ||
ROTOR ASSY,OIL PUMP | 16154 | 16154-003 | 1 | ||
FILTER,OIL | 52010 | 16099-003 | 1 | ||
BOLT,HEX HEAD,6X45 | 92001 | 92001-165 | 1 | ||
WASHER,20.5X30X1.0 | 92022 | 92022-1012 | 1 | ||
WASHER,PLAIN | 92022A | 92022-311 | 1 | ||
PIN,DOWEL | 92043 | 92042-041 | 2 | ||
PIN,DOWEL,6.2X8X28 | 92043A | 92042-050 | 2 | ||
SPRING PIN | 92043B | 92043-111 | 1 | ||
PIN,DOWEL,8X10 | 92043C | 92043-1302 | 1 | ||
SPRING,OIL FILTER | 92081 | 92081-1018 | 1 | ||
SPRING | 92081A | 92081-109 | 1 | ||
SCREW PAN HEAD 6X22 | 220 | 220B0622 | 3 | ||
SCREW,CNTSNK HD,6X55 | 221 | 221B0655 | 2 | ||
CIRCLIP,11MM | 480 | 480J1100 | 1 | ||
BALL STEEL 3/8' | 600 | 600A1200 | 1 | ||
"0" RING,16MM | 670 | 670B2016 | 1 | ||
"0" RING,90MM | 671 | 671B2590 | 1 |
GASKET,OIL PUMP COVER | |
REF # | 11009 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SHAFT,OIL PUMP | |
REF # | 13107 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE,OIL FILTER | |
REF # | 13169 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,OIL FILTER,F.BL | |
REF # | 14024 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
STRAINER,OIL PUMP | |
REF # | 14043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
OIL PUMP ASSY | |
REF # | 16082 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OIL PUMP,57T | |
REF # | 16085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE,OIL FILTER | |
REF # | 16126 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RELEAF VALVE ASSY | |
REF # | 16130 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COVER,OIL PUMP | |
REF # | 16142 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROTOR ASSY,OIL PUMP | |
REF # | 16154 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
FILTER,OIL | |
REF # | 52010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,HEX HEAD,6X45 | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,20.5X30X1.0 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,PLAIN | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,DOWEL | |
REF # | 92043 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
PIN,DOWEL,6.2X8X28 | |
REF # | 92043A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
SPRING PIN | |
REF # | 92043B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PIN,DOWEL,8X10 | |
REF # | 92043C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,OIL FILTER | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SCREW PAN HEAD 6X22 | |
REF # | 220 |
---|---|
PART NUMBER | |
QUANTITY | 3 |
DESTINATION | |
REMARKS |
SCREW,CNTSNK HD,6X55 | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
CIRCLIP,11MM | |
REF # | 480 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BALL STEEL 3/8' | |
REF # | 600 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"0" RING,16MM | |
REF # | 670 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
"0" RING,90MM | |
REF # | 671 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
