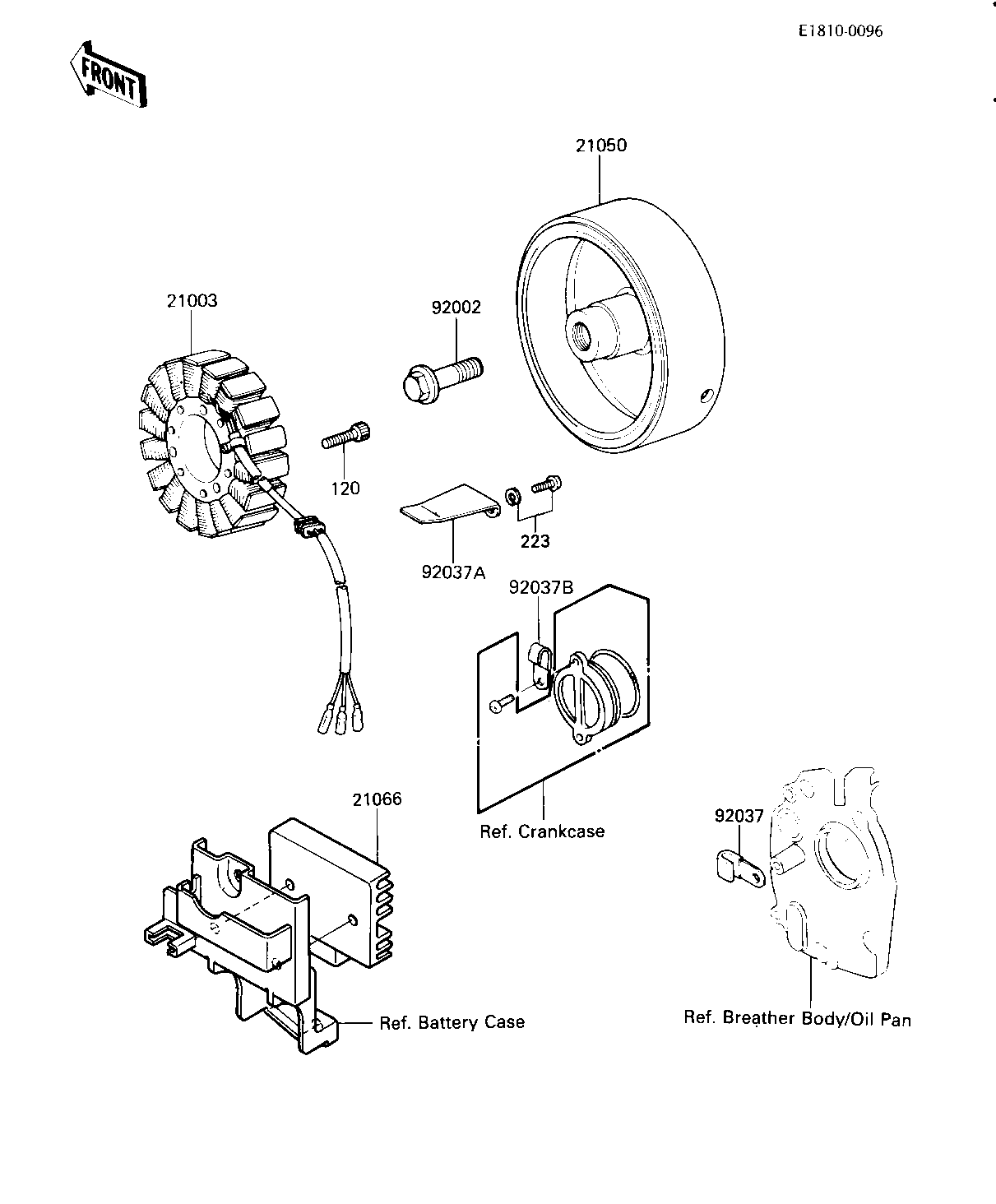

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
STATOR,GENERATOR 21003 21003-1038 1
FLYWHEEL,GENERATOR 21050 21050-1019 1
REGULATOR-VOLTAGE 21066 21066-1038 1
BOLT,10X40 92002 92002-1296 1
CLAMP,WIRING HARNESS 92037 21126-008 1
CLAMP,GENERATOR WIRE 92037A 92037-1122 1
CLAMP,WIRING HARNESS 92037B 92037-1539 1
BOLT,ALLEN,6X28 120 120P0628 3
SCREW-PAN-WS-CROS 223 223B0512 2
