Parts Diagrams |

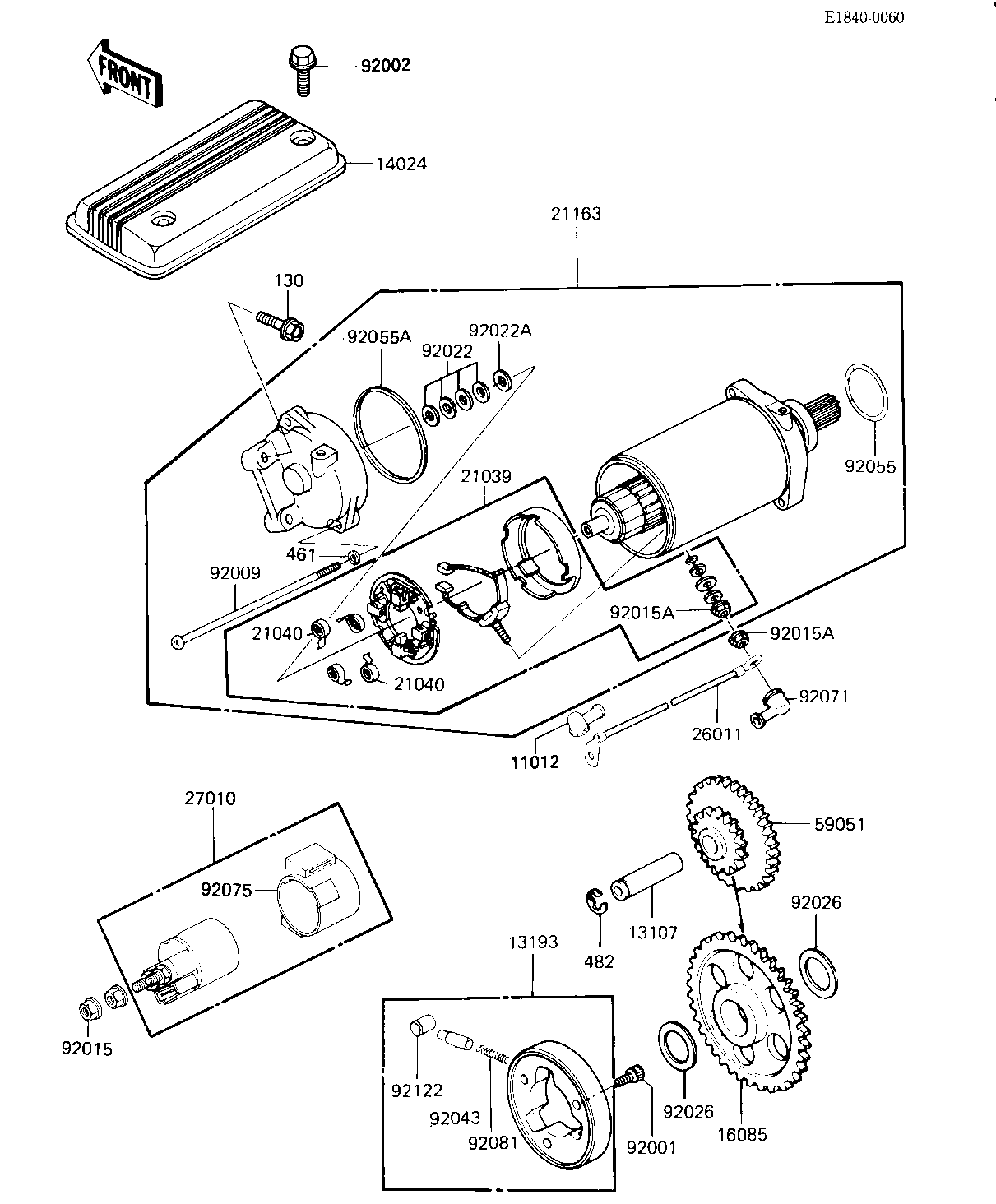

1986 GPz - STARTER MOTOR/STARTER CLUTCH
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| CAP,TERMINAL | 11012 | 11012-1354 | 1 | ||
| SHAFT,IDLE GEAR | 13107 | 13107-1006 | 1 | ||
| CLUTCH ASSY,ONEWAY | 13193 | 13193-1002 | 1 | ||
| COVER,STARTER | 14024 | 14025-1655 | 1 | ||
| GEAR,ONEWAY CLUTCH | 16085 | 16085-1030 | 1 | ||
| BRUSH,CARBON | 21039 | 21039-1053 | 1 | ||
| SPRING-BRUSH | 21040 | 21040-1003 | 4 | ||
| STARTER-ELECTRIC | 21163 | 21163-1031 | 1 | ||
| WIRE-LEAD,START MOTOR | 26011 | 26011-1135 | 1 | ||
| SWITCH,MAGNETIC | 27010 | 27010-1235 | 1 | ||
| GEAR,STARTER IDLE | 59051 | 59051-1011 | 1 | ||
| BOLT,SOCKET,8X10 | 92001 | 92001-1424 | 3 | ||
| BOLT,6X16 | 92002 | 92002-1099 | 2 | ||
| SCREW,PAN HEAD,6X110 | 92009 | 21015-005 | 2 | ||
| NUT-6MM | 92015 | 92015-1078 | 2 | ||
| NUT,6MM | 92015A | 92015-1476 | 2 | ||
| WASHER,THRUST,0.2T | 92022 | 21025-011 | 4 | ||
| WASHER,THRUST,0.8T | 92022A | 92022-1132 | 4 | ||
| SPACER,25X36X3.2 | 92026 | 92026-1025 | 2 | ||
| PIN | 92043 | 92043-132 | 3 | ||
| "0" RING,STARTING MTR | 92055 | 21027-004 | 1 | ||
| "0" RING,STARTER MOTR | 92055A | 92055-1086 | 2 | ||
| GROMMET,CORD | 92071 | 21017-017 | 1 | ||
| DAMPER MAG SWITCH SHK | 92075 | 21064-002 | 1 | ||
| SPRING,COIL | 92081 | 92081-159 | 3 | ||
| ROLLER | 92122 | 92122-006 | 1 | ||
| BOLT,FLANGED,6X25 | 130 | 130G0625 | 2 | ||
| WASHER SPRING 5MM | 461 | 461F0500 | 2 | ||
| CIRCLIP-TYPE-E,12MM | 482 | 482J0200 | 1 |
| CAP,TERMINAL | |
| REF # | 11012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SHAFT,IDLE GEAR | |
| REF # | 13107 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| CLUTCH ASSY,ONEWAY | |
| REF # | 13193 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,STARTER | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,ONEWAY CLUTCH | |
| REF # | 16085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRUSH,CARBON | |
| REF # | 21039 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING-BRUSH | |
| REF # | 21040 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| STARTER-ELECTRIC | |
| REF # | 21163 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| WIRE-LEAD,START MOTOR | |
| REF # | 26011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,MAGNETIC | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GEAR,STARTER IDLE | |
| REF # | 59051 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,SOCKET,8X10 | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X16 | |
| REF # | 92002 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,PAN HEAD,6X110 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT-6MM | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,6MM | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER,THRUST,0.2T | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| WASHER,THRUST,0.8T | |
| REF # | 92022A |
|---|---|
| PART NUMBER | |
| QUANTITY | 4 |
| DESTINATION | |
| REMARKS | |
| SPACER,25X36X3.2 | |
| REF # | 92026 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PIN | |
| REF # | 92043 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| "0" RING,STARTING MTR | |
| REF # | 92055 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| "0" RING,STARTER MOTR | |
| REF # | 92055A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| GROMMET,CORD | |
| REF # | 92071 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| DAMPER MAG SWITCH SHK | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SPRING,COIL | |
| REF # | 92081 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| ROLLER | |
| REF # | 92122 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,6X25 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER SPRING 5MM | |
| REF # | 461 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| CIRCLIP-TYPE-E,12MM | |
| REF # | 482 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
