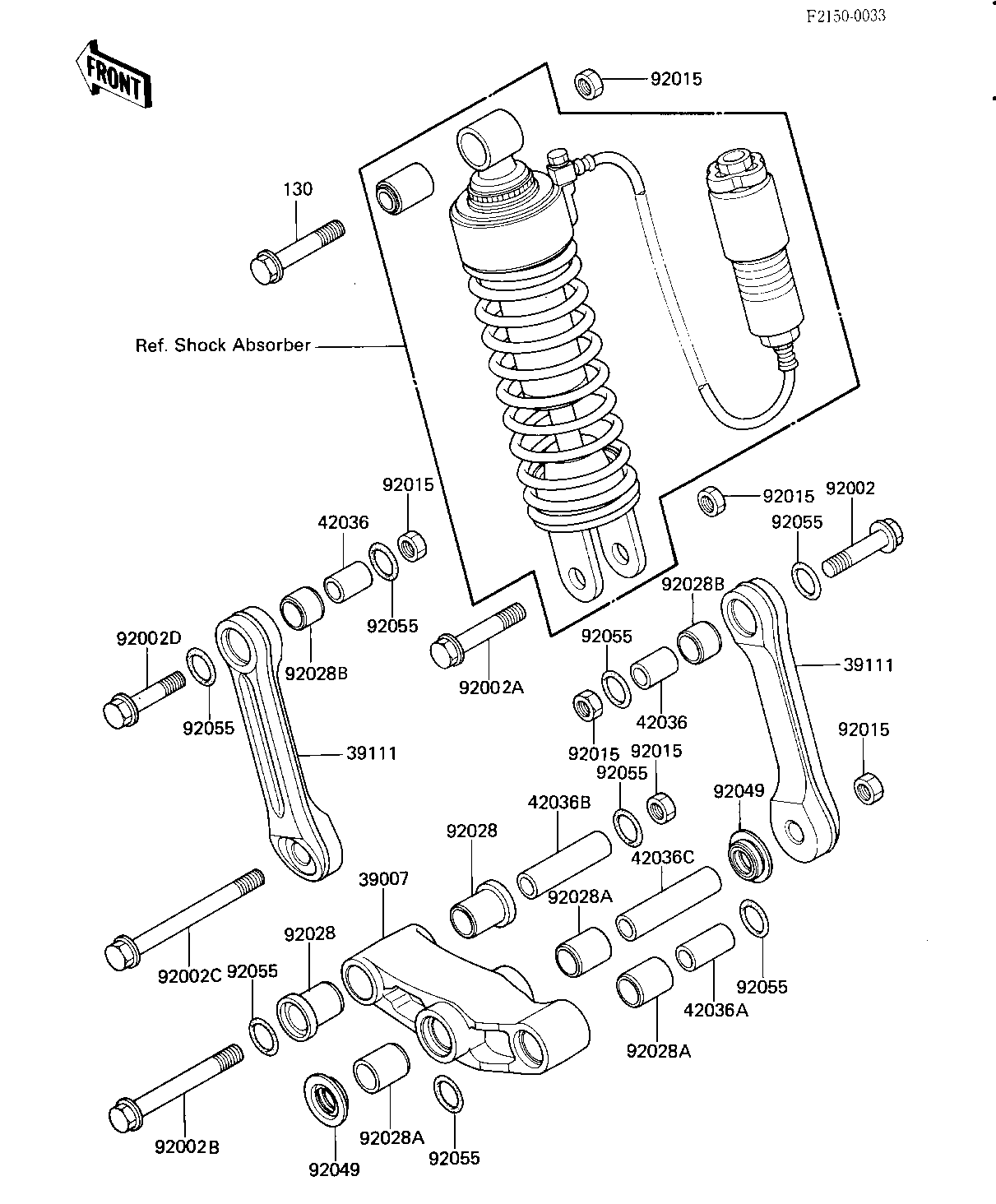

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
ARM-SUSP,UNI TRAK 39007 39007-1024 1
ROD-TIE,UNI TRAK 39111 39111-1021 2
SLEEVE,TIE ROD,UPP 42036 42036-1076 2
SLEEVE,ARM,RR 42036A 42036-1077 1
SLEEVE,ARM,FR 42036B 42036-1078 1
SLEEVE,ARM,CNT 42036C 42036-1079 1
BOLT,12X45 92002 92002-1061 1
BOLT,12X55 92002A 92002-1062 1
BOLT,12X90 92002B 92002-1063 1
BOLT,12X110 92002C 92002-1064 1
BOLT,12X45 92002D 92002-1065 1
NUT,12MM 92015 92015-1375 6
BUSHING,FLANGED 92028 92028-1200 2
BUSHING 92028A 92028-1598 3
BUSHING 92028B 92028-1599 2
SEAL-OIL,ARM,CNT 92049 92049-1109 2
RING-0,19.8X2.2 92055 92055-1215 8
BOLT-FLANGED 130 130G1250 1
