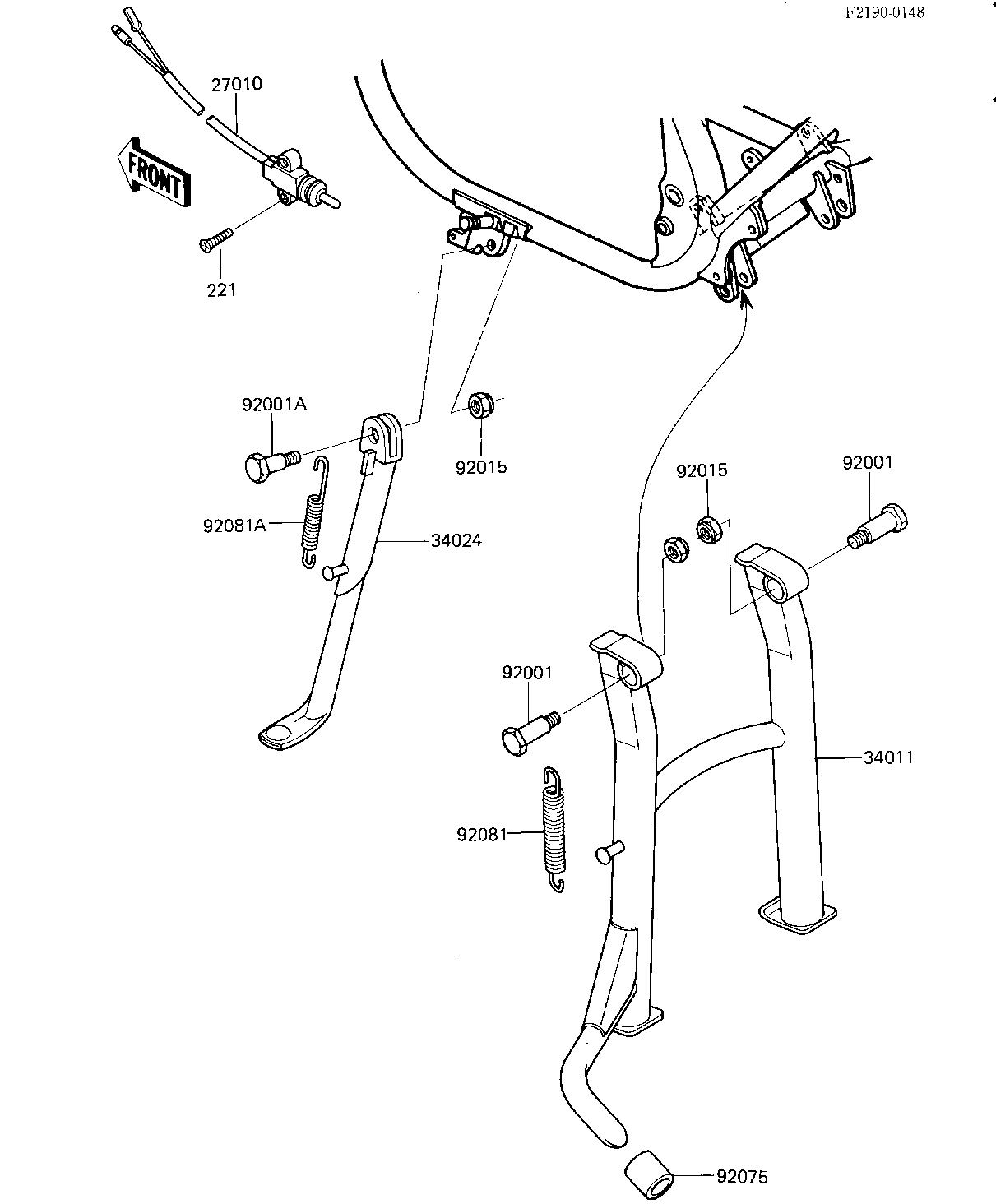

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SWITCH,SIDE STAND 27010 27010-1065 1
STAND-CENTER 34011 34011-1077 1
STAND-SIDE 34024 34024-1111 1
BOLT,MAIN STAND FITTI 92001 92001-1214 2
BOLT,SIDE STAND 92001A 92001-1788 1
NUT,LOCK,10MM,BLACK 92015 92015-1188 3
DAMPER RUBBER,MAIN 92075 92075-1142 1
SPRING,MAIN STAND 92081 92081-1265 1
SPRING,SIDE STAND 92081A 92081-1727 1
SCREW-CSK-CROS 221 221C0520 2
