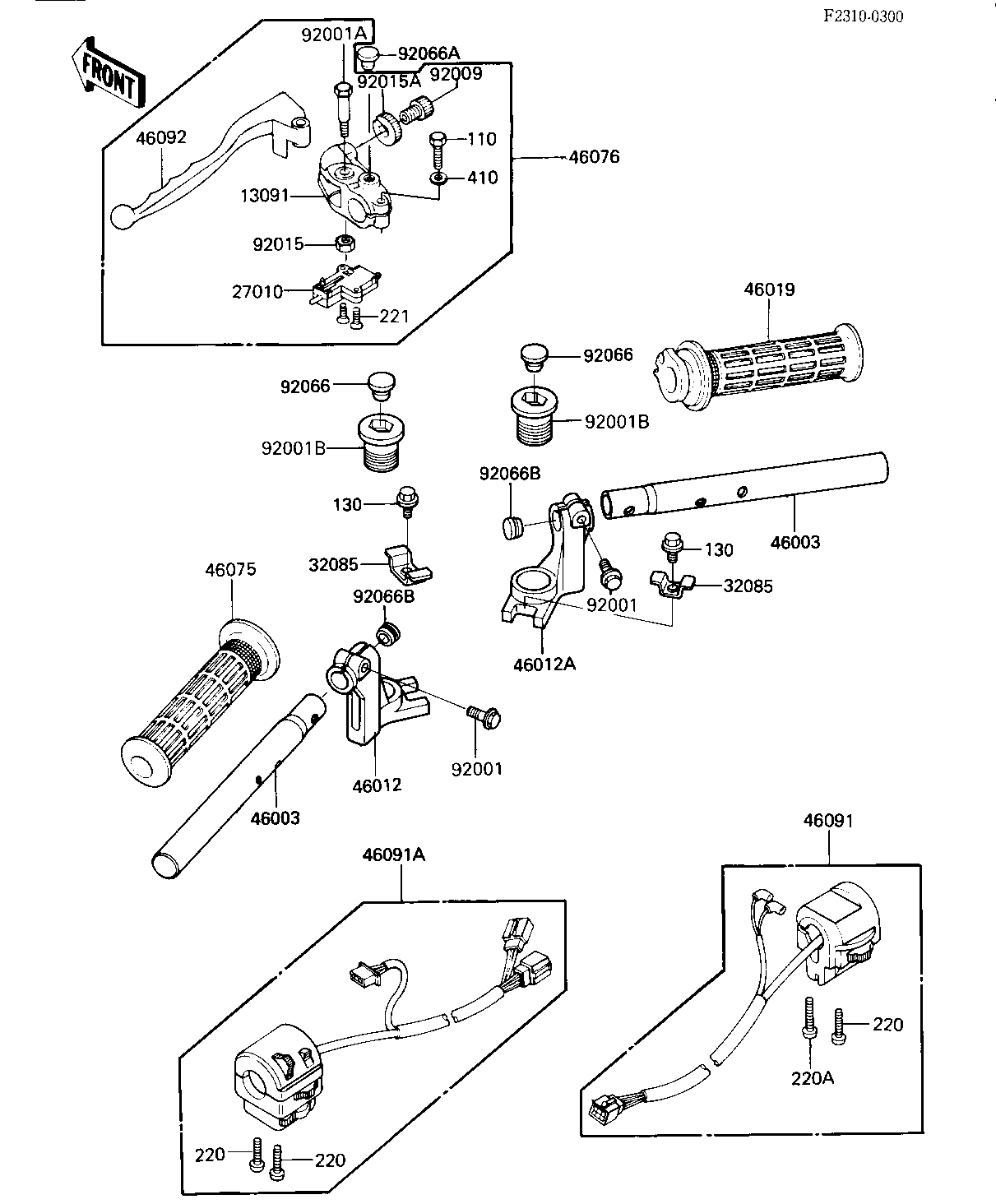

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| HOLDER,CLUTCH LEVER | 13091 | 13091-1272 | 1 | ||
| SWITCH,CLUTCH | 27010 | 27010-1094 | 1 | ||
| STOPPER,HUNDLE HOLDER | 32085 | 32085-1156 | 2 | ||
| HANDLE | 46003 | 46003-1157 | 2 | ||
| HOLDER-HANDLE,LH | 46012 | 46012-1103 | 1 | ||
| HOLDER-HANDLE,RH | 46012A | 46012-1104 | 1 | ||
| GRIP-ASSY,THROTTLE | 46019 | 46019-1015 | 1 | ||
| GRIP,LH | 46075 | 46075-1022 | 1 | ||
| LEVER-ASSY-GRIP,CLUTC | 46076 | 46076-1105 | 1 | ||
| HOUSING-ASSY-CONTROL | 46091 | 46091-1207 | 1 | ||
| HOUSING-ASSY-CONTROL, | 46091A | 46091-1423 | 1 | ||
| LEVER-GRIP,CLUTCH | 46092 | 46092-1103 | 1 | ||
| BOLT,FLANGED,8X28,BLA | 92001 | 92001-1508 | 2 | ||
| BOLT,CLUTCH LEVER,BLA | 92001A | 92001-1548 | 1 | ||
| BOLT,HANDLE HOLDER,BL | 92001B | 92001-1912 | 2 | ||
| SCREW,CABLE ADJUST,8 | 92009 | 92009-1134 | 1 | ||
| NUT,LOCK,6MM,BLACK | 92015 | 92015-1191 | 1 | ||
| NUT,CABLE ADJUST LOCK | 92015A | 92015-1197 | 1 | ||
| PLUG,FRAME | 92066 | 92066-1018 | 2 | ||
| PLUG,9.5X8 | 92066A | 92066-1077 | 1 | ||
| PLUG,HANDLE | 92066B | 92066-1093 | 2 | ||
| BOLT,6X22,BLACK | 110 | 110C0622 | 1 | ||
| BOLT-FLANGED,6X16 | 130 | 130J0616 | 2 | ||
| SCREW-PAN-CROS | 220 | 220B0535 | 3 | ||
| SCREW-PAN-CROS | 220A | 220B0540 | 1 | ||
| SCREW-CSK-CROS | 221 | 221C0316 | 2 | ||
| WASHER PLAIN | 410 | 410F0600 | 1 |
| HOLDER,CLUTCH LEVER | |
| REF # | 13091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SWITCH,CLUTCH | |
| REF # | 27010 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| STOPPER,HUNDLE HOLDER | |
| REF # | 32085 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HANDLE | |
| REF # | 46003 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| HOLDER-HANDLE,LH | |
| REF # | 46012 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOLDER-HANDLE,RH | |
| REF # | 46012A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP-ASSY,THROTTLE | |
| REF # | 46019 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| GRIP,LH | |
| REF # | 46075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-ASSY-GRIP,CLUTC | |
| REF # | 46076 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING-ASSY-CONTROL | |
| REF # | 46091 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| HOUSING-ASSY-CONTROL, | |
| REF # | 46091A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| LEVER-GRIP,CLUTCH | |
| REF # | 46092 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,FLANGED,8X28,BLA | |
| REF # | 92001 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,CLUTCH LEVER,BLA | |
| REF # | 92001A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT,HANDLE HOLDER,BL | |
| REF # | 92001B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,CABLE ADJUST,8 | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,LOCK,6MM,BLACK | |
| REF # | 92015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| NUT,CABLE ADJUST LOCK | |
| REF # | 92015A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,FRAME | |
| REF # | 92066 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| PLUG,9.5X8 | |
| REF # | 92066A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| PLUG,HANDLE | |
| REF # | 92066B |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BOLT,6X22,BLACK | |
| REF # | 110 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-FLANGED,6X16 | |
| REF # | 130 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-CROS | |
| REF # | 220A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW-CSK-CROS | |
| REF # | 221 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| WASHER PLAIN | |
| REF # | 410 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
