Parts Diagrams |

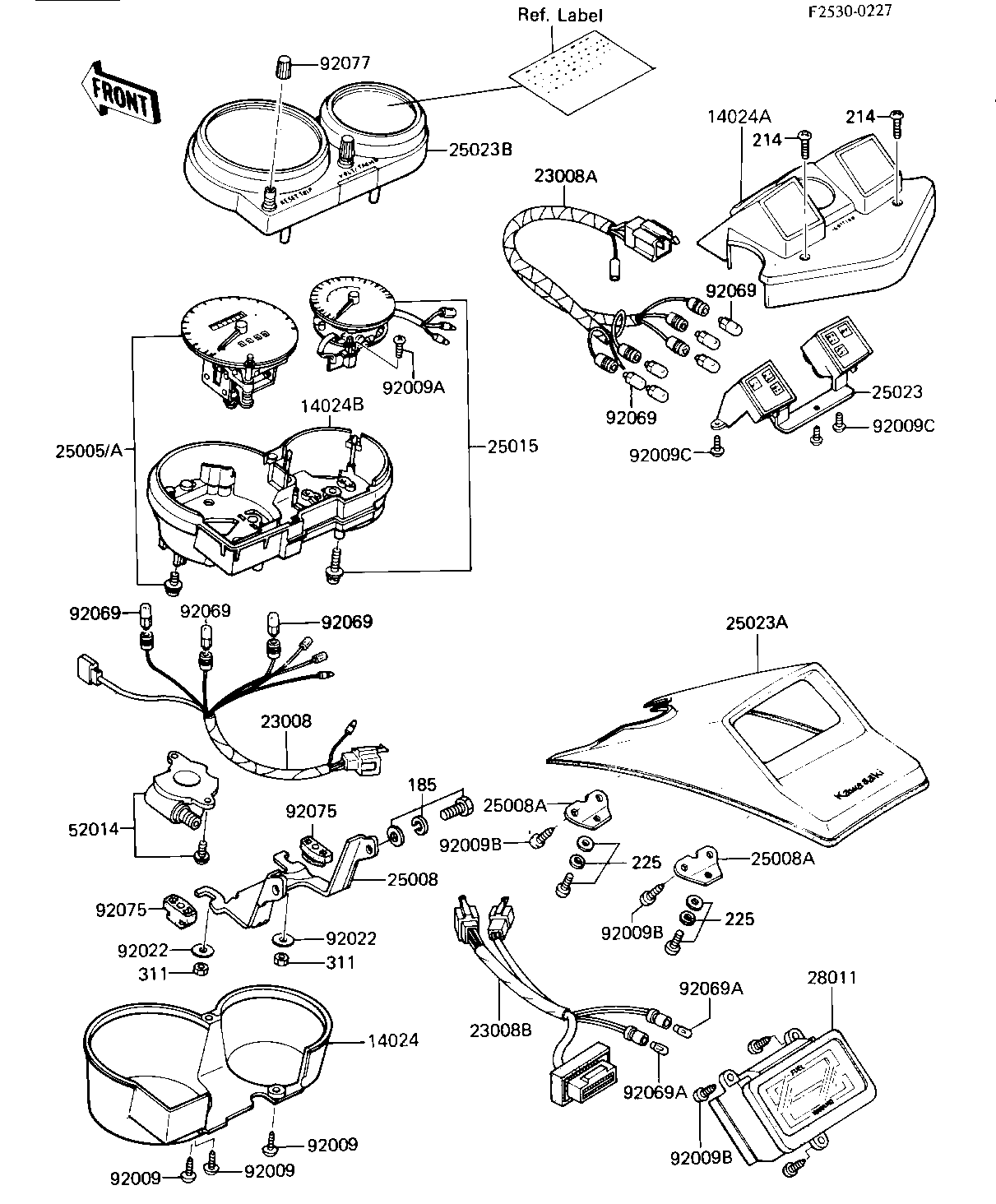

| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| COVER,METER CASE,LWR | 14024 | 14025-1691 | 1 | ||
| COVER,PILOT BOX | 14024A | 14025-1693 | 1 | ||
| COVER,METER HOUSING | 14024B | 14025-1791 | 1 | ||
| SOCKET-ASSY,METER | 23008 | 23008-1188 | 1 | ||
| SOCKET-ASSY,LAMP ASSY | 23008A | 23008-1191 | 1 | ||
| SOCKET-ASSY,FUEL | 23008B | 23008-1201 | 1 | ||
| BRACKET-METER | 25008 | 25008-1060 | 1 | ||
| BRACKET-METER,FUEL TA | 25008A | 25008-1103 | 2 | ||
| TACHOMETER,X1000R/MIN | 25015 | 25015-1213 | 1 | ||
| COVER-METER CASE,LAMP | 25023 | 25023-1057 | 1 | ||
| COVER-METER CASE,FUEL | 25023A | 25023-1102 | 1 | ||
| COVER-METER CASE,UPP | 25023B | 25023-1114 | 1 | ||
| METER,FUEL&WARNING | 28011 | 28011-1042 | 1 | ||
| ELBOW,SPEEDOMETER GEA | 52014 | 52014-1006 | 1 | ||
| SCREW,4X16,BLACK | 92009 | 92009-1158 | 3 | ||
| SCREW,2X6,BLACK | 92009A | 92009-1172 | 2 | ||
| SCREW,TAPPING,4X12 | 92009B | 92009-1254 | 7 | ||
| SCREW,TAPPING,3X12 | 92009C | 92009-1255 | 3 | ||
| WASHER,PLAIN,6MM | 92022 | 92022-263 | 2 | ||
| BULB,12V3W T-7 | 92069 | 92069-1020 | 9 | ||
| BULB,12V1.4W T-5 | 92069A | 92069-1051 | 2 | ||
| DAMPER,METER BRACKET | 92075 | 92075-1495 | 2 | ||
| KNOB,RESET TRIP | 92077 | 92077-1017 | 1 | ||
| BOLT-UPSET-WSP-SMALL | 185 | 185C0816 | 2 | ||
| SCREW-PAN+- | 214 | 214C0430 | 2 | ||
| SCREW-PAN-WSP-CROS | 225 | 225B0514 | 2 | ||
| NUT,5MM | 311 | 311B0500 | 2 |
| COVER,METER CASE,LWR | |
| REF # | 14024 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,PILOT BOX | |
| REF # | 14024A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER,METER HOUSING | |
| REF # | 14024B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,METER | |
| REF # | 23008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,LAMP ASSY | |
| REF # | 23008A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SOCKET-ASSY,FUEL | |
| REF # | 23008B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-METER | |
| REF # | 25008 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BRACKET-METER,FUEL TA | |
| REF # | 25008A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| TACHOMETER,X1000R/MIN | |
| REF # | 25015 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-METER CASE,LAMP | |
| REF # | 25023 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-METER CASE,FUEL | |
| REF # | 25023A |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| COVER-METER CASE,UPP | |
| REF # | 25023B |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| METER,FUEL&WARNING | |
| REF # | 28011 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| ELBOW,SPEEDOMETER GEA | |
| REF # | 52014 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| SCREW,4X16,BLACK | |
| REF # | 92009 |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| SCREW,2X6,BLACK | |
| REF # | 92009A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,4X12 | |
| REF # | 92009B |
|---|---|
| PART NUMBER | |
| QUANTITY | 7 |
| DESTINATION | |
| REMARKS | |
| SCREW,TAPPING,3X12 | |
| REF # | 92009C |
|---|---|
| PART NUMBER | |
| QUANTITY | 3 |
| DESTINATION | |
| REMARKS | |
| WASHER,PLAIN,6MM | |
| REF # | 92022 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| BULB,12V3W T-7 | |
| REF # | 92069 |
|---|---|
| PART NUMBER | |
| QUANTITY | 9 |
| DESTINATION | |
| REMARKS | |
| BULB,12V1.4W T-5 | |
| REF # | 92069A |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| DAMPER,METER BRACKET | |
| REF # | 92075 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| KNOB,RESET TRIP | |
| REF # | 92077 |
|---|---|
| PART NUMBER | |
| QUANTITY | 1 |
| DESTINATION | |
| REMARKS | |
| BOLT-UPSET-WSP-SMALL | |
| REF # | 185 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN+- | |
| REF # | 214 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| SCREW-PAN-WSP-CROS | |
| REF # | 225 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
| NUT,5MM | |
| REF # | 311 |
|---|---|
| PART NUMBER | |
| QUANTITY | 2 |
| DESTINATION | |
| REMARKS | |
