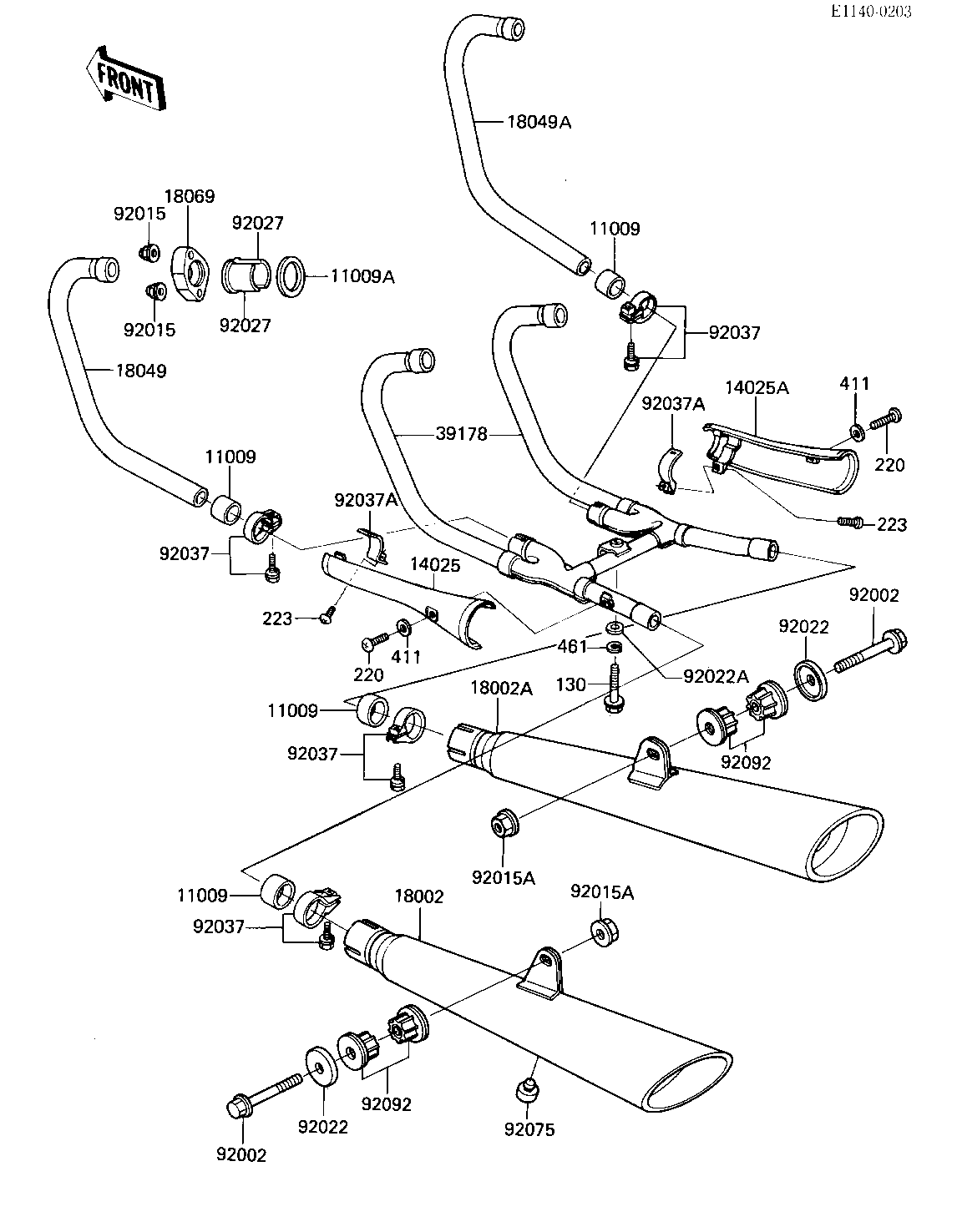

1984 LTD Shaft - MUFFLERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE C 11009 11009-1667 4
GASKET,EXHAUST PIPE H 11009A 11009-1866 4
COVER,MUFFLER,LH 14025 14025-1840 1
COVER,MUFFLER,RH 14025A 14025-1841 1
BODY-COMP-MUFFLER,LH 18002 18002-1524 1
BODY-COMP-MUFFLER,RH 18002A 18002-1525 1
PIPE-EXHAUST,#2 18049 18049-1162 1
PIPE-EXHAUST,#3 18049A 18049-1163 1
HOLDER-EXHAUST PIPE 18069 18069-1030 4
MANIFOLD-COMP-EXHAUST 39178 39178-1056 1
BOLT,10X55 92002 92002-1127 2
NUT,8MM 92015 92015-1398 8
NUT,LOCK,10MM 92015A 92019-021 2
WASHER,CUP TYPE 92022 92022-1270 2
WASHER-PLN,10X22X3.2 92022A 92022-176 1
COLLAR,EXHAUST PIPE 92027 92027-1142 8
CLAMP,42MM 92037 92037-1349 4
CLAMP,MUFFLER COVER,C 92037A 92037-1373 2
DAMPER RUBBER,MAIN ST 92075 92075-1002 1
BUSHING-RUBBER 92092 92092-1013 4
BOLT-FLANGED 130 130Y0850 1
SCREW PAN HEAD 6X8 220 220E0608 2
SCREW-PAN-WS-CROS 223 223X0616 2
WASHER-PLAIN,6MM 411 411D0600 2
WASHER-SPRING 461 461L0800 1
