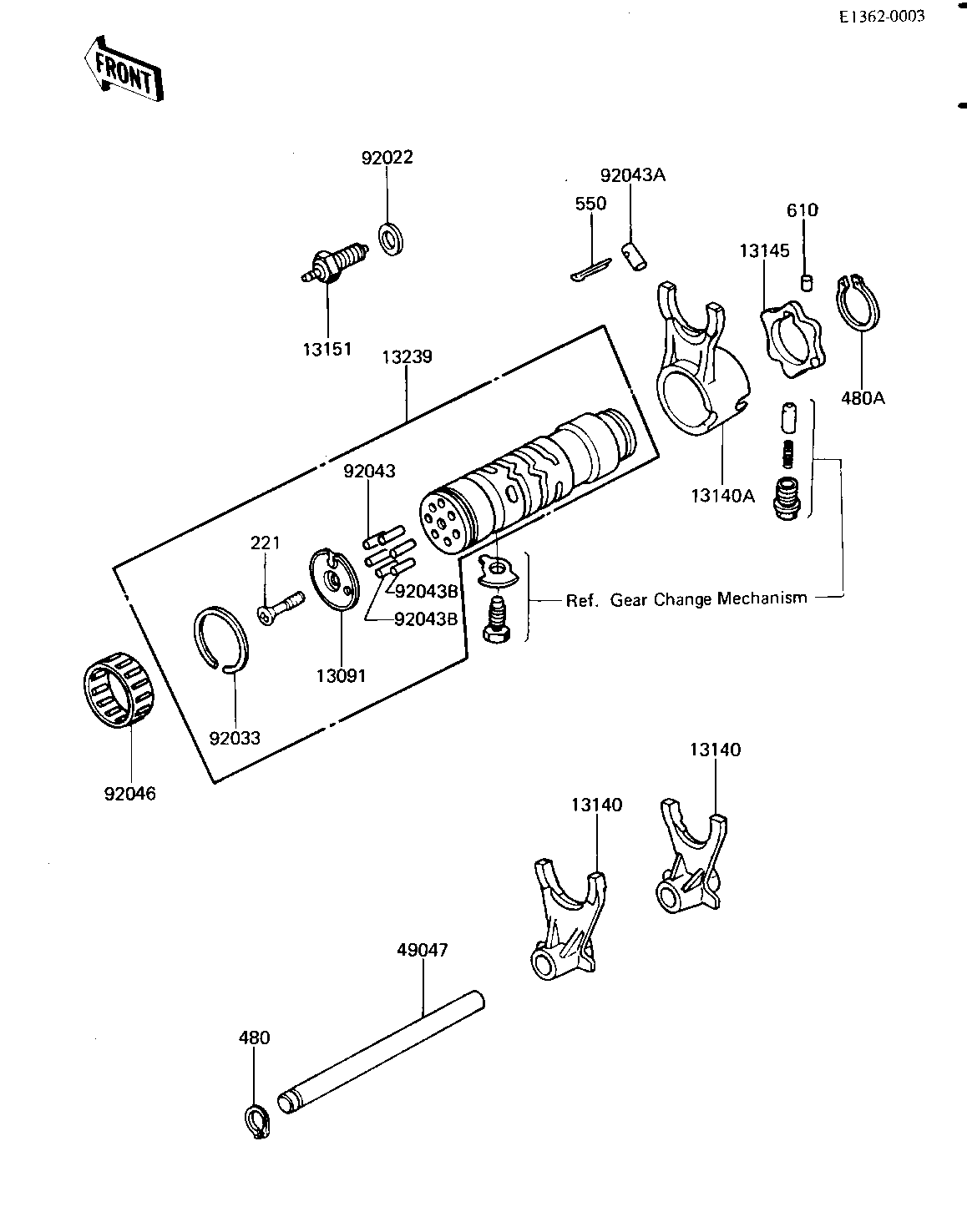

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER,CHANGE DRUM PI 13091 13091-1104 1
SHIFT FORK,LOW,2&3RD 13140 13140-1008 2
SHIFT FORK,4TH & TOP 13140 13140-1009 1
CAM-CHANGE DRUM 13145 13145-1058 1
SWITCH,NEUTRAL 13151 13151-1007 1
DRUM-ASSY-CHANGE 13239 13239-1069 1
ROD-SHIFT 49047 49047-5003 1
GASKET CHECK VALVE 92022 92065-058 1
CIRCLIP,37MM 92033 92033-035 1
PIN GEAR CHANGE DRUM 92043 92042-014 1
DOWEL PIN,8X18 92043A 92042-021 1
PIN,GEAR CHNGE DRUM 92043B 92042-030 5
BRG,NEDL,37BTM4312 92046 92046-051 1
SCREW CNTSNK HD 6X20 221 221B0620 1
CIRCLIP 12MM 480 480J1200 1
CIRCLIP,30MM 480A 480J3000 1
PIN COTTER 3.0X20 550 550D3020 1
PIN-DOWEL,4X6 610 610A0406 1
