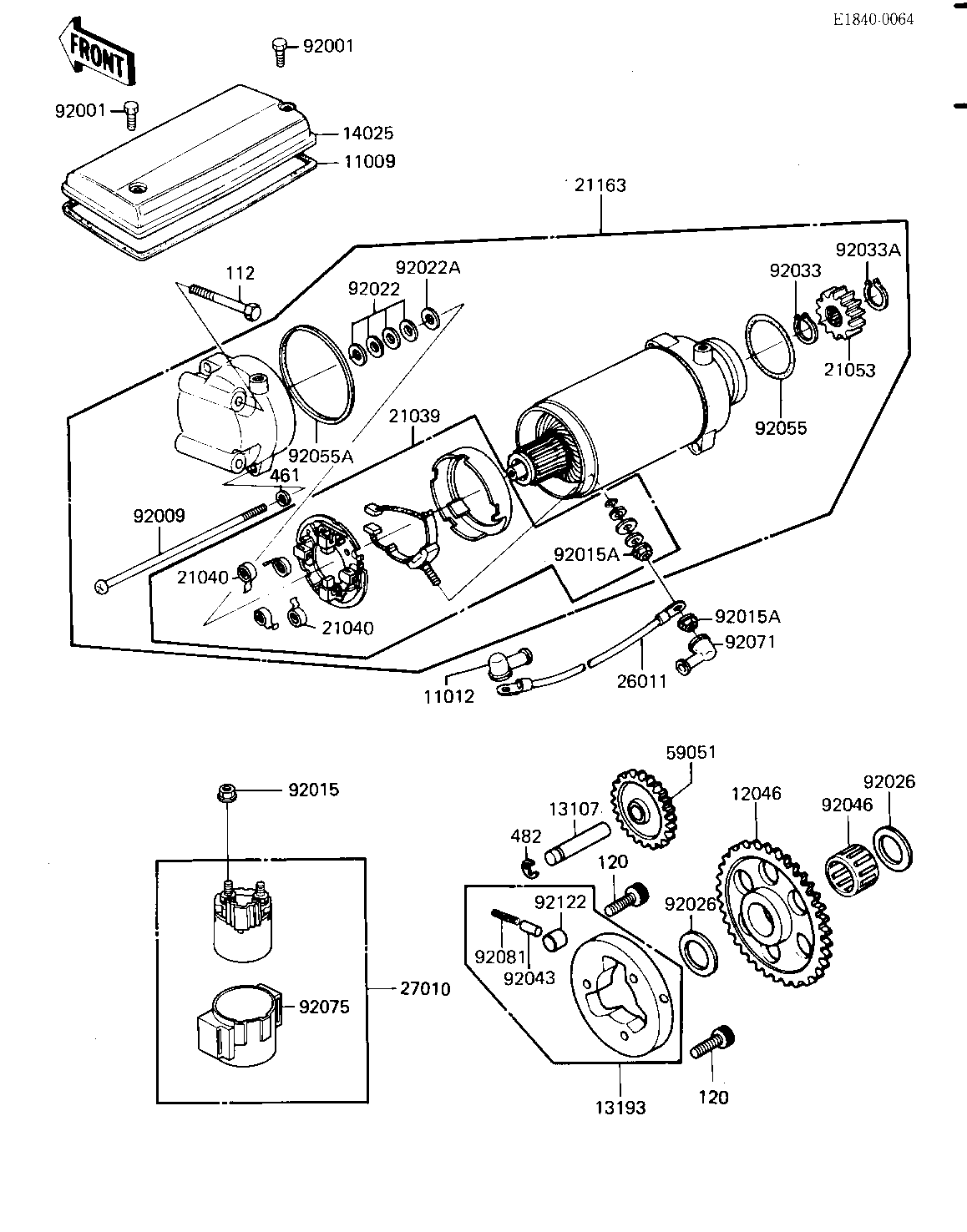

1984 LTD Shaft - STARTER MOTOR/STARTER CLUTCH

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,STARTER COVER 11009 21166-003 1
CAP,TERMINAL 11012 11012-1354 1
SPROCKET,STARTER,58T 12046 12046-1032 1
SHAFT,IDLE GEAR 13107 21143-003 1
CLUTCH-ASSY-ONEWAY 13193 13193-1012 1
COVER,STARTER 14025 21165-003 1
BRUSH,CARBON 21039 21039-1053 1
SPRING-BRUSH 21040 21040-1003 4
PINION,STARTER 21053 21053-004 1
STARTER-ELECTRIC 21163 21163-1053 1
WIRE-LEAD,STARTER MTR 26011 26011-1251 1
SWITCH,MAGNETIC 27010 27010-1235 1
GEAR,IDLE,29T 59051 21167-004 1
BOLT,6X10 92001 92001-1151 2
SCREW,PAN HEAD,6X130 92009 21099-006 2
NUT-6MM 92015 92015-1078 2
NUT-6MM 92015A 92015-1078 2
WASHER,THRUST,0.2T 92022 21025-011 4
WASHER,THRUST,0.8T 92022A 92022-1132 1
SPACER,25X36X3.2 92026 92026-1025 2
CIRCLIP 92033 92033-034 1
CIRCLIP,13M/M 92033A 92033-037 1
PIN 92043 92043-087 3
BRG,NEEDLE,K253017 92046 92046-056 1
"0" RING,40M/M 92055 21027-008 1
"0" RING,STARTER MOTR 92055A 92055-1086 1
GROMMET,CORD 92071 21017-017 1
DAMPER MAG SWITCH SHK 92075 21064-002 1
SPRING 92081 92081-110 3
ROLLER 92122 92122-004 3
BOLT-UPSET 112 112G0660 2
BOLT,SOCKET,8X12 120 120P0812 3
WASHER SPRING 6MM 461 461F0600 2
CIRCLIP 12MM 482 482K0200 1
