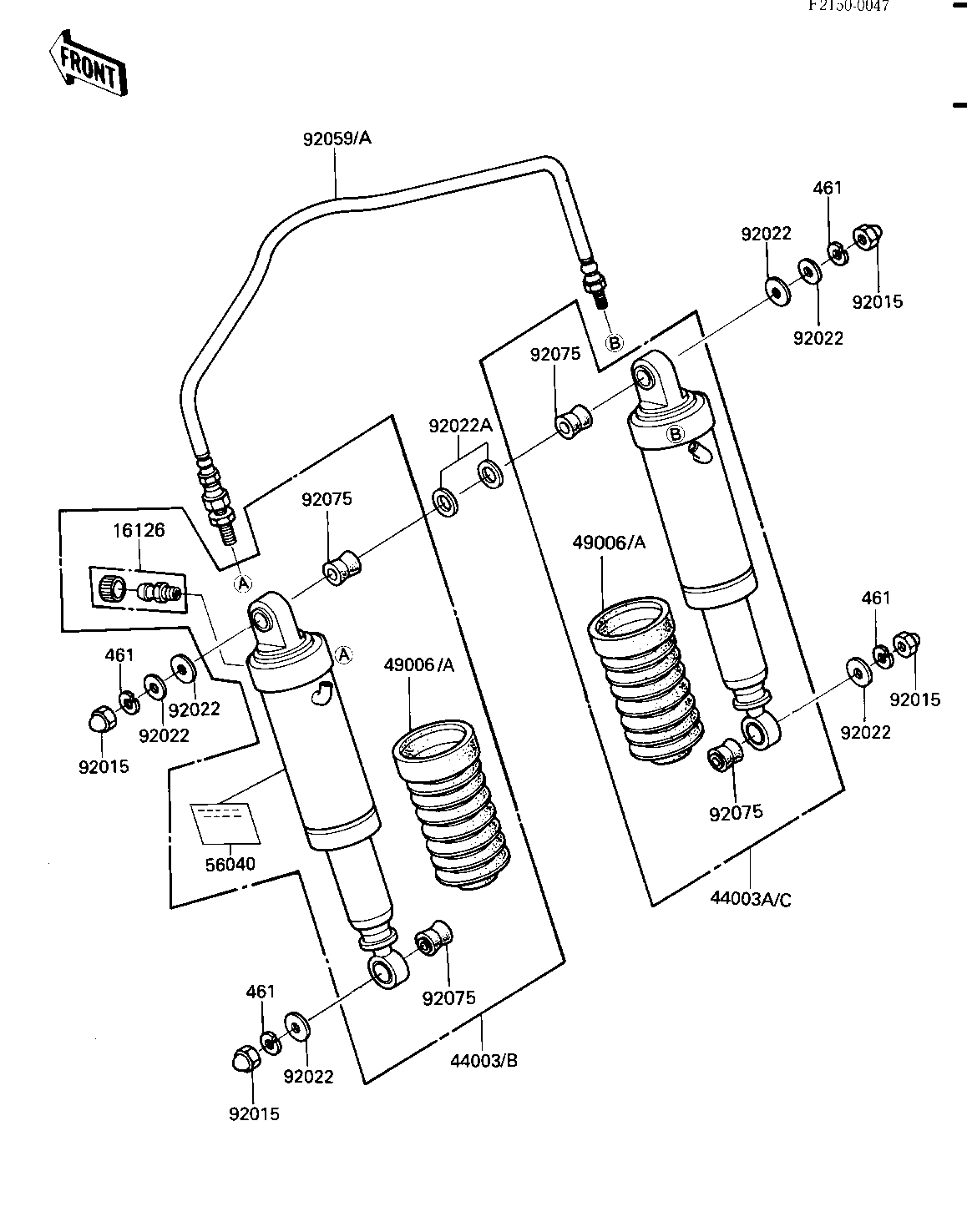

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE AIR 16126 16126-1052 1
DAMPER-ASSY,REARSHOCK 44003 44003-1543 1
DAMPER-ASSY,REARSHOCK 44003A 44003-1544 1
BOOT,SHOCKABSORBER 49006 49006-1168 2 ( WHN EXH USE 49006-1092 )
LABEL-WARNING,SHOCKAB 56040 56040-1117 1
NUT,10MM 92015 92015-1360 4
WASHER,10.5X30X2.3,BL 92022 92022-1302 6
WASHER PLAIN 14MM 92022A 410B1400 2
TUBE,SHOCKABSORBER 92059 92059-1484 1
BUSHING,SHOCK ABSORBE 92075 92075-1141 4
WASHER-SPRING,10MM 461 461K1000 4
