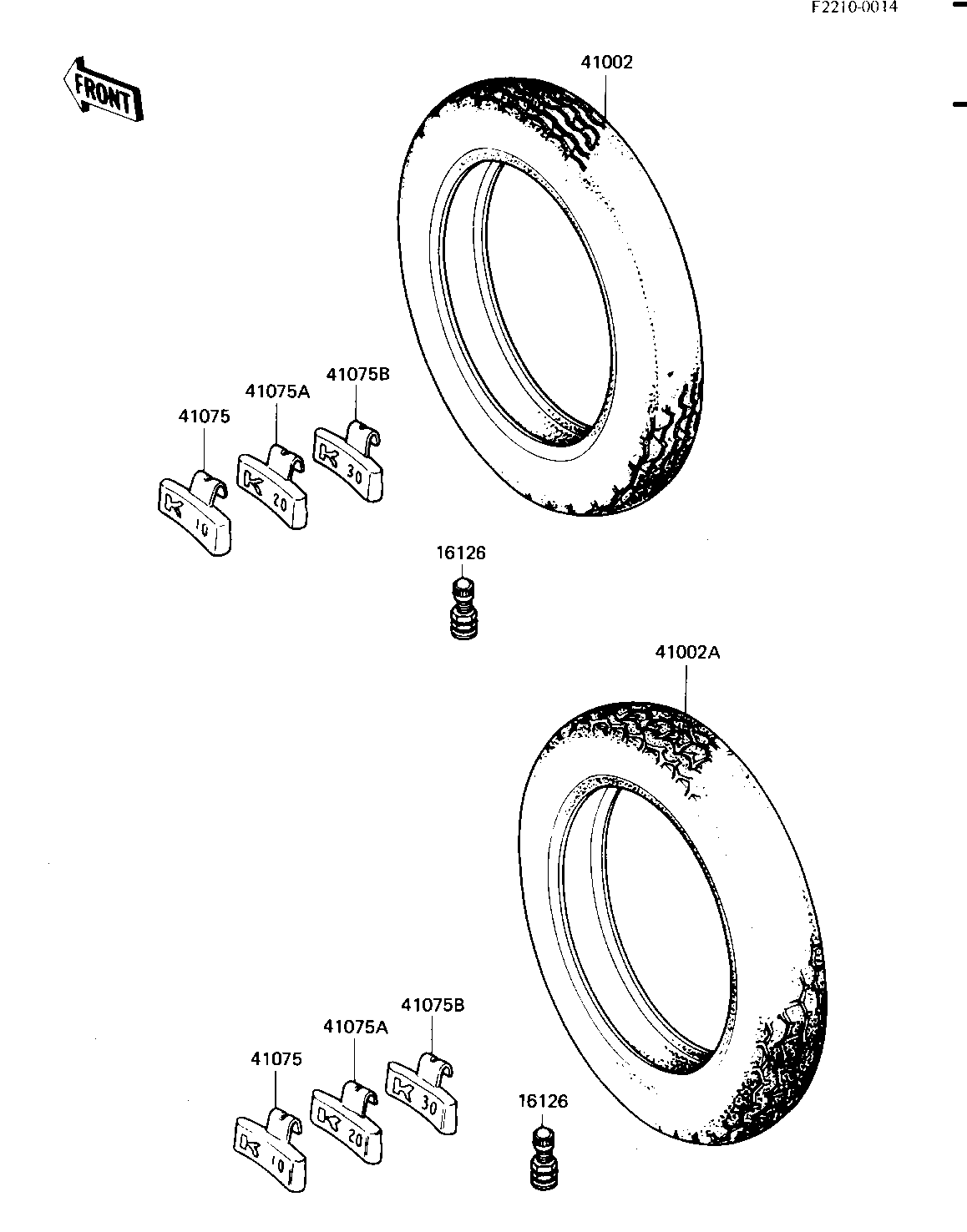

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
VALVE 16126 16126-1136 2
TIRE 110/90-18 G515 F 41002 41002-1473 1
TIRE 130/90-16 G508 R 41002A 41002-1474 1
BALANCER-WHEEL,10G 41075 41075-1014 AR
BALANCER-WHEEL,20G 41075A 41075-1015 AR
BALANCER-WHEEL,30G 41075B 41075-1016 AR
