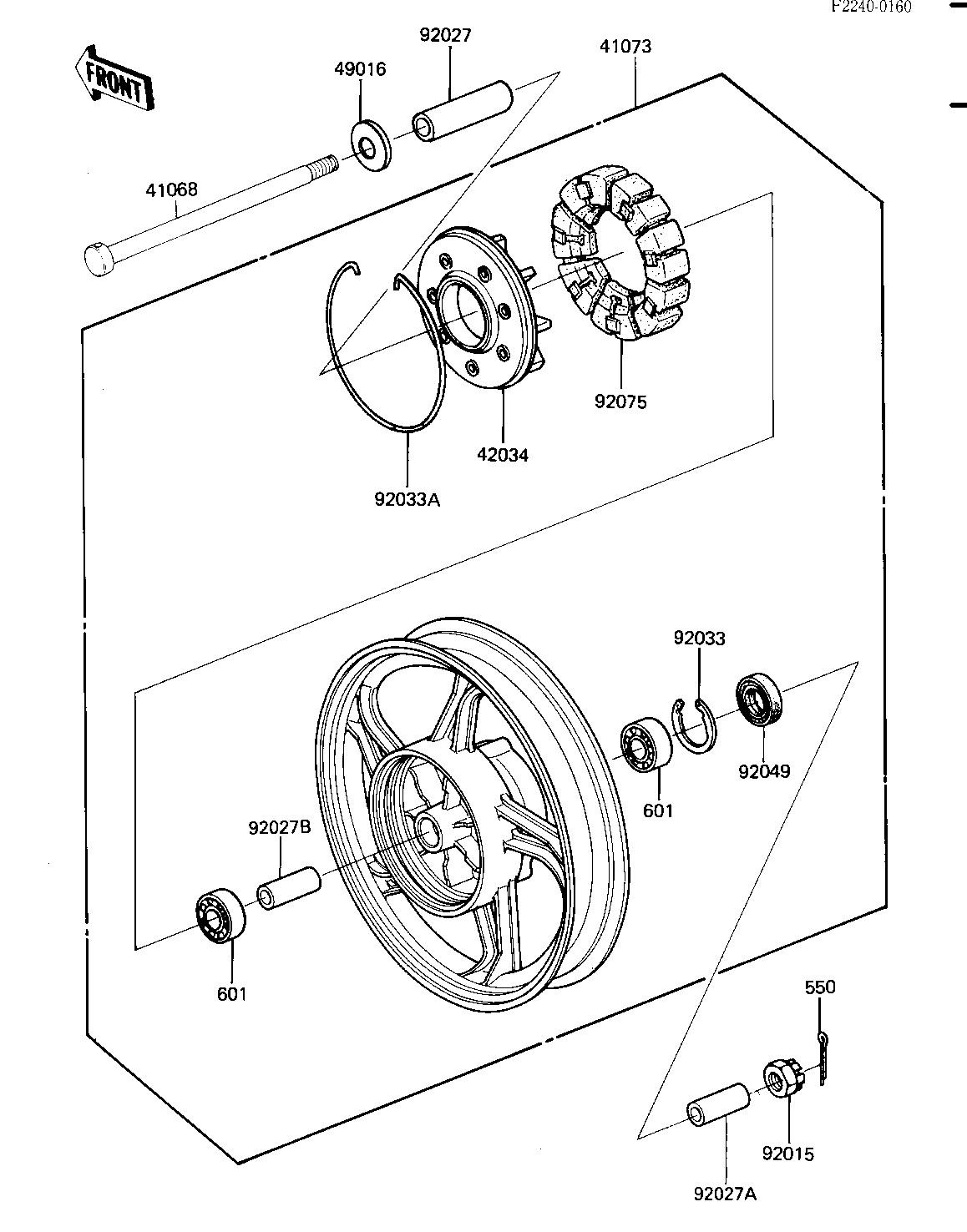

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
AXLE,RR 41068 41068-1086 1
WHEEL-ASSY,RR,M.GRAY 41073 41073-1225-J9 1
COUPLING,RR HUB 42034 42034-1029 1
COVER-SEAL 49016 49016-1038 1
NUT CASTLE,16MM 92015 92015-055 1
COLLAR,17.2X25X79 92027 92027-1415 1
COLLAR,17X28X32 92027A 92027-1569 1
COLLAR,17.2X25X60 92027B 92027-1750 1
CIRCLIP,47M/M 92033 92033-1042 1
RING-SNAP,194MM 92033A 92033-1075 1
DAMPER,RR HUB SHOCK 92049 92075-1372 1
DAMPER,RR HUB SHOCK 92075 92075-1372 1
PIN-COTTER,4.0X35 550 550D4035 1
UNAVAILABLE IN PRICE BOOK 601 601B63032 2
