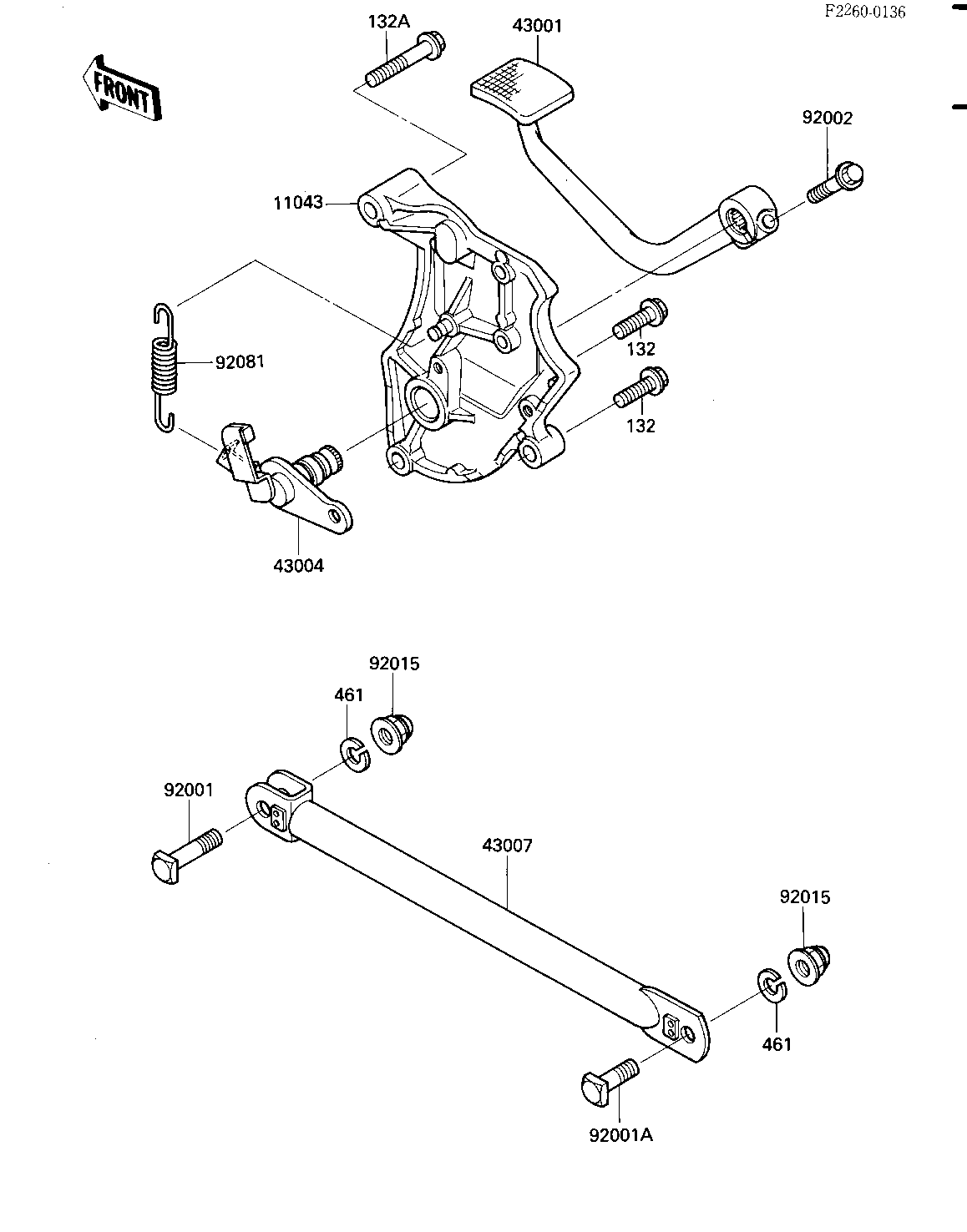

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
UNAVAILABLE IN PRICE BOOK 11063 11063-1770 1
LEVER-BRAKE,PEDAL 43001 43001-1168 1
SHAFT-BRAKE 43004 43004-1107 1
ROD-TORQUE 43007 43007-1105 1
BOLT,10X37 92001 92001-1646 1
BOLT,10X27 92001A 92001-1891 1
BOLT,FLANGED,8X25 92002 92002-1201 1
NUT,LOCK,10MM,BLACK 92015 92015-1189 2
SPRING,STEP RETURN 92081 92081-1590 1
BOLT-FLANGED-SMALL 132 132J0825 2
BOLT-FLANGED-SMALL 132A 132J0845 1
WASHER-SPRING,10MM 461 461K1000 2
