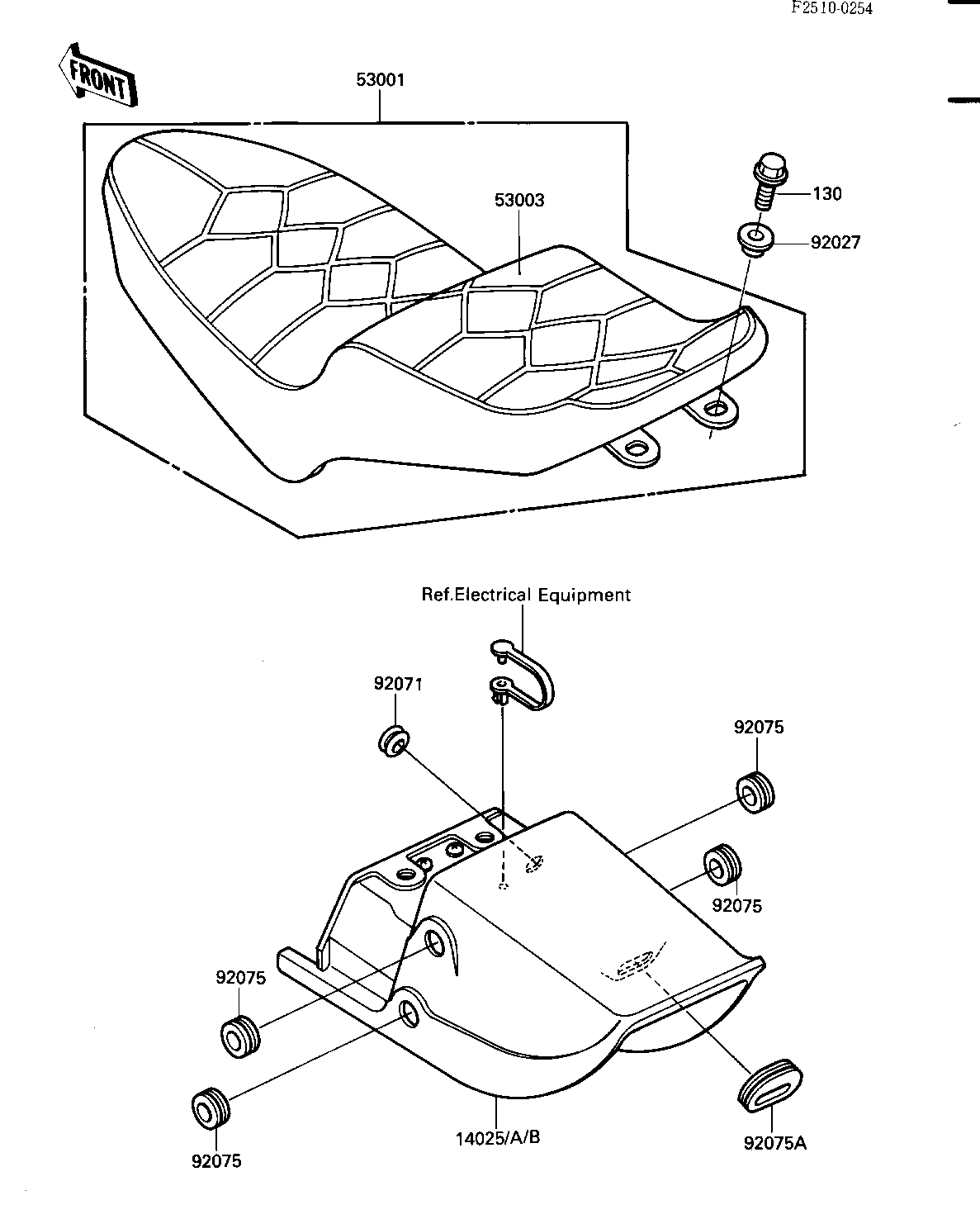

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER,SEAT,EBONY 14025 14025-1837-H8 1
COVER,SEAT,L.C.RED 14025A 14025-1837-L2 1
SEAT-ASSY,DUAL 53001 53001-1378 1
LEATHER,SEAT 53003 53003-1112 1
COLLAR 92027 92027-252 2
GROMMET 92071 92071-024 1
DAMPER RUBBER 92075 92075-104 4
DAMPER,AIR FILTER 92075A 92075-1513 1
BOLT-FLANGED,6X16 130 130B0616 2
