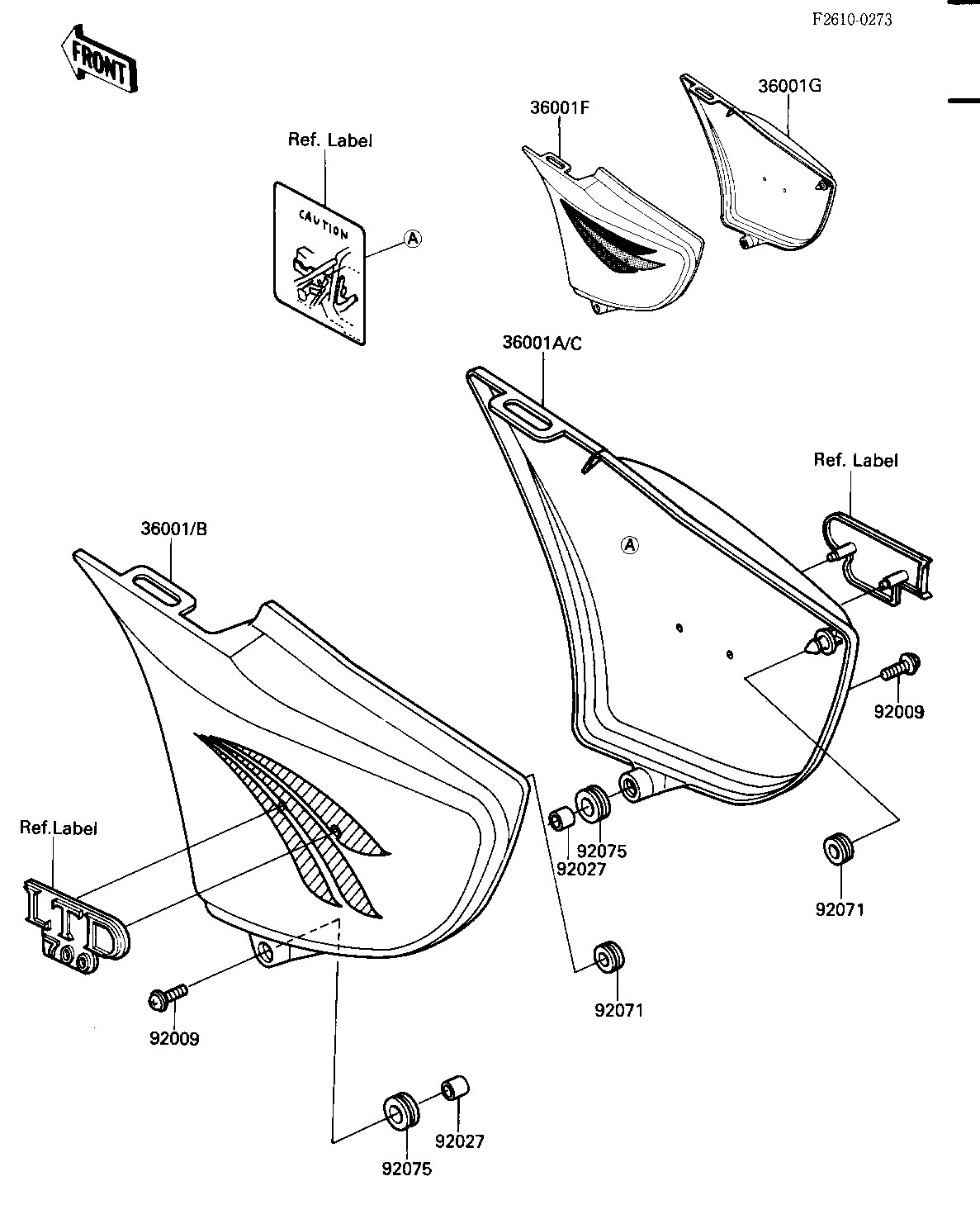

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
COVER-SIDE,LH,L.C.RED 36001 36001-5404-L2 1
COVER-SIDE,RH,L.C.RED 36001A 36001-5405-L2 1
COVER-SIDE,LH,EBONY 36001B 36001-5408-H8 1
COVER-SIDE,RH,EBONY 36001C 36001-5409-H8 1
SCREW,6X20,BLACK 92009 92009-1251 2
COLLAR,REAR FENDER 92027 92027-162 2
GROMMET 92071 92071-056 2
RUBBER,FENDER COVER 92075 92075-174 2
