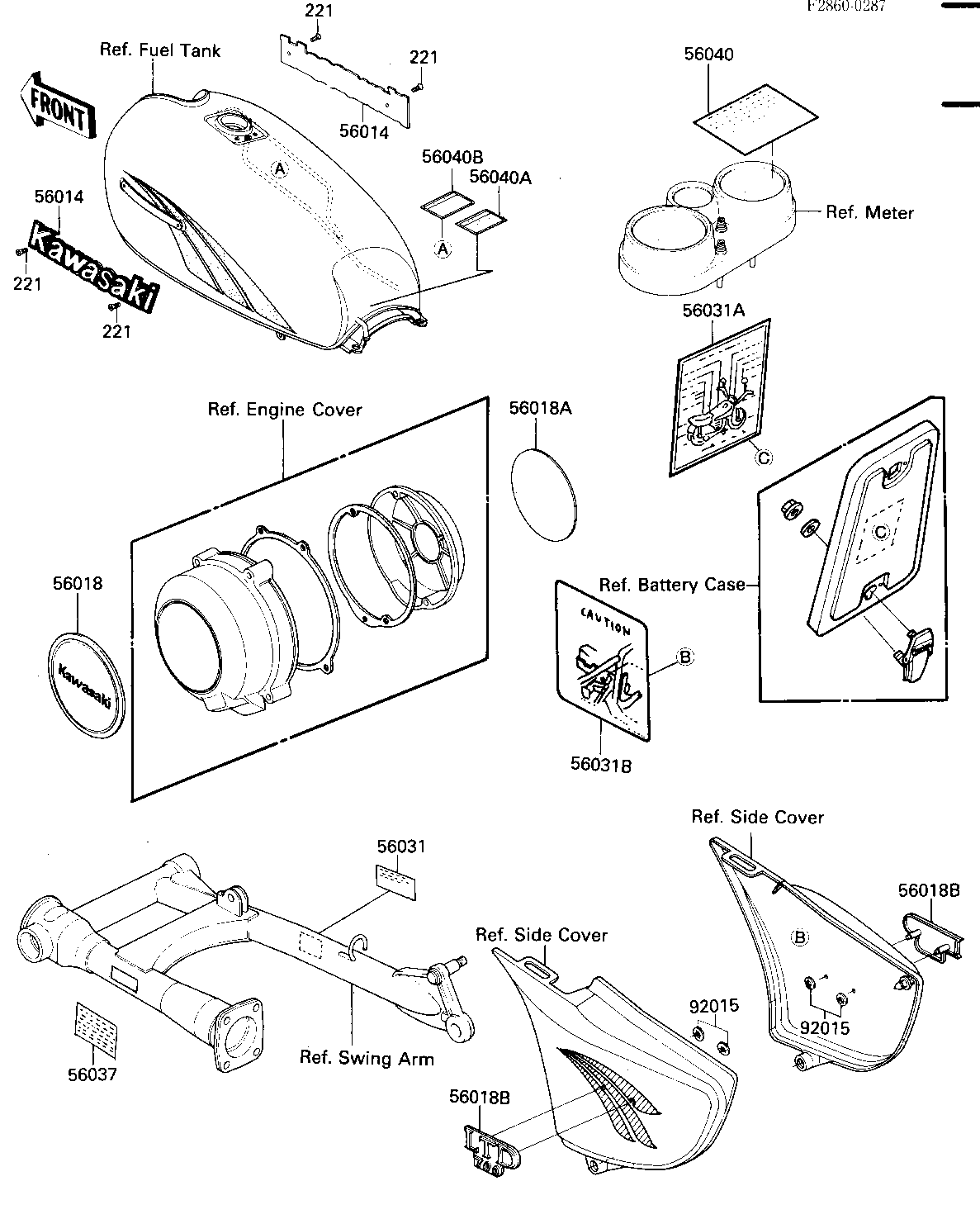

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
EMBLEM,FUEL TANK,"KAW 56014 56014-1062 2
MARK,GENERATOR COVER 56018 56018-1430 1
MARK,PULSING COIL COV 56018A 56018-1432 1
MARK,SIDE COVER,"LTD7 56018B 56018-1495 2
LABEL,OIL&OIL FILTER 56031 56031-1124 1
LABEL,DAILY SAFETY 56031A 56031-1215 1
LABEL-MANUAL,BATTERY 56031B 56031-1347 1
LABEL,TIRE & LOAD 56037 56037-1278 1
LABEL,BRAKE-IN 56040 56040-1007 1
LABEL,AIR INTAKE 56040A 56040-1014 1
LABEL-WARNING,FUEL TK 56040B 56040-1121 1 CA
NUT,LOCK,3MM 92015 92018-005 4
SCREW-CSK-CROS 221 221C0306 4
