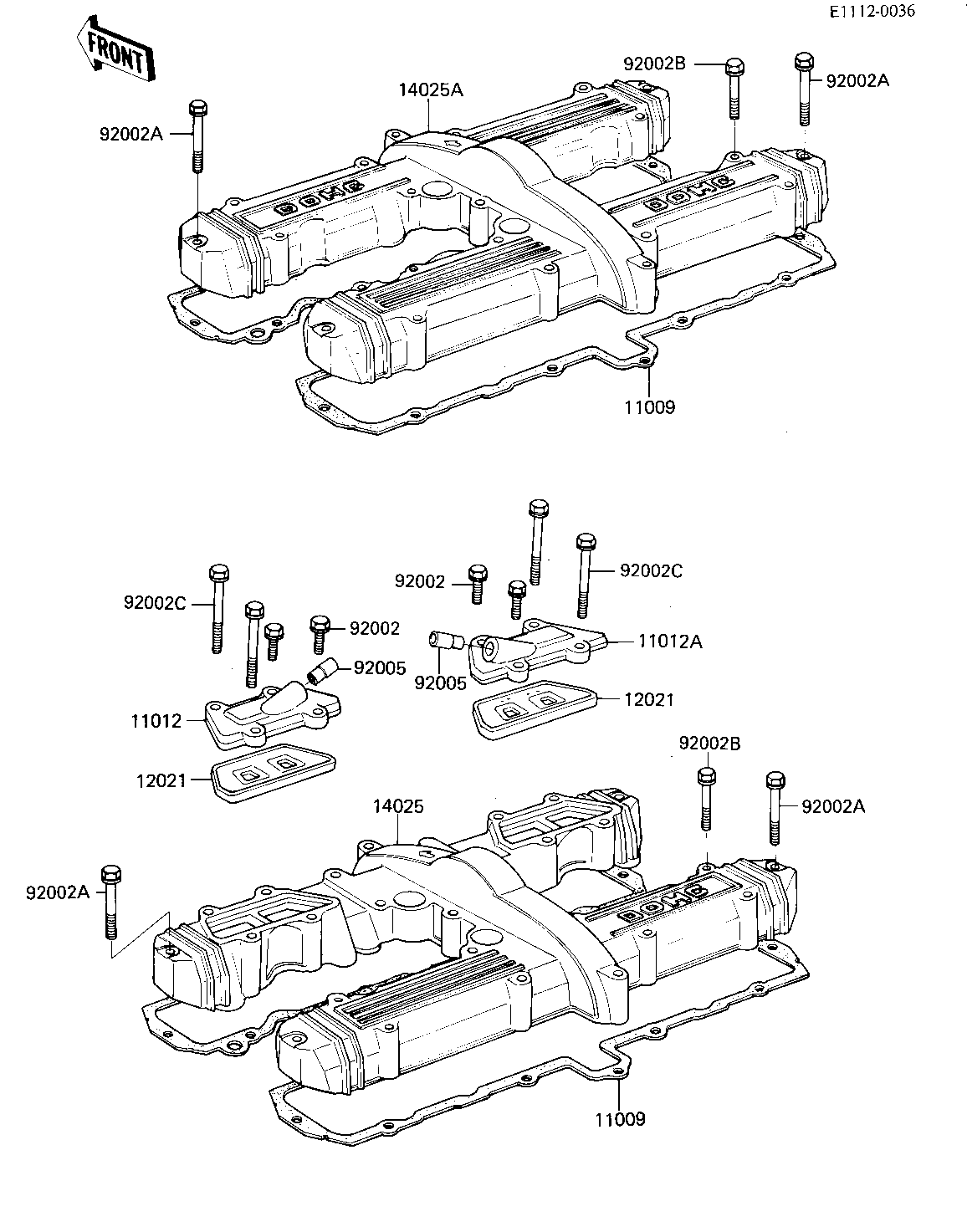

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CYLINDER HEAD 11009 11009-1274 1
CAP,REED VALVE,LH,BLA 11012 11012-1226 1 CA,US
CAP,REED VALVE,RH,BLA 11012A 11012-1227 1 CA,US
VALVE ASSY REED 12021 12021-1003 2 CA,US
COVER,CYLINDER HEAD,B 14025 14025-1432 1 CA,US
COVER,CYLINDER HEAD,B 14025A 14025-1433 1 CN
BOLT,6X20 92002 92001-1947 4 CA,US
BOLT,6X45 92002A 92002-1069 4
BOLT,6X40 92002B 92002-1080 16 CA,US
BOLT,6X40 92002B 92002-1080 20 CA,US
BOLT,6X65 92002C 92002-1140 4 CA,US
FITTING, REED VALVE 92005 92005-1006 2 CA,US
