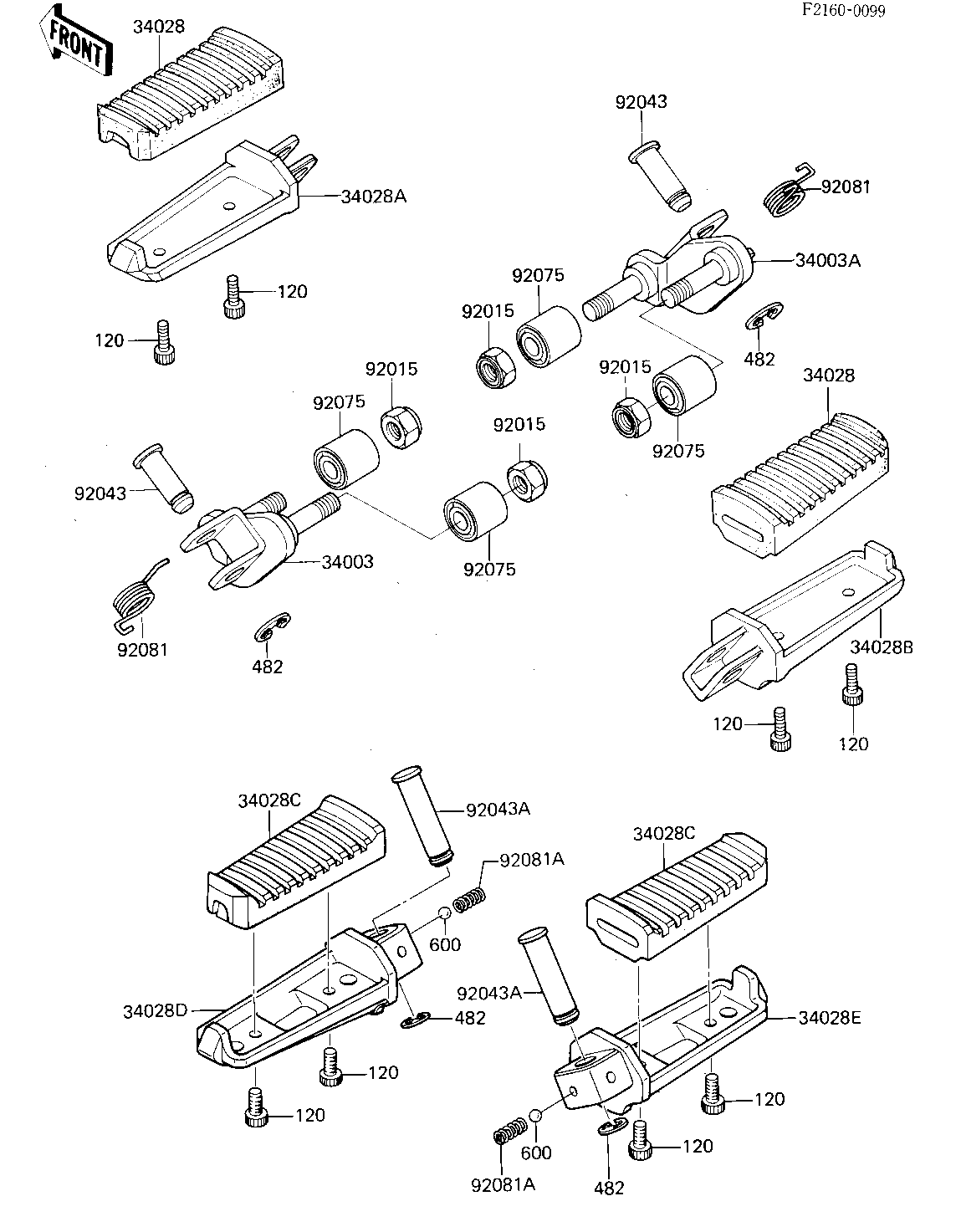

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HOLDER-STEP,FR,LH 34003 34003-1162 1
HOLDER-STEP,FR,RH 34003A 34003-1163 1
STEP,FR,RUBBER 34028 34028-1057 2
STEP,FR,LH 34028A 34028-1058 1
STEP,FR,RH 34028B 34028-1059 1
STEP,RR,RUBBER 34028C 34028-1060 2
STEP,RR,LH 34028D 34028-1061 1
STEP,RR,RH 34028E 34028-1062 1
NUT,LOCK,10MM 92015 92019-021 4
PIN,12X37 92043 92043-1144 2
PIN,12X42.5 92043A 92043-1145 2
DAMPER,STEP HOLDER 92075 92075-1411 4
SPRING,STEP RETURN,RH 92081 92144-1568 2
SPRING,COIL,STEP,RR 92081A 92081-1588 2
BOLT-SOCKET 120 120Z0614 8
CIR CLIP 482 482K0100 4
BALL STEEL 1/4' 600 600A0800 2
