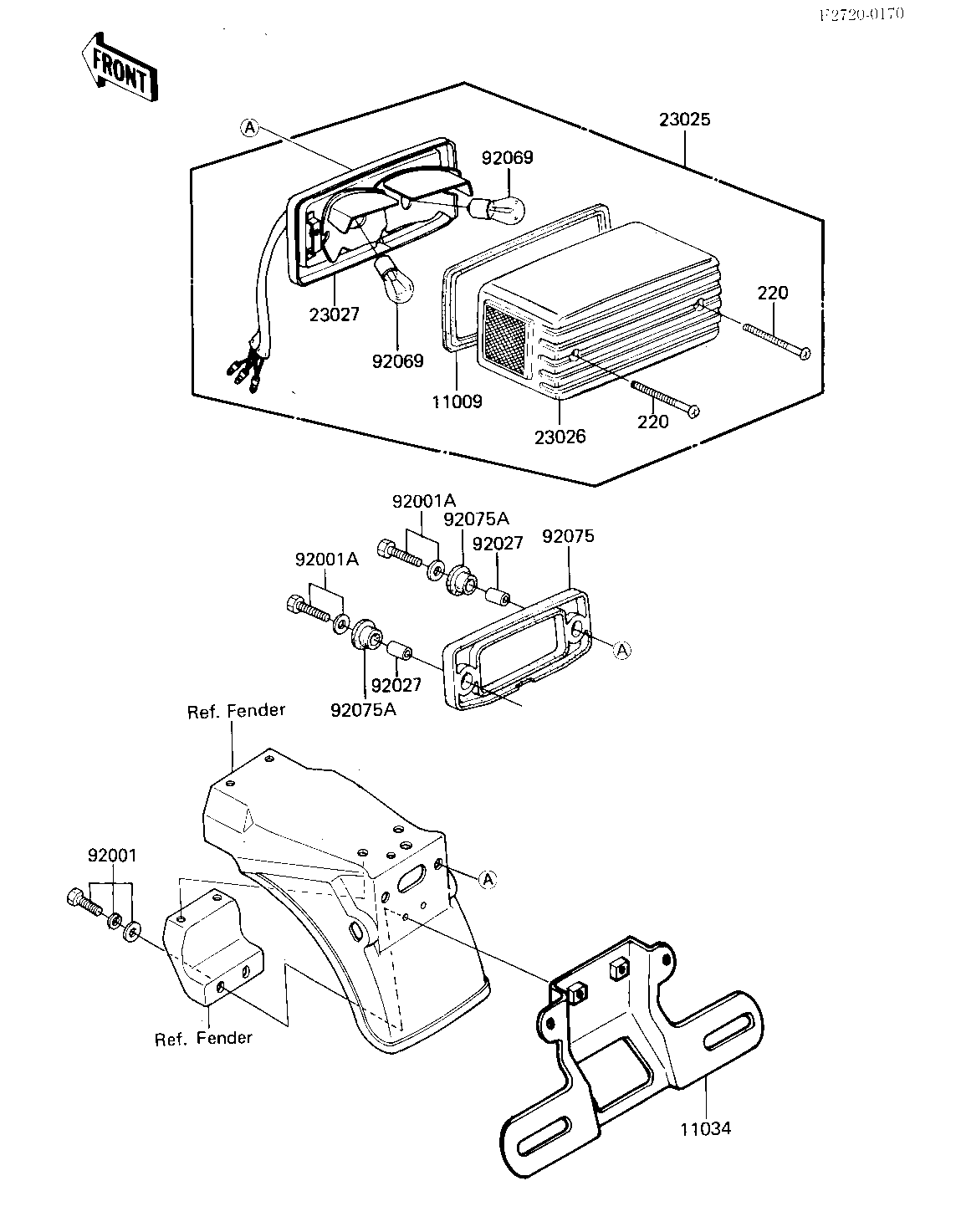

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,TAIL LAMP 11009 11009-1221 1
BRACKET 11034 11034-1922 1
LAMP-TAIL,BLACK 23025 23025-1038 1
LENS,TAIL LAMP 23026 23026-1021 1
BODY-COMP-TAIL LAMP,B 23027 23027-1025 1
BOLT,6X20 92001 92001-1765 2
BOLT,6X30 92001A 92001-1776 2
COLLAR,6.8X10X21 92027 92027-1400 2
BULB,12V 32/3CP 92069 92069-059 2
DAMPER 92075 92075-1282 1
DAMPER,TAIL LAMP 92075A 92075-1367 2
SCREW-PAN-CROS 220 220C0465 2
