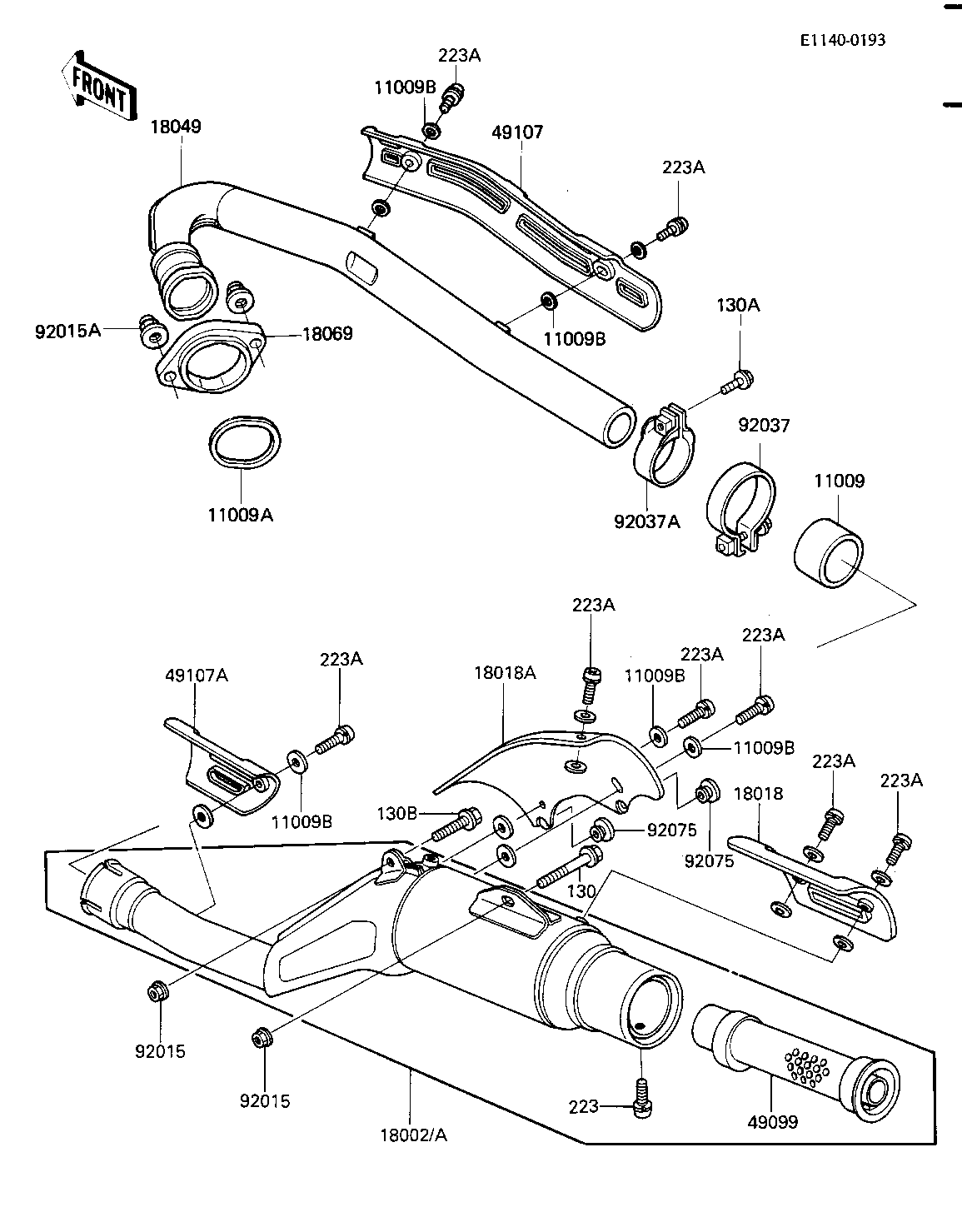

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,EXHAUST PIPE C | 11009 | 11009-1666 | 1 | ||
| GASKET,EXH PIPEHOLDER | 11009A | 11060-1108 | 1 | ||
| GASKET,6.2X11.5X1.5 | 11009B | 11060-1109 | 16 | ||
| BODY-COMP-MUFFLER (Canada) | 18002 | 18002-1454 | 1 | CN | |
| BODY-COMP-MUFFLER | 18002A | 18002-1597 | 1 | CA | |
| PLATE-HEAT GUARD | 18018 | 18018-1053 | 1 | ||
| PLATE-HEAT GUARD | 18018A | 18018-1060 | 1 | ||
| PIPE-EXHAUST | 18049 | 18049-1267 | 1 | ||
| HOLDER-EXHAUST PIPE | 18069 | 18069-1063 | 1 | ||
| BAFFLE-PIPE MUFFLER | 49099 | 49099-1218 | 1 | CA | |
| COVER-EXHAUST PIPE,FR | 49107 | 49107-1051 | 1 | ||
| COVER-EXHAUST PIPE,RR | 49107A | 49107-1068 | 1 | ||
| NUT-8MM | 92015 | 92015-1143 | 2 | ||
| NUT,CAP,8MM,BLACK | 92015A | 92015-1174 | 2 | ||
| CLAMP | 92037 | 92037-1910 | 1 | ||
| CLAMP,43MM | 92037A | 92037-1571 | 1 | ||
| DAMPER RUBB MAIN STND | 92075 | 92075-005 | 2 | ||
| BOLT,FLANGED,8X55 | 130 | 130G0855 | 1 | ||
| BOLT-FLANGED,8X25,BLA | 130A | 130J0825 | 1 | ||
| BOLT-FLANGED,8X40 | 130B | 130J0840 | 1 | ||
| SCREW-PAN-WS-CROS | 223 | 223B0610 | 1 | CA | |
| SCREW-PAN-WS-CROS | 223A | 223C0610 | 8 |
