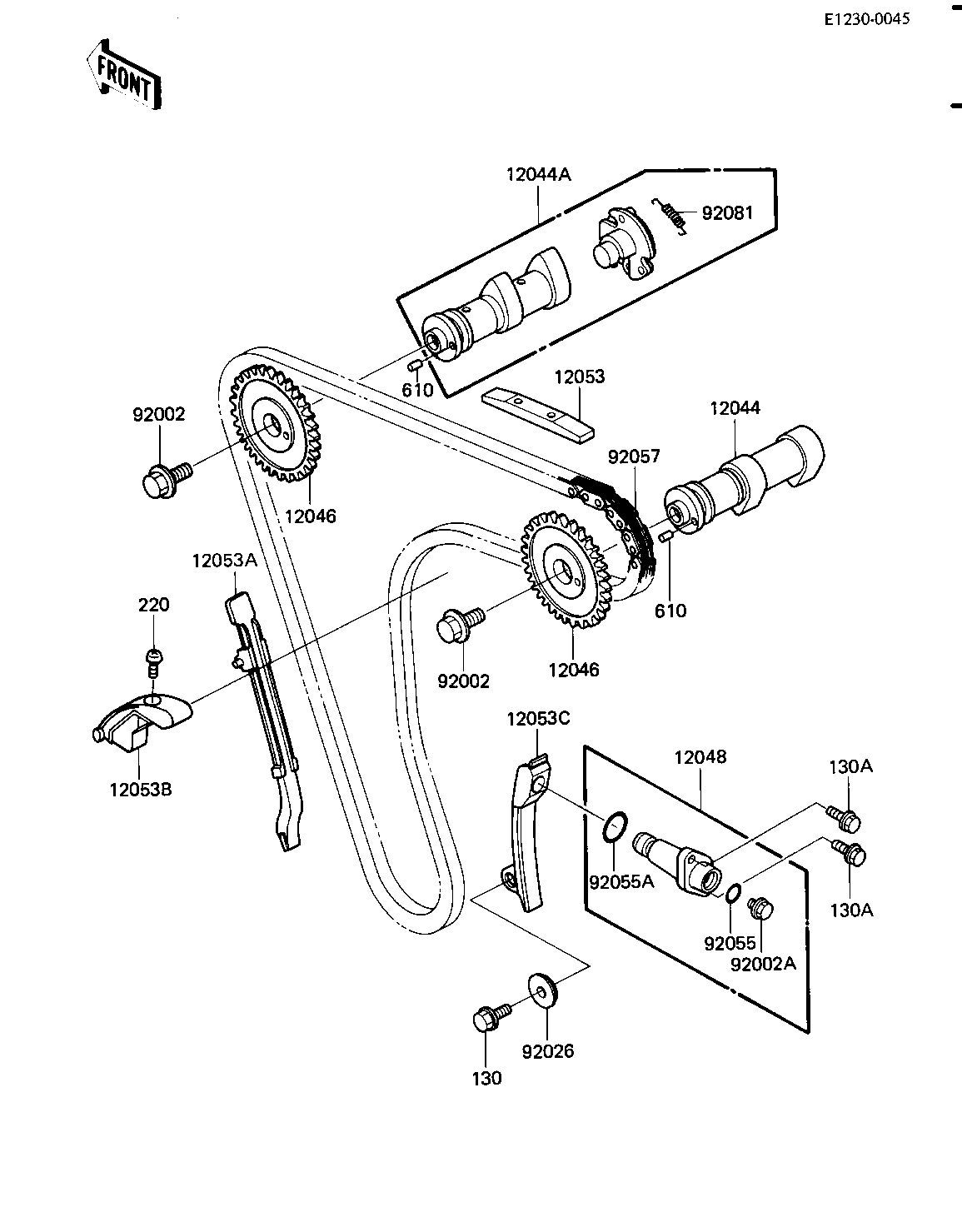

1984 KL600 - CAMSHAFTS/CHAIN/TENSIONER
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAMSHAFT-VALVE,INTAKE | 12044 | 12044-1114 | 1 | ||
CAMSHAFT-VALVE | 12044A | 12044-1197 | 1 | ||
SPROCKET,CAMSHAFT,48T | 12046 | 12046-1062 | 2 | ||
TENSIONER-ASSY | 12048 | 12048-1086 | 1 | ||
GUIDE-CHAIN,UPP | 12053 | 12053-1107 | 1 | ||
GUIDE-CHAIN,FR | 12053A | 12053-1223 | 1 | ||
GUIDE-CHAIN,LWR | 12053B | 12053-1134 | 1 | ||
GUIDE-CHAIN,RR | 12053C | 12053-1222 | 1 | ||
BOLT,10X23 | 92002 | 92001-1859 | 2 | ||
BOLT | 92002A | 92002-1302 | 1 | ||
SPACER | 92026 | 92026-1146 | 1 | ||
O RING | 92055 | 670D2010 | 1 | ||
"0" RING,21MM | 92055A | 670D2021 | 1 | ||
CHAIN,CAMSHAFT | 92057 | 92057-1241 | 1 | ||
SPRING,DECOMPRESSOR | 92081 | 92081-1626 | 1 | ||
BOLT-FLANGED,8X25 | 130 | 130G0825 | 1 | ||
BOLT-FLANGED,6X25 | 130A | 130J0625 | 2 | ||
SCREW PAN HEAD 6X14 | 220 | 220B0614 | 1 | ||
PIN DOWEL 4X10 | 610 | 610A0410 | 2 |
