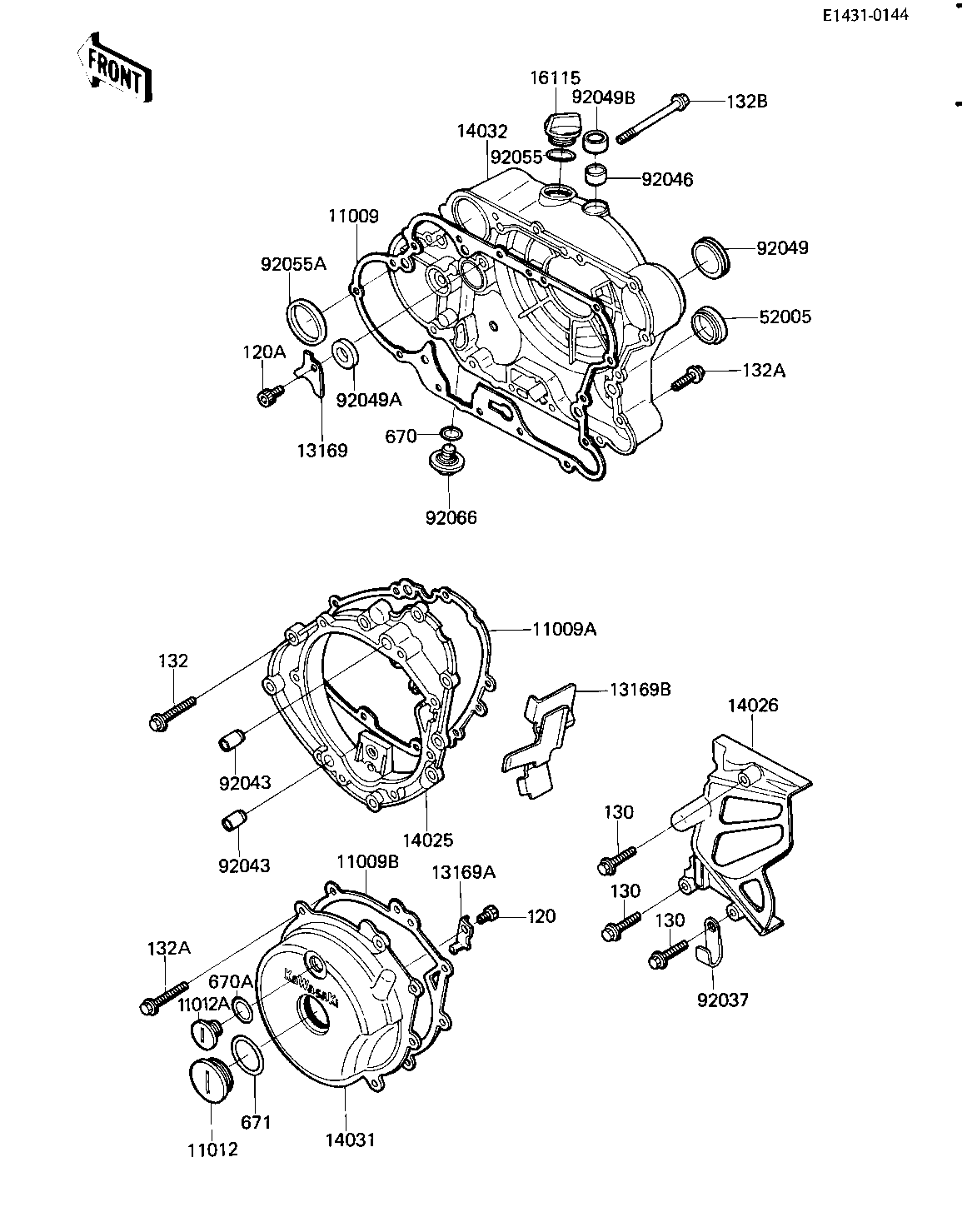

1984 KL600 - ENGINE COVERS

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,CLUTCH COVER 11009 11060-1111 1
GASKET,GENERATOR CASE 11009A 11060-1112 1
GASKET,GENERATOR COVE 11009B 11009-1370 1
CAP 11012 11012-1362 1
CAP,TOP MARK 11012A 11012-1363 1
PLATE,OIL SEAL 13169 13169-1735 1
PLATE,GENERATOR LEAD 13169A 13169-1880 1
PLATE 13169B 13169-1909 1 (KL600A009348-)
COVER,GENERATOR CASE 14025 14025-1922 1
COVER-CHAIN 14026 14026-1107 1
COVER-GENERATOR 14031 14031-1172 1
COVER-CLUTCH 14032 14032-1157 1
CAP-OIL FILLER 16115 16115-1009 1
GAUGE,OIL LEVEL 52005 52005-1009 1
CLAMP,WIRING HARNESS 92037 92037-1069 1
PIN-DOWEL 92043 92042-007 2
BEARING,NEEDLE,HK1210 92046 92046-1010 1
OIL SEAL,SC22325 92049 92049-1048 1
SEAL-OIL,SCY 15X30X7 92049A 92049-1158 1
SEAL-OIL 92049B 92049-1271 1
"0" RING,31MM 92055 92055-049 1
RING-O,62.6X66X3.1 92055A 92055-1221 1
PLUG,DRAIN 92066 92066-1156 1
BOLT-SOCKET 120 120P0608 1
BOLT-SOCKET,6X10 120A 120P0610 1
BOLT-FLANGED,6X25 130 130J0625 3
BOLT-FLANGED-SMALL 132 132J0625 9
BOLT-FLANGED-SMALL 132A 132J0630 1
BOLT-FLANGED-SMALL 132B 132J0680 1
"O" RING 670 670B2011 1
"0" RING,18MM 670A 670B2018 1
"0" RING,40MM 671 671B2540 1
