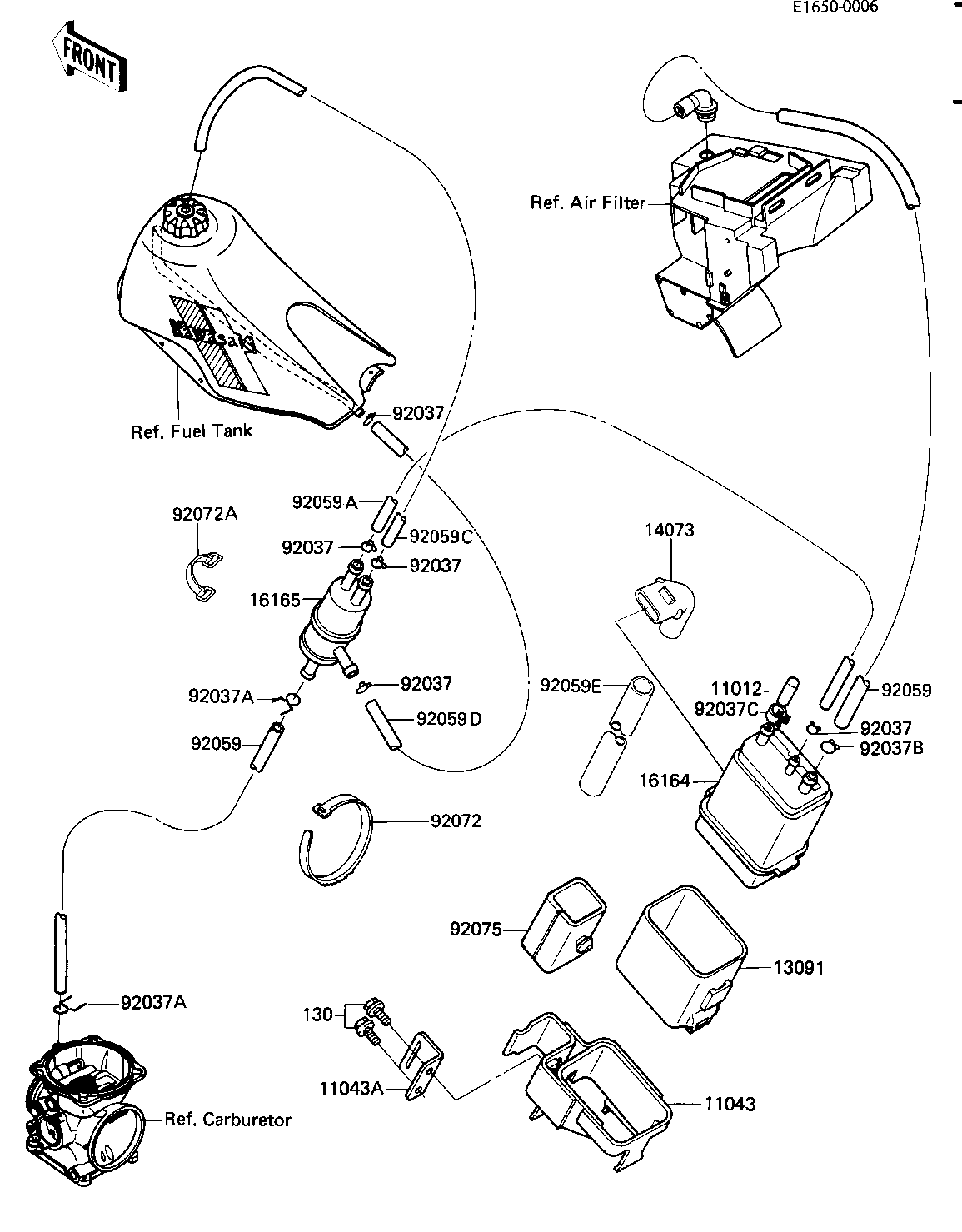

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CAP,CANISTER | 11012 | 11012-1388 | 1 | CA | |
BRACKET,CANISTER | 11043 | 11043-1709 | 1 | CA | |
BRACKET | 11043A | 11043-1710 | 1 | CA | |
HOLDER,CANISTER | 13091 | 13091-1176 | 1 | CA | |
DUCT,CANISTER | 14073 | 14073-1219 | 1 | CA | |
CANISTER | 16164 | 16164-1001 | 1 | CA | |
SEPARATOR | 16165 | 16165-1001 | 1 | CA | |
CLAMP FUEL PIPE | 92037 | 92037-010 | 5 | CA | |
CLAMP-PIPE | 92037A | 92037-072 | 2 | CA | |
CLAMP-HOSE | 92037B | 92037-1104 | 1 | CA | |
CLAMP,CANISTER | 92037C | 92037-1512 | 1 | CA | |
TUBE,4X9X470 | 92059 | 92059-1402 | 1 | CA | |
TUBE,5X8X660 | 92059A | 92059-1410 | 1 | CA | |
TUBE | 92059B | 92059-1441 | 1 | CA | |
TUBE | 92059C | 92059-1442 | 1 | CA | |
TUBE,5X8X340 | 92059D | 92059-1469 | 1 | CA | |
TUBE | 92059E | 92059-1614 | 1 | CA | |
BAND,LONG | 92072 | 92072-032 | 2 | CA | |
BAND,TOOL | 92072A | 92072-066 | 1 | CA | |
DAMPER | 92075 | 92075-1628 | 1 | CA | |
BOLT,FLANGED,6X10 | 130 | 130B0610 | 2 | CA |
CAP,CANISTER | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
BRACKET,CANISTER | |
REF # | 11043 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
BRACKET | |
REF # | 11043A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
HOLDER,CANISTER | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
DUCT,CANISTER | |
REF # | 14073 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
CANISTER | |
REF # | 16164 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
SEPARATOR | |
REF # | 16165 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
CLAMP FUEL PIPE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS | CA |
CLAMP-PIPE | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | CA |
CLAMP-HOSE | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
CLAMP,CANISTER | |
REF # | 92037C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
TUBE,4X9X470 | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
TUBE,5X8X660 | |
REF # | 92059A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
TUBE | |
REF # | 92059B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
TUBE | |
REF # | 92059C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
TUBE,5X8X340 | |
REF # | 92059D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
TUBE | |
REF # | 92059E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
BAND,LONG | |
REF # | 92072 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | CA |
BAND,TOOL | |
REF # | 92072A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
DAMPER | |
REF # | 92075 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
BOLT,FLANGED,6X10 | |
REF # | 130 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | CA |
