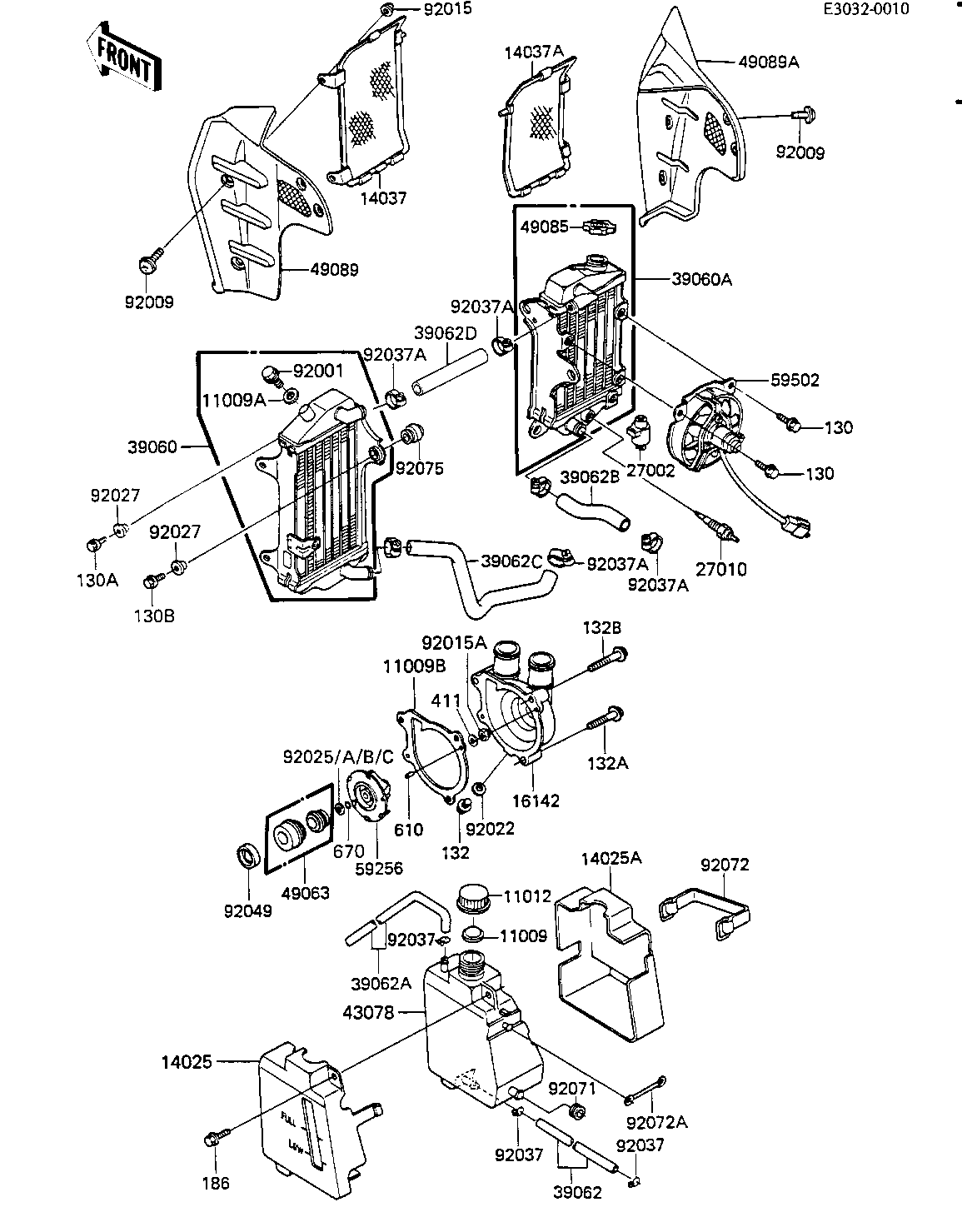

Parts Diagrams |
| ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
|---|---|---|---|---|---|
| GASKET,RESERVE TANK | 11009 | 11009-1145 | 1 | ||
| GASKET,DRAIN PLUG | 11009A | 11009-1152 | 1 | ||
| GASKET,WATER PUMP COV | 11009B | 11060-1114 | 1 | ||
| CAP,RESERVE TANK | 11012 | 11012-1084 | 1 | ||
| COVER,RESERVOIR,LH | 14025 | 14025-1782 | 1 | ||
| COVER,RESERVOIR,RH | 14025A | 14025-1783 | 1 | ||
| SCREEN,RADIATOR,LH | 14037 | 14037-1056 | 1 | ||
| SCREEN,RADIATOR,RH | 14037A | 14037-1057 | 1 | ||
| COVER-PUMP,WATER | 16142 | 16142-1057 | 1 | ||
| RELAY-ASSY | 27002 | 27002-1051 | 1 | ||
| SWITCH,FAN | 27010 | 27010-1167 | 1 | ||
| EXCHANGER-HEAT,LH | 39060 | 39060-1055 | 1 | ||
| EXCHANGER-HEAT,RH | 39060A | 39060-1056 | 1 | ||
| HOSE-COOLING,5.5X10.5 | 39062 | 39062-1060 | 1 | ||
| HOSE-COOLING,5.5X10.5 | 39062A | 39062-1061 | 1 | ||
| HOSE-COOLING,CYLINDER | 39062B | 39062-1062 | 1 | ||
| HOSE-COOLING,RADIATOR | 39062C | 39062-1090 | 1 | ||
| HOSE-COOLING,RADIATOR | 39062D | 39062-1256 | 1 | ||
| RESERVOIR,TANK | 43078 | 43078-1061 | 1 | ||
| SEAL MECHANICAL | 49063 | 49063-1054 | 1 | ||
| CAP-ASSY-PRESSURE | 49085 | 49085-1052 | 1 | ||
| SHROUD-ENGINE,LH,BLAC | 49089 | 49089-1053-6Z | 1 | ||
| SHROUD-ENGINE,RH,BLAC | 49089A | 49089-1054-6Z | 1 | ||
| IMPELLER | 59256 | 59256-1055 | 1 | ||
| FAN-ASSY | 59502 | 59502-1052 | 1 | ||
| BOLT,RADIATOR DRAIN | 92001 | 92002-1682 | 1 | ||
| SCREW,6X14 | 92009 | 92009-1287 | 8 | ||
| NUT,CAP 6MM,BLACK | 92015 | 92015-1170 | 4 | ||
| NUT,LOCK,6MM,BLACK | 92015A | 92015-1191 | 1 | ||
| WASHER,PLAIN | 92022 | 92022-304 | 1 | ||
| SHIM,T=2.0 | 92025 | 92025-1505 | AR | ||
| SHIM,T=1.4 | 92025A | 92025-1506 | AR | ||
| SHIM,T=0.8 | 92025B | 92025-1507 | AR | ||
| SHIM,T=0.3 | 92025C | 92025-1508 | AR | ||
| COLLAR,RADIATOR GUARD | 92027 | 92027-1183 | 6 | ||
| CLAMP,CHAIN OILER | 92037 | 92037-147 | 3 | ||
| CLAMP,COOLING HOSE | 92037A | 92037-1589 | 6 | ||
| SEAL-OIL,SC10227 | 92049 | 92049-1157 | 1 | ||
| GROMMET,RESERVIOR TAN | 92071 | 92071-1115 | 1 | ||
| BAND-SPARK PLUG COVER | 92072 | 92072-053 | 1 | ||
| BAND,L=58 | 92072A | 92072-1156 | 1 | ||
| DAMPER,RADIATOR | 92075 | 92075-1352 | 6 | ||
| BOLT-FLANGED,6X12,BLA | 130 | 130J0612 | 3 | ||
| BOLT-FLANGED,6X20 | 130A | 130J0620 | 1 | ||
| BOLT-FLANGED,6X25 | 130B | 130J0625 | 5 | ||
| BOLT-FLANGED-SMALL | 132 | 132J0608 | 1 | ||
| BOLT-FLANGED-SMALL | 132A | 132J0630 | 2 | ||
| BOLT-FLANGED-SMALL | 132B | 132J0635 | 1 | ||
| BOLT-UPSET-WP | 186 | 186J0618 | 1 | ||
| WASHER PLAIN | 411 | 411F0600 | 1 | ||
| PIN DOWEL 4X8 | 610 | 610A0408 | 2 | ||
| "O" RING,6M/M | 670 | 670B1506 | 1 |
