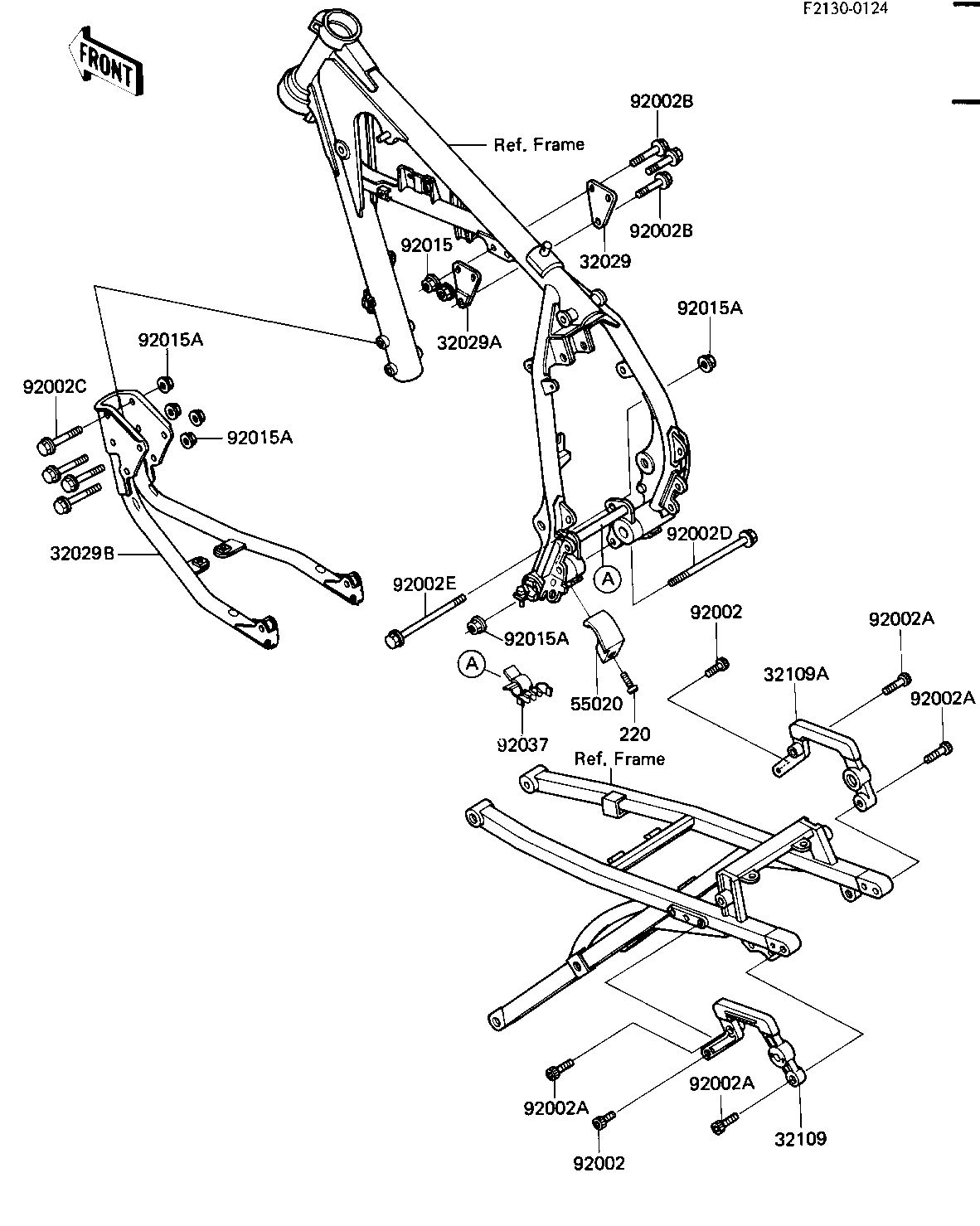

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-ENGINE,RH 32029 32029-1309 1
BRACKET-ENGINE,LH 32029A 32029-1334 1
BRACKET-ENGINE,FR 32029B 32029-1367 1
GRIP-FRAME,LH 32109 32109-1105 1
GRIP-FRAME,RH 32109A 32109-1106 1
GUARD,CHAIN 55020 55020-1157 1
BOLT,SOCKET,6X14 92004 92002-1175 2
BOLT,SOCKET,6X25 92002A 92002-1176 4
BOLT,8X50 92002B 92002-1182 3
BOLT,FLANGED,10X70 92002C 92001-1618 4
BOLT,10X185 92002D 92002-1346 1
BOLT,10X185 92002E 92002-1346 1
NUT,8MM 92015 92015-1406 2
NUT,10MM 92015A 92015-1415 6
CLAMP 92037 92037-1584 1
SCREW PAN CROS 220 220B0510 1
