Part Item Information

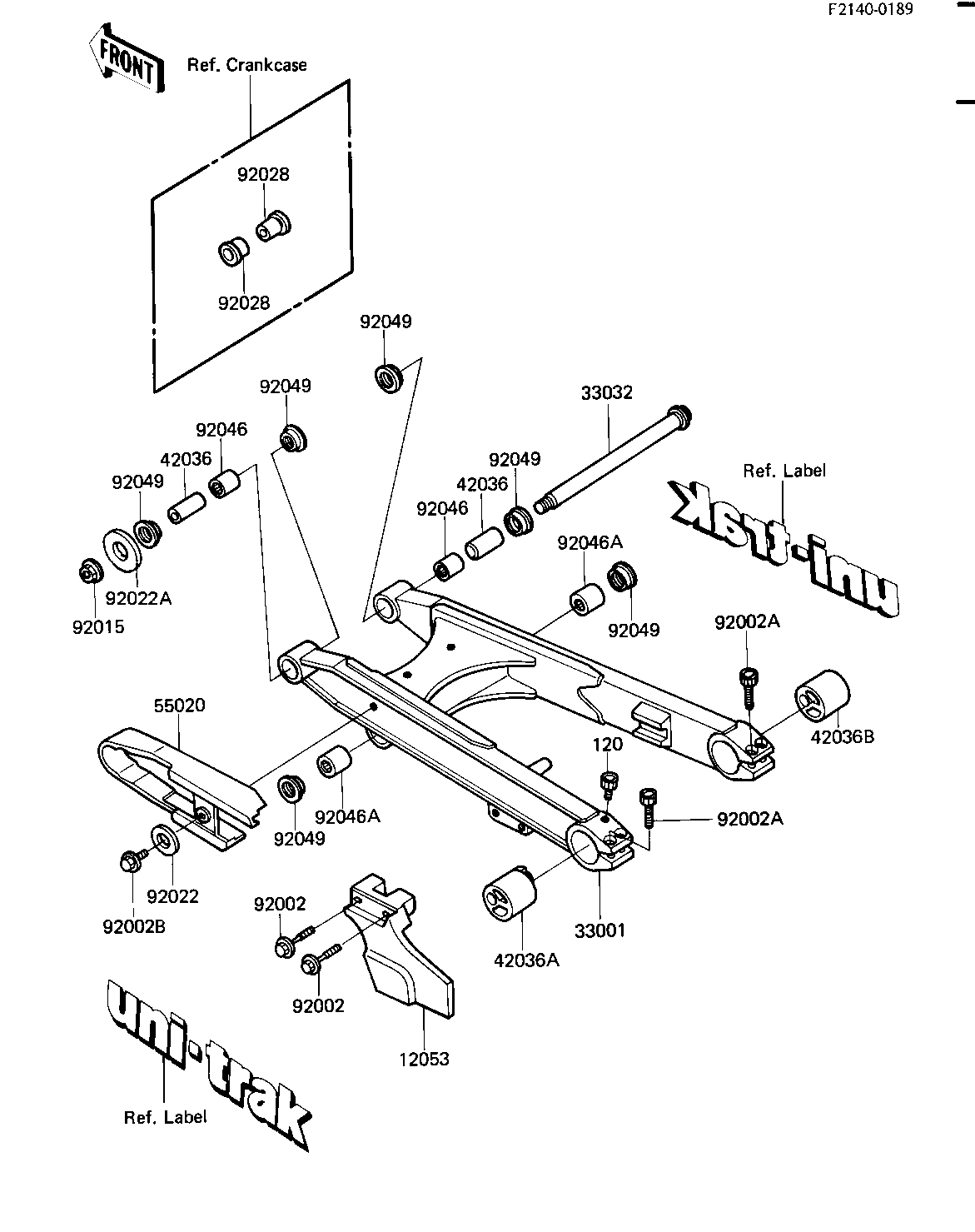

ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GUIDE-CHAIN,RR 12053 12053-1104 1
ARM-COMP-SWING 33001 33001-1202 1
SHAFT-SWING ARM 33032 33032-1106 1
SLEEVE,15.1X20X42.5 42036 42036-1103 2
SLEEVE,AXLE,LH 42036A 42036-1104 1
SLEEVE,AXLE,RH 42036B 42036-1105 1
GUARD,CHAIN,FR 55020 55020-1154 1
BOLT,6X45 92002 92002-1088 2
BOLT,SOCKET,8X35 92002A 92002-1180 4
BOLT,5X12 92002B 92002-1185 1
NUT,14MM 92015 92015-1459 1
WASHER PL 5.5X20X1.2 92022 92022-104 1
WASHER 92022A 92022-1701 1
BUSHING,SWING ARM 92028 92028-1261 2
BEARING-NEEDLE,BM2027 92046 92046-1110 2
BEARING-NEEDLE,BTM202 92046A 92046-1113 2
SEAL-OIL,ARM,CNT 92049 92049-1109 6
BOLT-SOCKET 120 120Z0512 1
