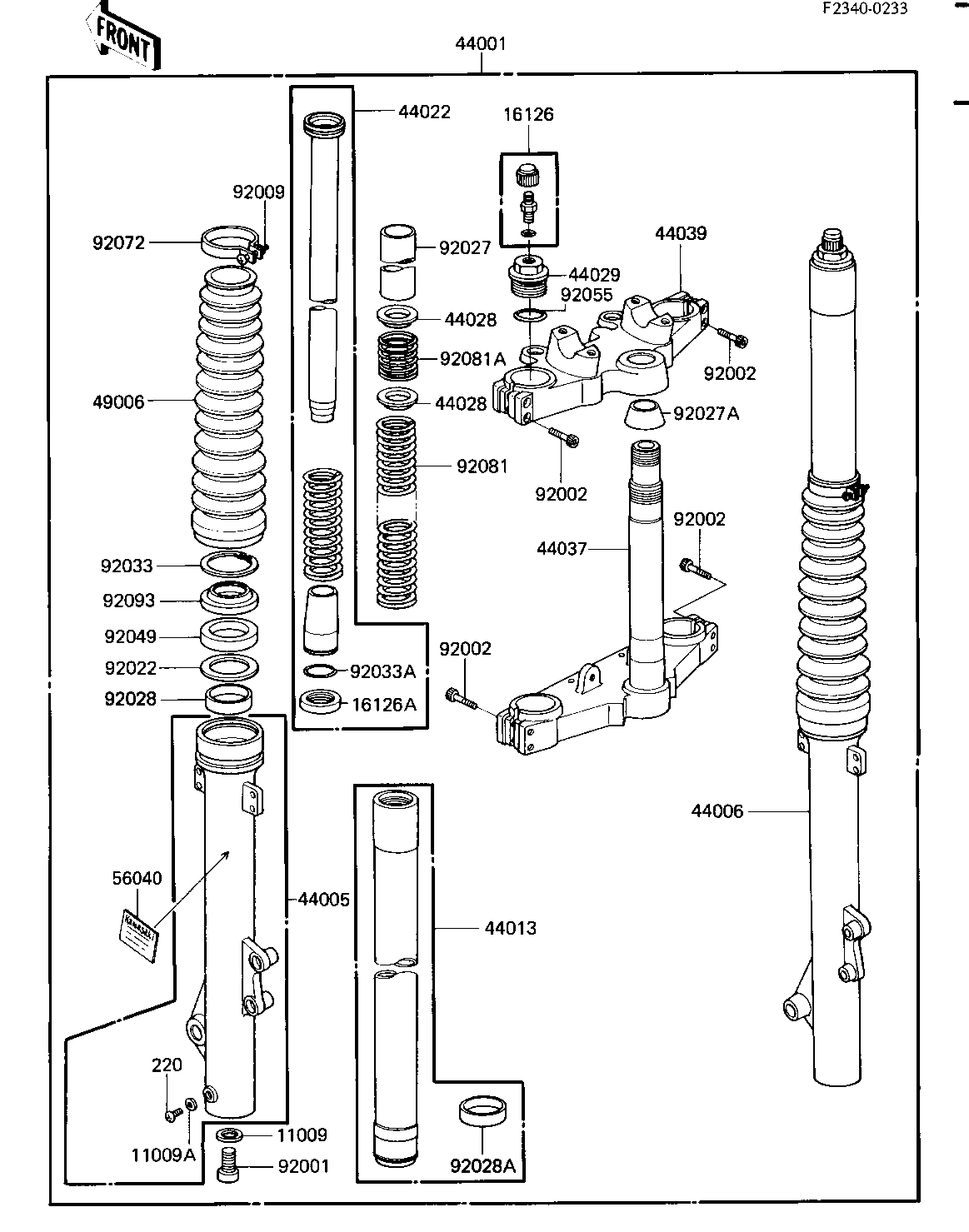

1984 KL600 - FRONT FORK

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,FORK CYLINDER 11009 11009-1127 2
GASKET FORK DRAIN PLG 11009A 44045-002 2
VALVE AIR 16126 16126-1052 2
VALVE,AIR 16126A 16126-1113 2
FORK-FRONT 44001 44001-1511 1
PIPE-LEFT FORK OUTER 44005 44005-1215 1
PIPE-RIGHT FORK OUTER 44006 44006-1214 1
PIPE-FORK INNER 44013 44013-1218 2
CYLINDER-FORK 44022 44022-1166 2
GUIDE,FORK SPRING 44028 44028-1003 4
SEAT-FORK SPRING 44029 44029-1042 2
HOLDER-FORK-UNDER 44037 44037-1171 1
HOLDER-FORK UPPER 44039 44039-1101 1
BOOT,FORK 49006 49006-1166 2
LABEL,FRONT FORK 56040 56040-1120 1
BOLT,FORK CYLINDER 92001 92001-1309 2
BOLT,SOCKET,8X32 92002 92002-1277 8
SCREW 92009 92009-1348 2
WASHER,FORK OUT PIPE 92022 92022-1262 2
COLLAR,FORK SPRING 92027 92027-1790 2
COLLAR,UPPER BRACKET 92027A 92027-1791 1
BUSHING-FRONT FORK,OU 92028 44065-1091 2
BUSHING,FORK PIPE 92028A 92028-1126 2
SNAP RING,FORK OUTER 92033 92033-1047 2
RING-SNAP,AIR VALVE 92033A 92033-1175 2
SEAL-OIL,FRONT FORK 92049 92049-1180 2
"0" RING,FORK TOP CAP 92055 92055-1050 2
BAND,BOOT 92072 92072-1171 2
SPRING,FRONT FORK 92081 92081-1722 2
SPRING,FRONT FORK 92081A 92081-1734 2
SEAL,FRONT FORK 92093 92093-1166 2
SCREW PAN HEAD 4X8 220 220B0408 2
