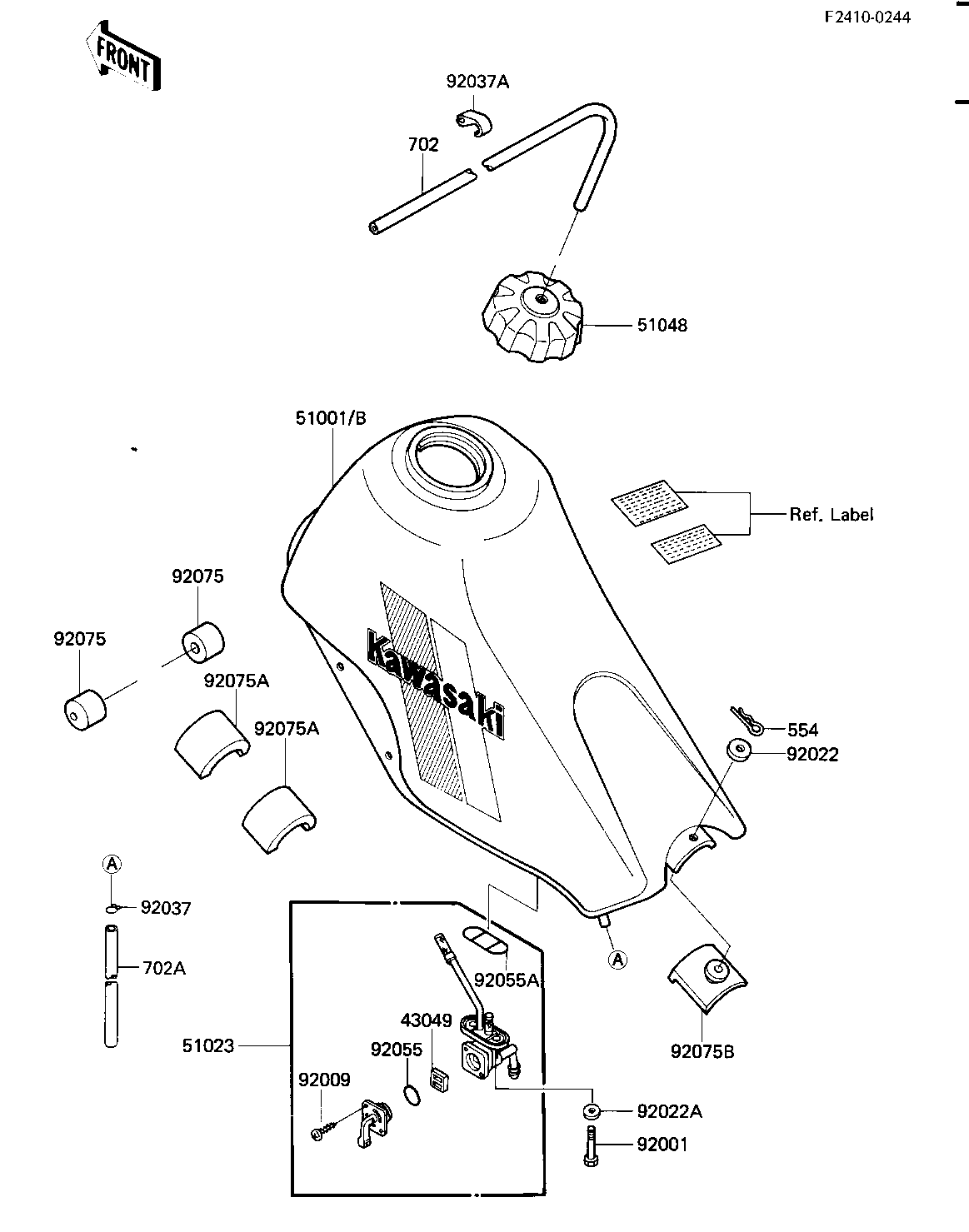

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
PACKING,FUEL TAP VALV 43049 43049-1017 1
TANK-COMP-FUEL,P.WHIT 51001 51002-5069-F1 1 CN,US
TANK-COMP-FUEL,P.WHIT 51001B 51002-5142-F1 1 CA
TAP-ASSY,FUEL 51023 51023-1106 1
CAP-ASSY-TANK,FUEL 51048 51048-1063 1
BOLT,6X20,FUEL TAP 92001 92001-1091 2
SCREW PAN HEAD 3X5 92009 220B0305A 2
WASHER,PLAIN,10.5X24 92022 92022-1137 1
WASHER-PLAIN 92022A 92022-183 2
CLAMP FUEL PIPE 92037 92037-010 1 CN,US
CLAMP,TUBE 92037A 92037-1377 1 CN,US
"0" RING,FUEL TAP LEV 92055 92055-1111 1
"0" RING,FUEL TANK 92055A 92055-1112 1
DAMPER RUBBER,FL TANK 92075 92075-125 2
DAMPER 92075A 92075-1382 2
DAMPER,FUEL TANK 92075B 92075-1511 1
PIN-SNAP,10MM 554 554A1000 1
TUBE,5X1430 702 702A051430 1 CN,US
TUBE-RUBBER,5X8X620 702A 702A05620 1 CN,US
