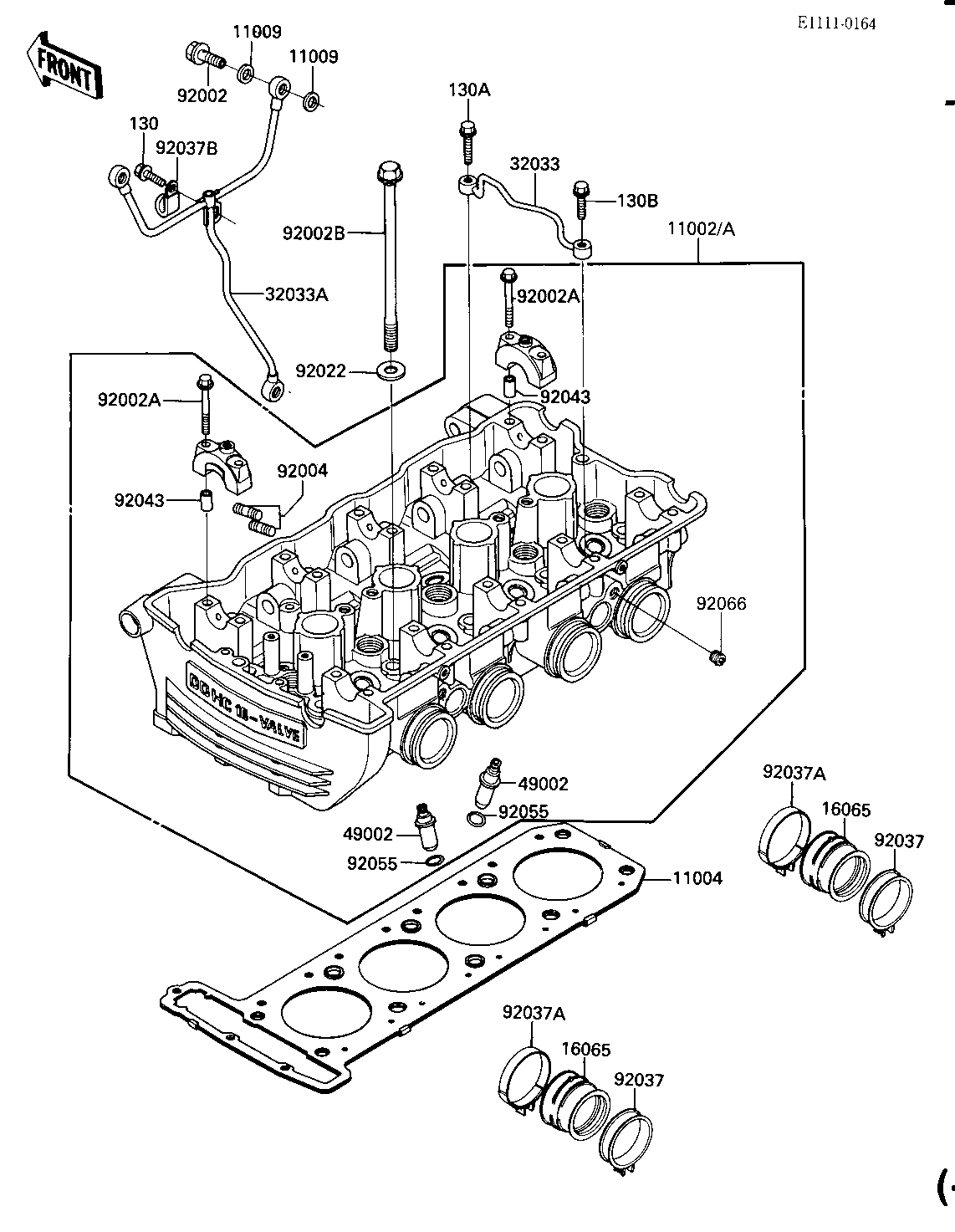

1984 Ninja® - CYLINDER HEAD (-E/NO. 030893)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
HEAD-ASSY-CYLINDER 11002 11002-1153 1 CA,US
HEAD-ASSY-CYLINDER (Canada) 11002A 11002-1163 1 CN
GASKET-HEAD 11004 11004-1111 1
GASKET,12.4X17X1.5 11009 11009-1376 6
HOLDER-CARBURETOR 16065 16065-1108 4
PIPE,CYLINDER HEAD 32033 32102-1423 2
PIPE,OIL PAN-HEAD 32033A 32033-1850 1
GUIDE-VALVE 49002 49002-1052 16
BOLT,BANJO,12X23 92002 92001-1871 3
BOLT,6X46 92002A 92001-1872 20
BOLT,10X164 92002B 92002-1943 10
STUD,8X20 92004 92004-1110 8
WASHER,10.5X20X1.6 92022 92022-1591 10
CLAMP,ID=53,BLACK 92037 92037-1304 4
CLAMP 92037A 92037-1523 4
CLAMP,WIRING HARNESS 92037B 92037-1539 1
PIN-DOWEL 92043 92042-007 20
RING-O,11.7MM 92055 92055-1265 16
PLUG 92066 92066-1201 2
BOLT-FLANGED 130 130C0608 1
BOLT,FLANGED,6X30 130A 130G0630 2
BOLT-FLANGED,6X25 130B 130J0625 2
