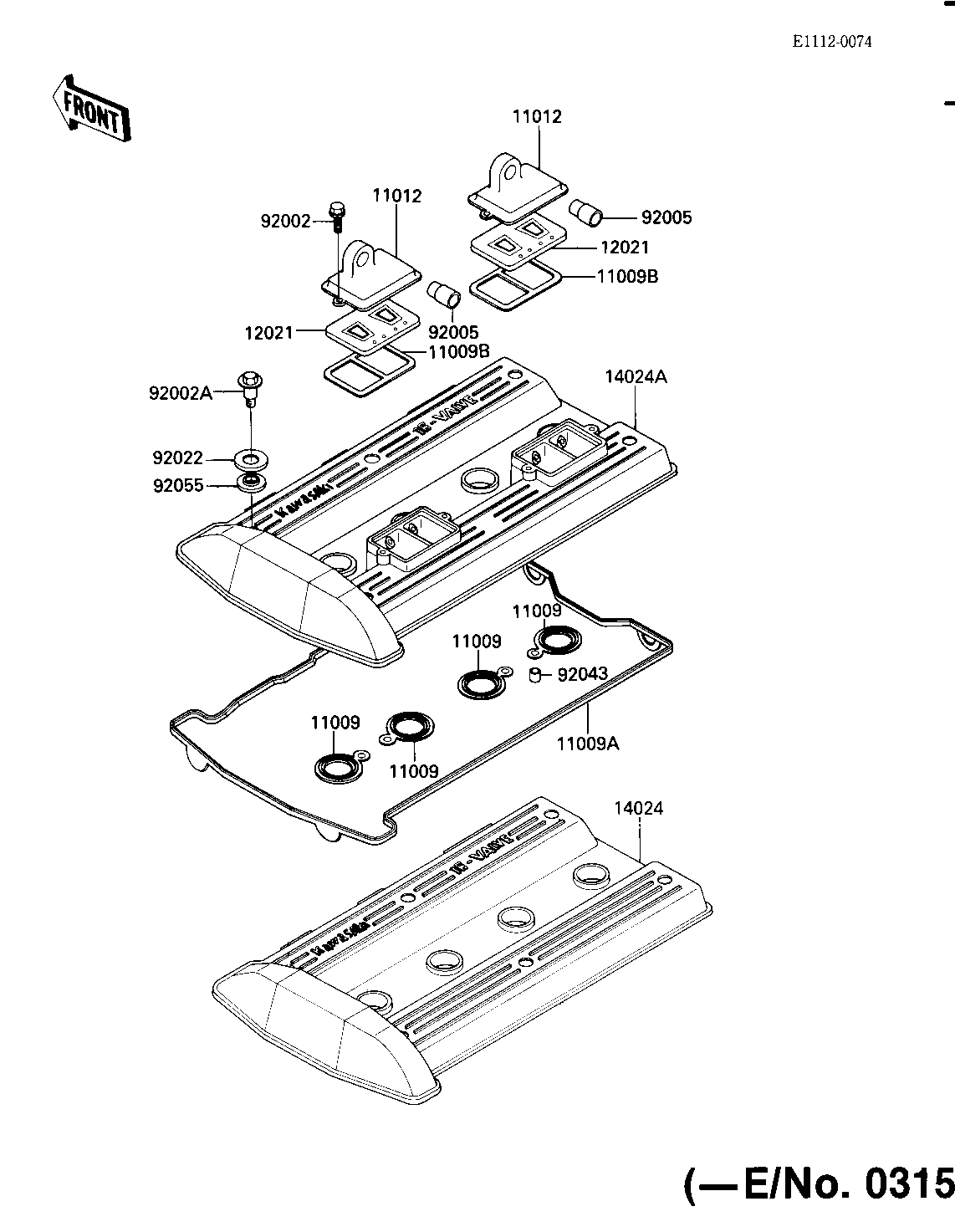

1984 Ninja® - CYLINDER HEAD COVER (-E/NO. 031543)(E/NO

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET 11009 11009-1377 4
GASKET,CYLINDER HEAD 11009A 11009-1378 1
GASKET,REED VALVE 11009B 11009-1905 2 CA,US
CAP,REED VALVE 11012 11012-1481 2 CA,US
VALVE-ASSY-REED 12021 12021-1053 2 CA,US
COVER,CYLINDER HEAD (Canada) 14024 14024-1082 1 CN
COVER,CYLINDER HEAD 14024A 14024-1138 1 CA,US
BOLT,6X22 92002 92002-1068 4 CA,US
BOLT 92002A 92150-1447 6
FITTING, REED VALVE 92005 92005-1006 2 CA,US
WASHER,HEAD COVER BOL 92022 92022-1487 6
PIN,DOWEL,8X10 92043 92043-1302 4 CA,US
RING-O,HEAD COVER BOL 92055 92055-1225 6
