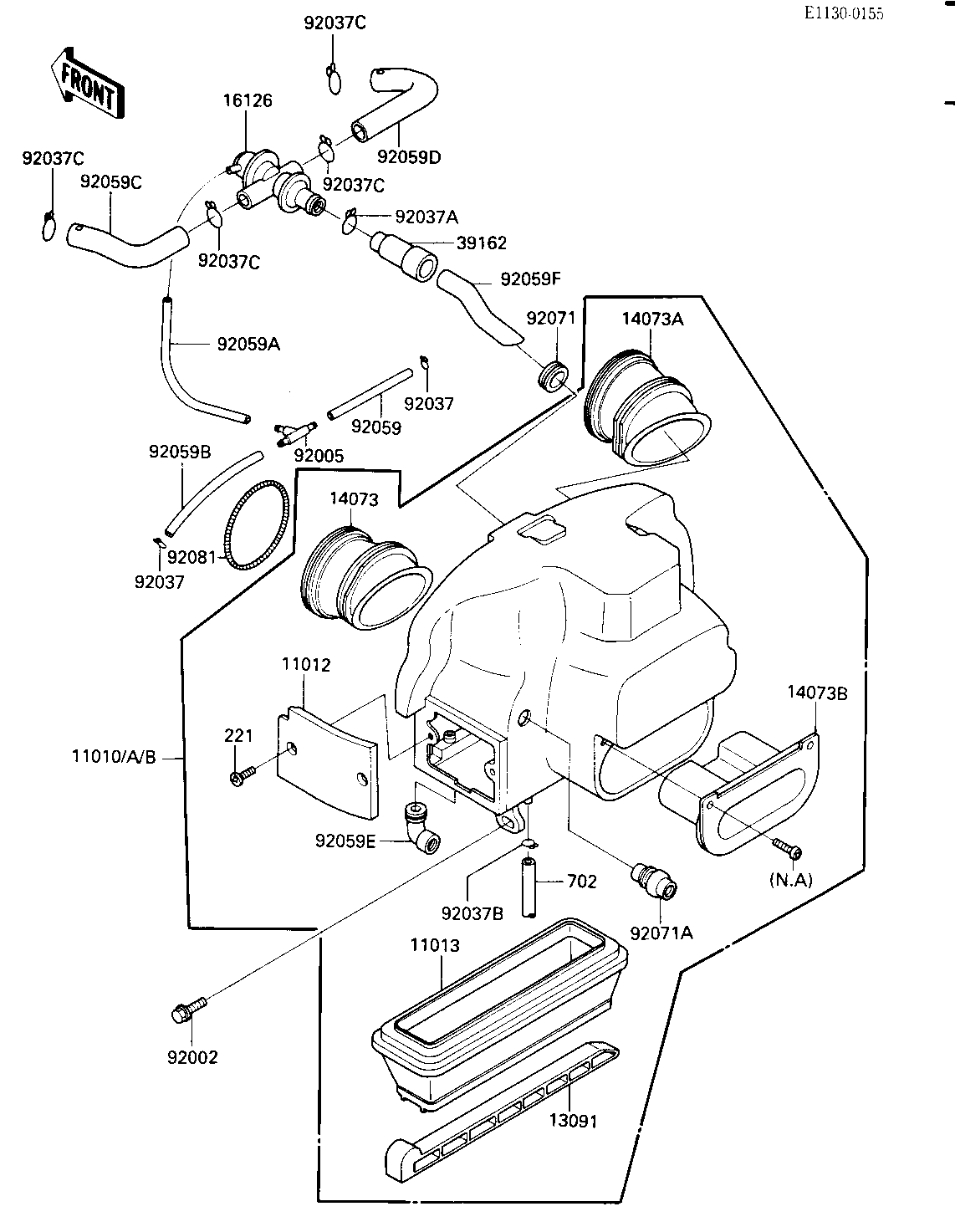

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
FILTER-ASSY-AIR | 11010 | 11010-1212 | 1 | US | |
FILTER-ASSY-AIR | 11010A | 11010-1214 | 1 | CA | |
FILTER-ASSY-AIR (Canada) | 11010B | 11010-1215 | 1 | CN | |
CAP,AIR FILTER | 11012 | 11012-1373 | 1 | ||
ELEMENT-AIR FILTER | 11013 | 11013-1112 | 1 | ||
HOLDER,ELEMENT | 13091 | 13091-1277 | 1 | ||
DUCT,#1,#3 | 14073 | 14073-1273 | 2 | ||
DUCT,#2,#4 | 14073A | 14073-1274 | 2 | ||
DUCT,AIR INTAKE | 14073B | 14073-1179 | 1 | ||
VALVE,AIR SWITCH | 16126 | 16126-1104 | 1 | CA,US | |
SILENCER | 39162 | 39162-1003 | 1 | CA,US | |
BOLT,6X16 | 92002 | 92001-1950 | 2 | ||
FITTING,TUBE | 92005 | 92005-1017 | 1 | CA,US | |
CLAMP-PIPE | 92037 | 92037-072 | 2 | CA,US | |
CLAMP | 92037A | 92037-1076 | 1 | CA,US | |
CLAMP,CHAIN OILER | 92037B | 92037-147 | 1 | ||
CLAMP,BREATHER TUBE | 92037C | 92037-213 | 4 | CA,US | |
TUBE,VACUUM,LONG | 92059 | 92059-1162 | 1 | CA,US | |
TUBE,VACUUM,LONG | 92059A | 92059-1162 | 1 | CA,US | |
TUBE,4X9X80 | 92059B | 92059-1365 | 1 | CA,US | |
TUBE,LH | 92059C | 92059-1389 | 1 | CA,US | |
TUBE,RH | 92059D | 92059-1390 | 1 | CA,US | |
TUBE,BREATHER | 92059E | 92059-1391 | 1 | ||
TUBE | 92059F | 92059-1459 | 1 | CA,US | |
GROMMET,AIR FILTER | 92071 | 92071-1042 | 1 | CA,US | |
GROMMET,AIR FILTER | 92071A | 92071-1112 | 1 | CA | |
SPRING,COIL,BLACK | 92081 | 92081-1457 | 4 | ||
SCREW-CSK-CROS | 221 | 221C0616 | 2 | ||
TUBE-RUBBER | 702 | 702A07480 | 1 |
FILTER-ASSY-AIR | |
REF # | 11010 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | US |
FILTER-ASSY-AIR | |
REF # | 11010A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
FILTER-ASSY-AIR (Canada) | |
REF # | 11010B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CN |
CAP,AIR FILTER | |
REF # | 11012 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ELEMENT-AIR FILTER | |
REF # | 11013 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOLDER,ELEMENT | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
DUCT,#1,#3 | |
REF # | 14073 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DUCT,#2,#4 | |
REF # | 14073A |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
DUCT,AIR INTAKE | |
REF # | 14073B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
VALVE,AIR SWITCH | |
REF # | 16126 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA,US |
SILENCER | |
REF # | 39162 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA,US |
BOLT,6X16 | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
FITTING,TUBE | |
REF # | 92005 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA,US |
CLAMP-PIPE | |
REF # | 92037 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS | CA,US |
CLAMP | |
REF # | 92037A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA,US |
CLAMP,CHAIN OILER | |
REF # | 92037B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CLAMP,BREATHER TUBE | |
REF # | 92037C |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS | CA,US |
TUBE,VACUUM,LONG | |
REF # | 92059 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA,US |
TUBE,VACUUM,LONG | |
REF # | 92059A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA,US |
TUBE,4X9X80 | |
REF # | 92059B |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA,US |
TUBE,LH | |
REF # | 92059C |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA,US |
TUBE,RH | |
REF # | 92059D |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA,US |
TUBE,BREATHER | |
REF # | 92059E |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
TUBE | |
REF # | 92059F |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA,US |
GROMMET,AIR FILTER | |
REF # | 92071 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA,US |
GROMMET,AIR FILTER | |
REF # | 92071A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS | CA |
SPRING,COIL,BLACK | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 4 |
DESTINATION | |
REMARKS |
SCREW-CSK-CROS | |
REF # | 221 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
TUBE-RUBBER | |
REF # | 702 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
