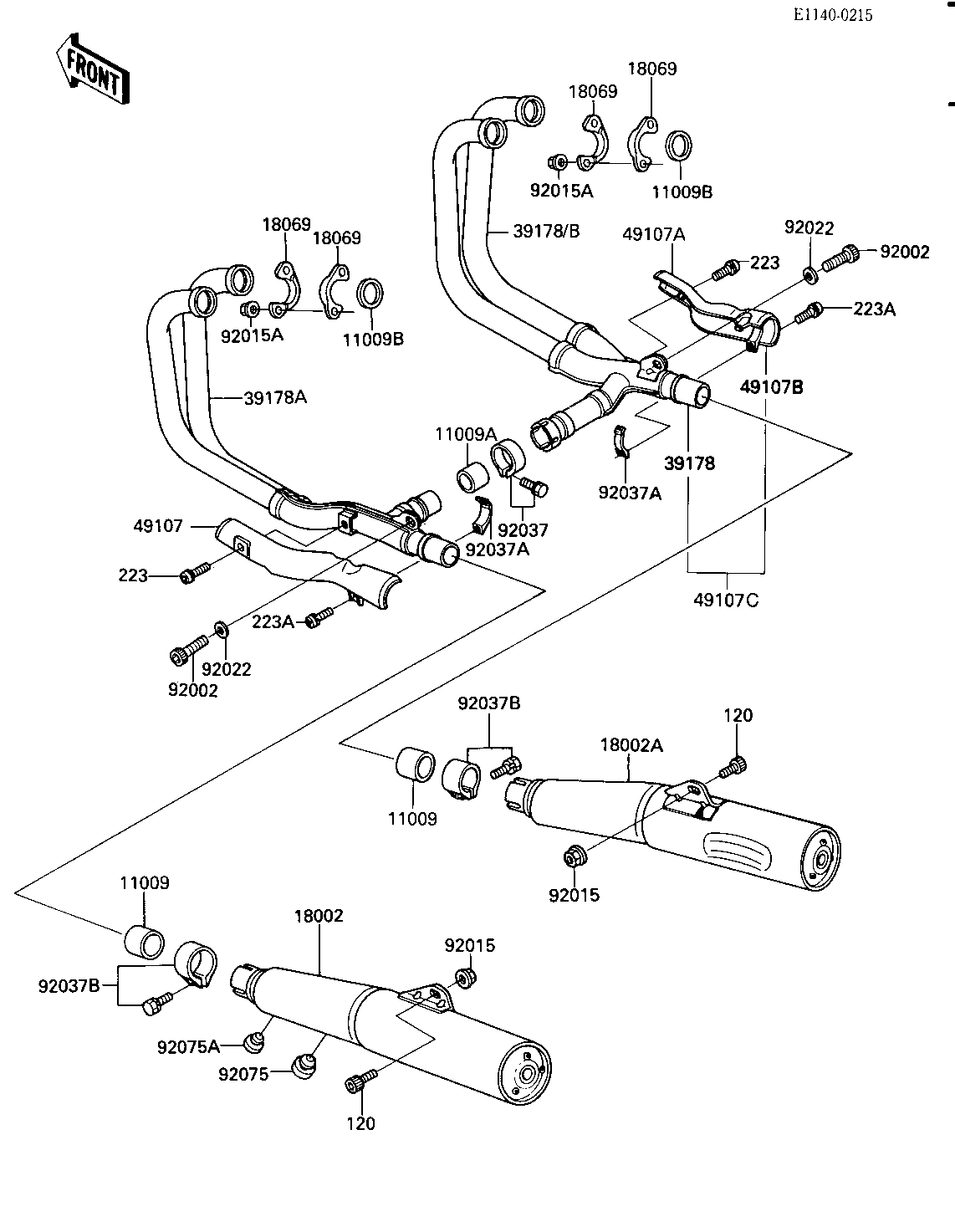

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
GASKET,EXHAUST PIPE C | 11009 | 11009-1666 | 2 | ||
GASKET,EXHAUST MANUFO | 11009A | 11009-1668 | 1 | ||
GASKET,EXHAUST PIPE H | 11009B | 11009-1840 | 4 | ||
BODY-COMP-MUFFLER,LH | 18002 | 18002-1556 | 1 | ||
BODY-COMP-MUFFLER,RH | 18002A | 18002-1557 | 1 | ||
HOLDER-EXHAUST PIPE | 18069 | 18069-1054 | 8 | ||
MANIFOLD-COMP-EXHAUST | 39178 | 39178-1055 | 1 | ( - ZX900AE011140) | |
MANIFOLD-COMP-EXHAUST | 39178A | 39178-1067 | 1 | ||
MANIFOLD-COMP-EXHAUST | 39178B | 39178-1068 | 1 | ( ZX900AE011141 - ) | |
COVER-EXHAUST PIPE,LH | 49107 | 49107-1053 | 1 | ||
COVER-EXHAUST PIPE | 49107A | 49107-5001 | 1 | ( - ZX900AE011140) | |
COVER-EXHAUST PIPE,RH | 49107B | 49107-1058 | 1 | ( ZX900AE011141 - ) | |
COVER-EXHAUST PIPE | 49107C | 49107-5001 | 1 | ( INCL 39178-1068 & 49107-1058 | |
BOLT | 92002 | 92002-1371 | 2 | ||
NUT,8M/M | 92015 | 92015-1014 | 2 | ||
NUT,FLANGED,8MM | 92015A | 92015-1397 | 8 | ||
WASHER | 92022 | 92022-1594 | 2 | ||
CLAMP,MUFFLER,BLACK | 92037 | 92037-1270 | 1 | ||
CLAMP,EXHAUST PIPE CO | 92037A | 92037-1506 | 2 | ||
CLAMP,POWER CHAMBER | 92037B | 92037-1537 | 2 | ||
DAMPER RUBB MAIN STAD | 92075 | 92075-015 | 1 | ||
DAMPER RUBBER | 92075A | 92075-281 | 1 | ||
BOLT-SOCKET | 120 | 120Z0820 | 2 | ||
SCREW-PAN-WS-CROS | 223 | 223C0610 | 2 | ||
SCREW-PAN-WS-CROS | 223A | 223C0620 | 2 |
