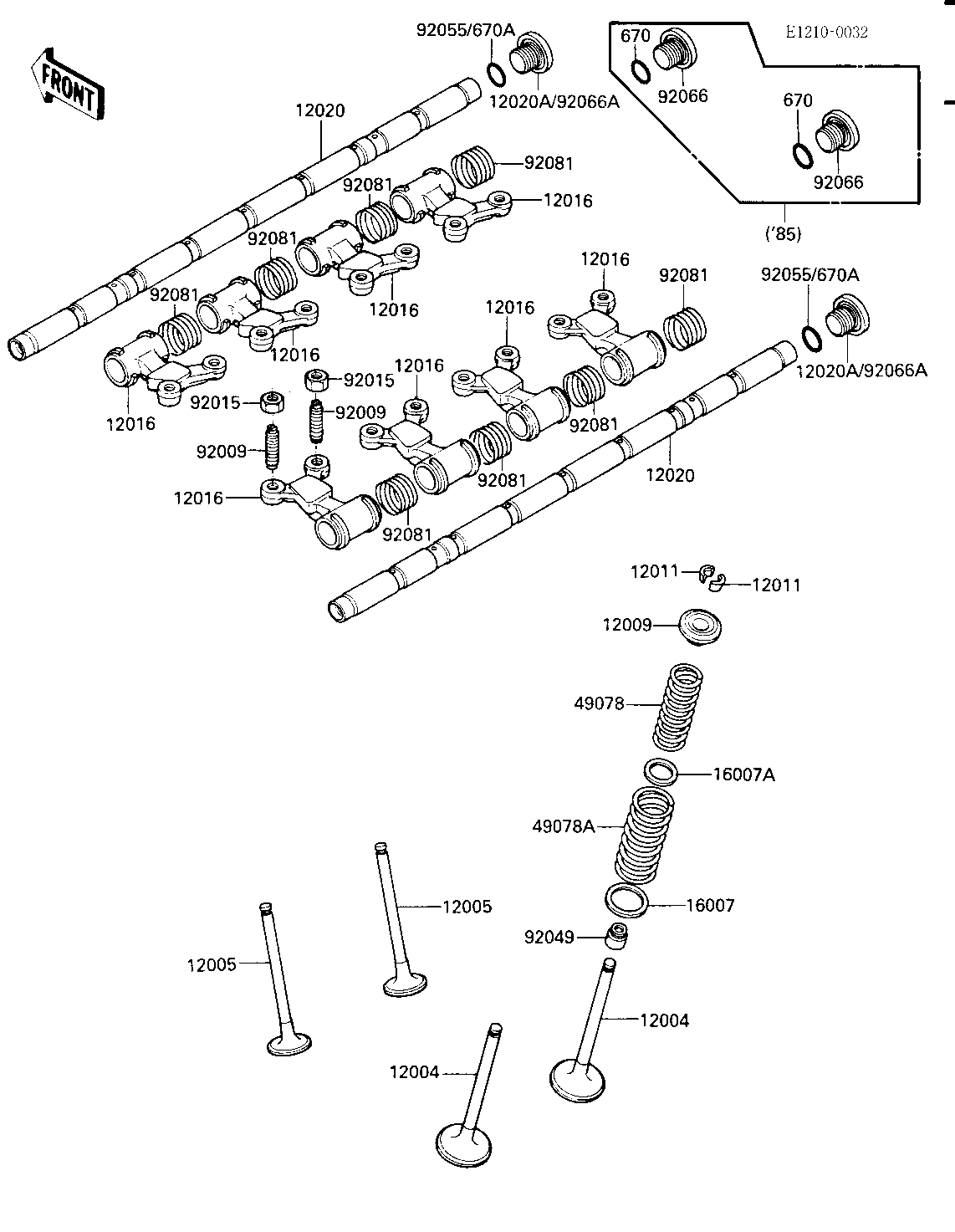

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
VALVE-INTAKE | 12004 | 12004-1085 | 8 | ||
VALVE-EXHAUST | 12005 | 12005-1052 | 8 | ||
RETAINER-VALVE SPRING | 12009 | 12009-1054 | 16 | ||
SPLIT KEEPER,VALVE SP | 12011 | 12011-1003 | 32 | ||
ARM-ROCKER | 12016 | 12016-1051 | 8 | ||
SHAFT-ROCKER,L=343 | 12020 | 12020-1051 | 2 | ||
SHAFT-ROCKER,14X11.5 | 12020A | 12020-1052 | 2 | ( - ZX900AE14555) | |
SEAT-SPRING | 16007 | 16007-1144 | 16 | ||
SEAT-SPRING | 16007A | 16007-1143 | 16 | ||
SPRING-ENGINE VALVE,I | 49078 | 49078-1067 | 16 | ||
SPRING-ENGINE VALVE,O | 49078A | 49078-1069 | 16 | ||
SCREW,7MM | 92009 | 92009-1279 | 16 | ||
NUT,7MM | 92015 | 92015-1325 | 16 | ||
SEAL-OIL,RVC2-5.5X8.5 | 92049 | 92049-1062 | 16 | ||
RING-O,ID=13.8 | 92055 | 92055-1141 | 2 | ( - ZX900AE14555) | |
PLUG,14X11.5 | 92066A | 92066-1192 | 2 | ( ZX900AE014556 - ) | |
SPRING,ROCKER ARM | 92081 | 92081-1636 | 8 | ||
"O" RING,15MM | 670A | 670B2015 | 2 | ( ZX900AE014556 - ) |
