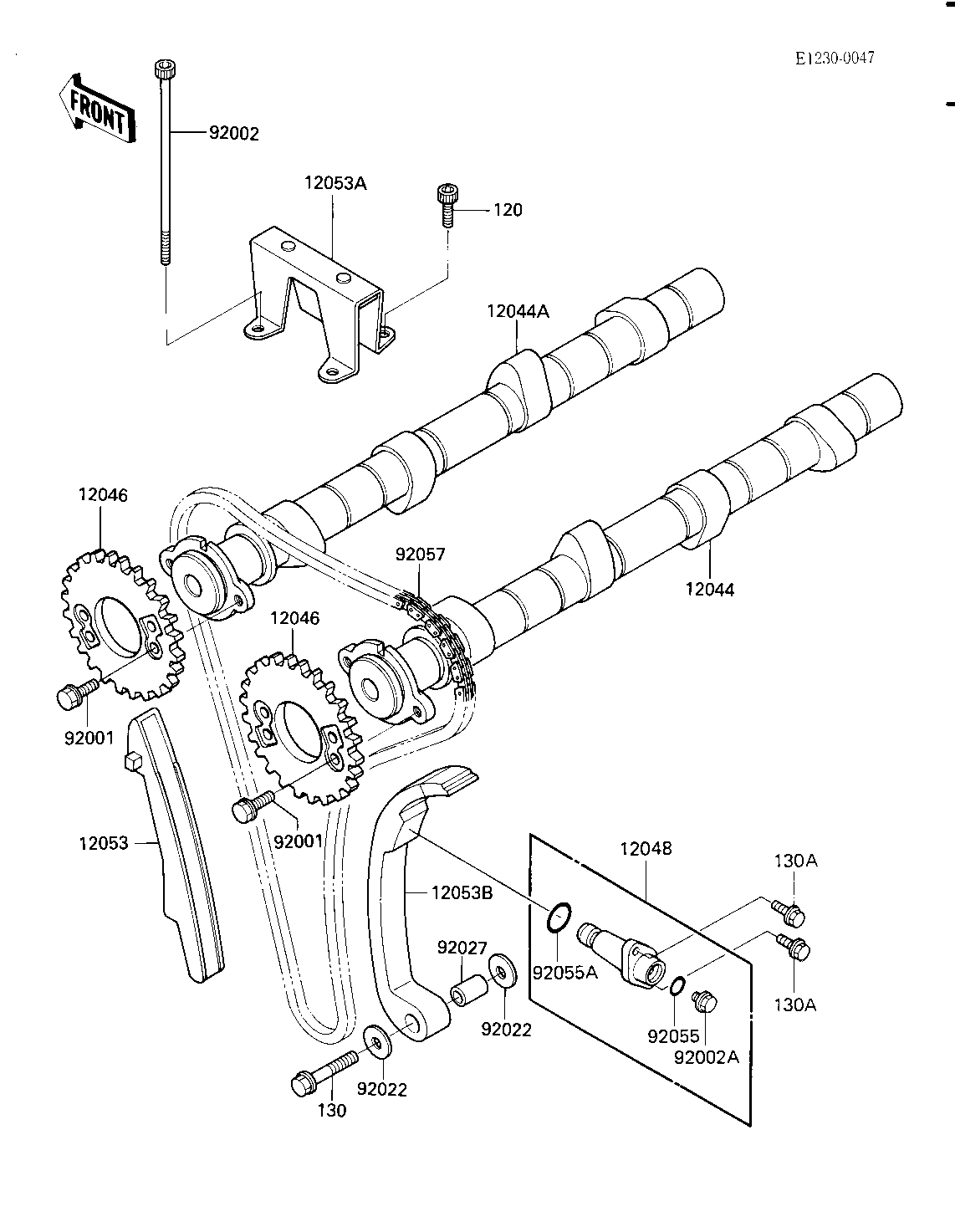

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
CAMSHAFT-VALVE,INTAKE 12044 12044-1112 1
CAMSHAFT-VALVE,EXHAUS 12044A 12044-1113 1
SPROCKET,CAMSHAFT,34T 12046 12046-1082 2
TENSIONER-ASSY,CAM CH 12048 12048-1071 1
GUIDE-CHAIN,FR 12053 12053-1114 1
GUIDE-CHAIN,UPP 12053A 12053-1115 1
GUIDE-CHAIN,RR 12053B 12053-1116 1
BOLT,SPROCKET FITTING 92001 92003-208 4
BOLT,6X118 92002 92001-1904 2
BOLT 92002A 92002-1302 1
WASHER,8.2X19X2 92022 92022-1533 2
COLLAR,8.2X10.5X15.6 92027 92027-1763 1
O RING 92055 670D2010 1
"0" RING,21MM 92055A 670D2021 1
CHAIN,CAMSHAFT 92057 92057-1160 1
BOLT,6X14 12 120P0614 2
BOLT,FLANGED,8X35 130 130G0835 1
BOLT-FLANGED-SMALL 132 132J0625 2
