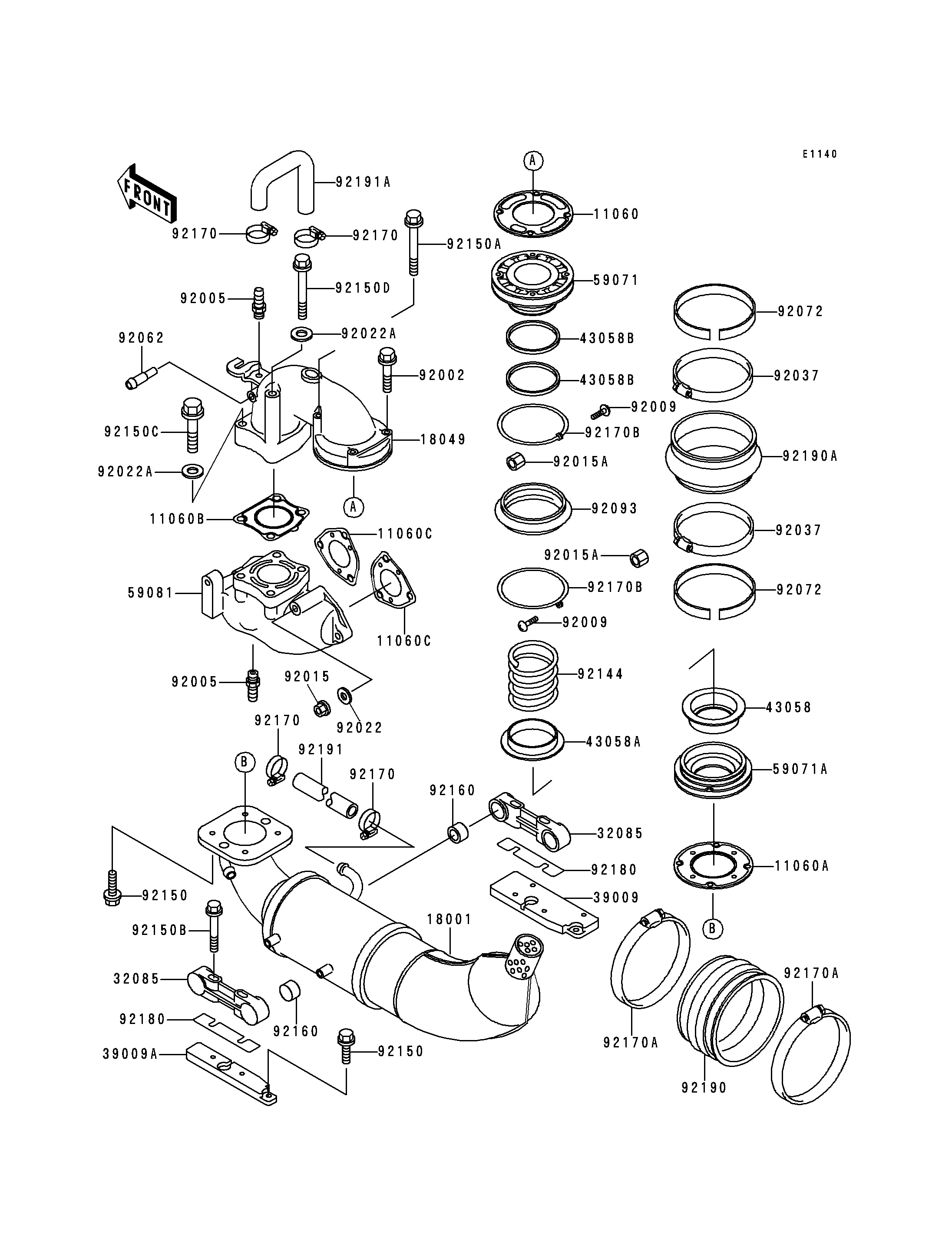

1998 Xi Sport - Muffler(s)

DOWNLOAD PDF
SELECT A NEW PART
11060
11060
11060A
11060A
11060B
11060B
11060C
11060C
11060C
11060C
18001
18001
18049
18049
32085
32085
32085
32085
39009
39009
39009A
39009A
43058
43058
43058A
43058A
43058B
43058B
43058B
43058B
59071
59071
59071A
59071A
59081
59081
92002
92002
92005
92005
92005
92005
92009
92009
92009
92009
92015
92015
92015A
92015A
92015A
92015A
92022
92022
92022A
92022A
92022A
92022A
92037
92037
92037
92037
92062
92062
92072
92072
92072
92072
92093
92093
92144
92144
92150
92150
92150
92150
92150A
92150A
92150B
92150B
92150C
92150C
92150D
92150D
92160
92160
92160
92160
92170
92170
92170
92170
92170
92170
92170
92170
92170A
92170A
92170A
92170A
92170B
92170B
92170B
92170B
92180
92180
92180
92180
92190
92190
92190A
92190A
92191
92191
92191A
92191A
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,EXHAUST PIPE 11060 11060-3718 1
GASKET,MUFFLER 11060A 11060-3724 1
GASKET,EXHAUST MANIFOLD 11060B 11060-3732 1
GASKET,EXHAUST MANIFOLD 11060C 11060-3759 2
MUFFLER 18001 18001-3767 1
PIPE-EXHAUST 18049 18049-3759 1
STOPPER 32085 32085-3713 2
BLOCK-MOUNT,RH 39009 39009-3708 1
BLOCK-MOUNT,LH 39009A 39009-3709 1
RING 43058 43058-3705 1
RING 43058A 43058-3706 1
RING 43058B 43058-3707 2
JOINT,UPP 59071 59071-3728 1
JOINT,LWR 59071A 59071-3729 1
MANIFOLD-EXHAUST 59081 59081-3720 1
BOLT,6X35 92002 92002-3715 2
FITTING,HOSE 92005 92005-3712 2
SCREW,3X14 92009 92009-3796 2
NUT,CAP,8MM 92015 92015-1371 6
NUT,3MM 92015A 92015-3825 2
WASHER,8.2X18X1.5 92022 92022-1964 6
WASHER,10.2X20X1.5 92022A 92022-3742 4
CLAMP 92037 92037-3706 2
NOZZLE 92062 92062-3705 1
BAND,ID=111 92072 92072-3740 2
SEAL 92093 92093-3738 1
SPRING 92144 92144-3739 1
BOLT,6X18 92150 92150-3729 8
BOLT,6X80 92150A 92150-3761 2
BOLT,6X50 92150B 92150-3762 4
BOLT,10X50 92150C 92150-3819 2
BOLT,10X145 92150D 92150-3820 2
DAMPER 92160 92160-3740 4
CLAMP 92170 92170-3718 4
CLAMP 92170A 92170-3721 2
CLAMP 92170B 92170-3731 2
SHIM 92180 92180-3701 AR
TUBE 92190 92190-3709 1
TUBE,JOINT 92190A 92190-3712 1
TUBE,13X19X140 92191 92191-3717 1
TUBE,HEAD-EXHAUST 92191A 92191-3766 1
