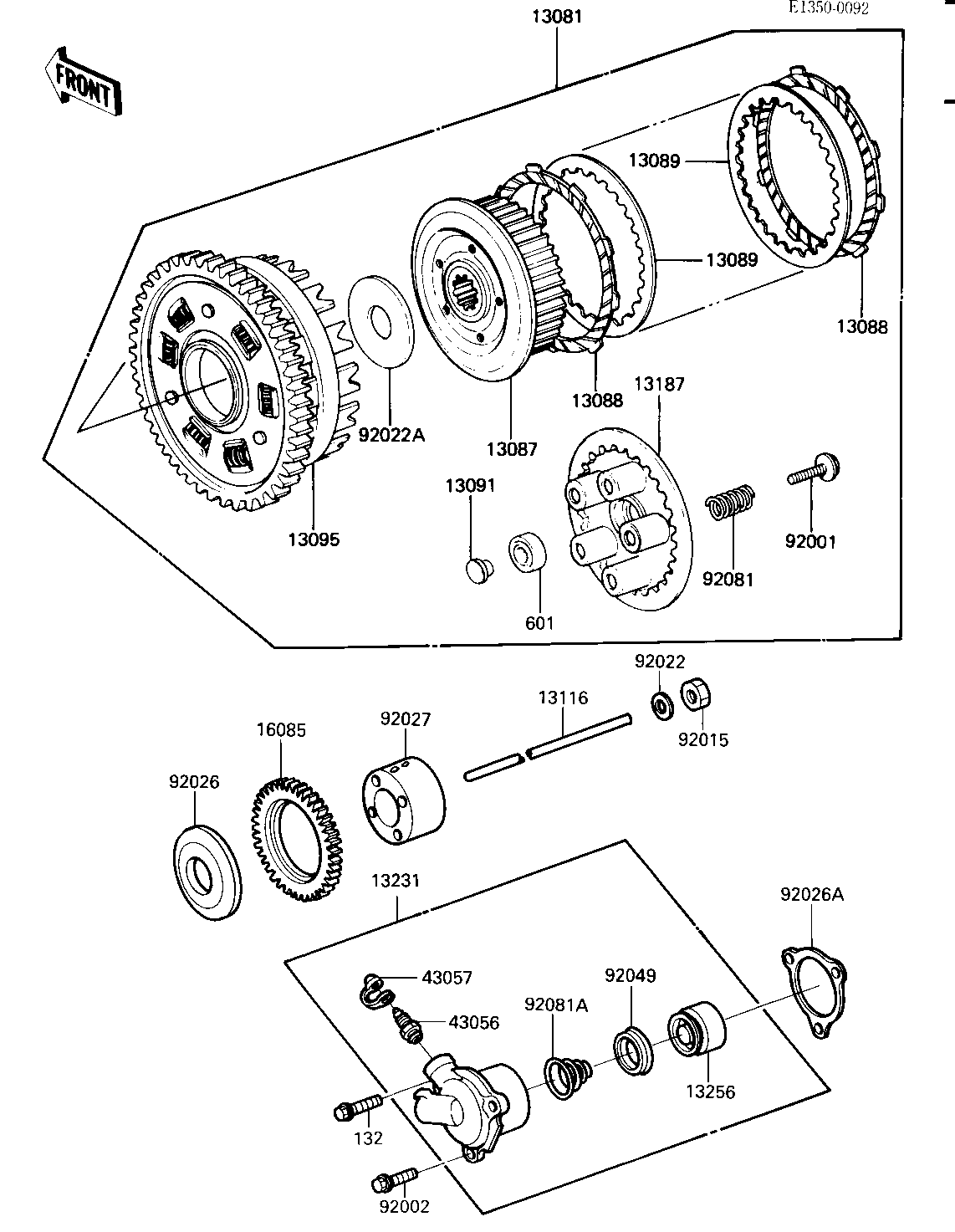

Parts Diagrams |
ITEM NAME | REF # | PART NUMBER | QUANTITY | DESTINATION | REMARKS |
---|---|---|---|---|---|
CLUTCH-ASSY | 13081 | 13081-1175 | 1 | ||
HUB,CLUTCH | 13087 | 13087-042 | 1 | ||
PLATE-FRICTION | 13088 | 13088-1013 | 8 | ||
PLATE,CLUTCH STEL | 13089 | 13089-027 | 7 | ||
HOLDER | 13091 | 13091-1085 | 1 | ||
HOUSING-COMP-CLUTCH | 13095 | 13095-1245 | 1 | ||
ROD-PUSH,CLUTCH | 13116 | 13116-1104 | 1 | ||
PLATE-CLUTCH OPERATIN | 13187 | 13187-1006 | 1 | ||
RELEASE-ASSY-CLUTCH | 13231 | 13231-1066 | 1 | ||
PISTON,CLUTCH RELEASE | 13256 | 13256-1051 | 1 | ||
GEAR,OIL PUMP | 16085 | 16085-1108 | 1 | ||
BREATHER-BRAKE | 43056 | 43056-1052 | 1 | ||
CAP-BREATHER | 43057 | 43057-1001 | 1 | ||
BOLT,CLUTCH SPR FITT | 92001 | 92001-1066 | 5 | ||
BOLT | 92002 | 92002-1613 | 2 | ||
NUT,20MM | 92015 | 92015-1555 | 1 | ||
WASHER,PLAIN,2.3X20.3 | 92022 | 92022-1116 | 1 | ||
WASHER,CLUTCH THRUST | 92022A | 92022-1592 | 1 | ||
SPACER | 92026 | 92026-5001 | 1 | ||
SPACER,CLUTCH RELEASE | 92026A | 92026-1263 | 1 | ||
COLLAR | 92027 | 92027-1710 | 1 | ||
SEAL-OIL,PISTON | 92049 | 92049-1165 | 1 | ||
SPRING,CLUTCH | 92081 | 92081-1033 | 5 | ||
SPRING,CLUTCH RELEASE | 92081A | 92081-1644 | 1 | ||
BOLT-FLANGED-SMALL | 132 | 132J0680 | 1 | ||
BEARING-BALL | 601 | 92045-1235 | 1 |
CLUTCH-ASSY | |
REF # | 13081 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HUB,CLUTCH | |
REF # | 13087 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-FRICTION | |
REF # | 13088 |
---|---|
PART NUMBER | |
QUANTITY | 8 |
DESTINATION | |
REMARKS |
PLATE,CLUTCH STEL | |
REF # | 13089 |
---|---|
PART NUMBER | |
QUANTITY | 7 |
DESTINATION | |
REMARKS |
HOLDER | |
REF # | 13091 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
HOUSING-COMP-CLUTCH | |
REF # | 13095 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
ROD-PUSH,CLUTCH | |
REF # | 13116 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PLATE-CLUTCH OPERATIN | |
REF # | 13187 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
RELEASE-ASSY-CLUTCH | |
REF # | 13231 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
PISTON,CLUTCH RELEASE | |
REF # | 13256 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
GEAR,OIL PUMP | |
REF # | 16085 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BREATHER-BRAKE | |
REF # | 43056 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
CAP-BREATHER | |
REF # | 43057 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT,CLUTCH SPR FITT | |
REF # | 92001 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
BOLT | |
REF # | 92002 |
---|---|
PART NUMBER | |
QUANTITY | 2 |
DESTINATION | |
REMARKS |
NUT,20MM | |
REF # | 92015 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,PLAIN,2.3X20.3 | |
REF # | 92022 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
WASHER,CLUTCH THRUST | |
REF # | 92022A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER | |
REF # | 92026 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPACER,CLUTCH RELEASE | |
REF # | 92026A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
COLLAR | |
REF # | 92027 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SEAL-OIL,PISTON | |
REF # | 92049 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
SPRING,CLUTCH | |
REF # | 92081 |
---|---|
PART NUMBER | |
QUANTITY | 5 |
DESTINATION | |
REMARKS |
SPRING,CLUTCH RELEASE | |
REF # | 92081A |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BOLT-FLANGED-SMALL | |
REF # | 132 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
BEARING-BALL | |
REF # | 601 |
---|---|
PART NUMBER | |
QUANTITY | 1 |
DESTINATION | |
REMARKS |
