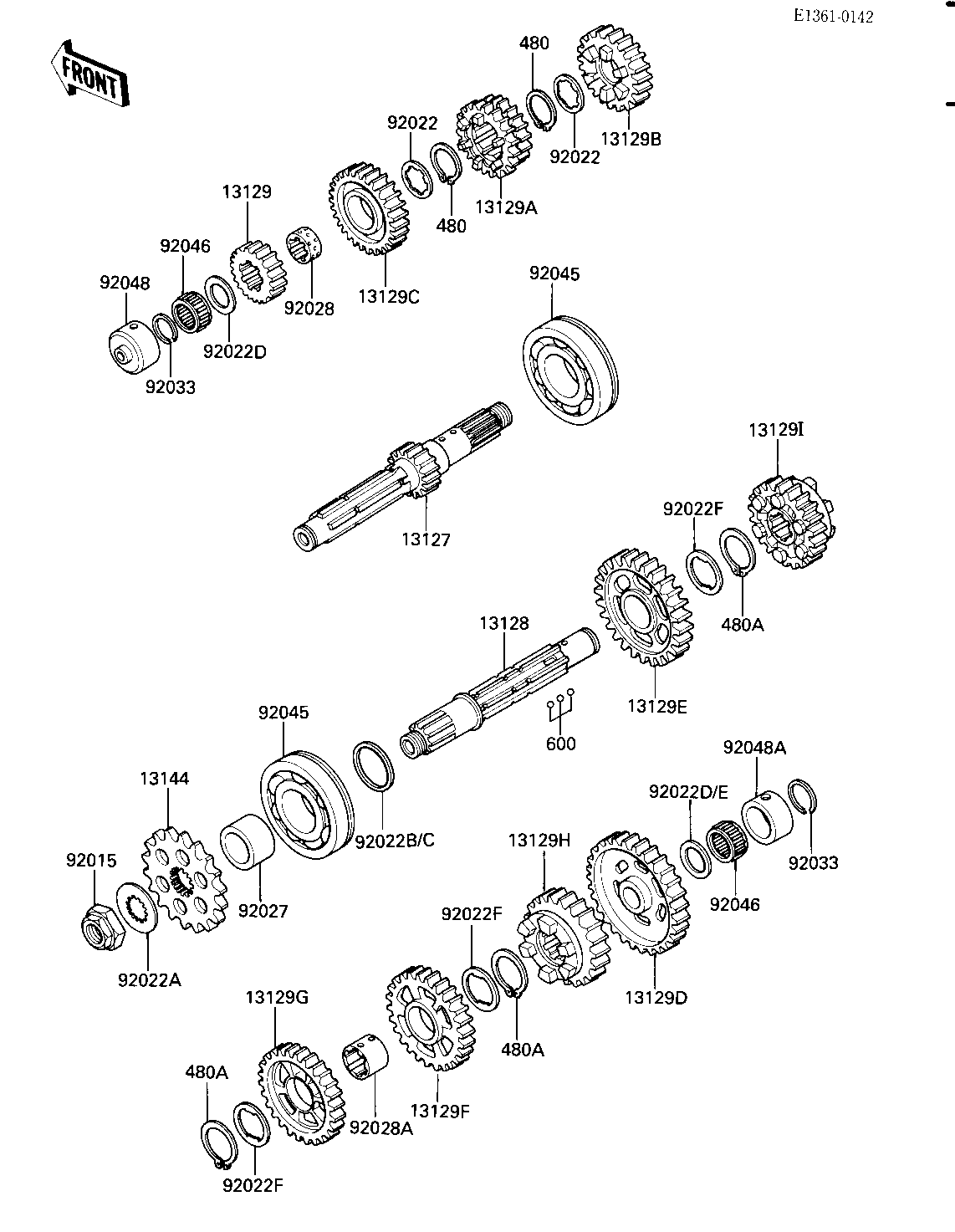

1984 Ninja® - TRANSMISSION

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
SHAFT-TRANSMISSION IN 13127 13127-1108 1
SHAFT-TRANSMISSION 13128 13128-1113 1
GEAR,INPUT 2ND,19T 13129 13129-1530 1
GEAR,INPUT 3RD&4TH,22 13129A 13129-1531 1
GEAR,INPUT 5TH,26T 13129B 13129-1532 1
GEAR,INPUT TOP,28T 13129C 13129-1533 1
GEAR,OUTPUT LOW,42T 13129D 13129-1534 1
GEAR,OUTPUT 2ND,38T 13129E 13129-1535 1
GEAR,OUTPUT 3RD,35T 13129F 13129-1536 1
GEAR,OUTPUT 4TH,32T 13129G 13129-1537 1
GEAR,OUTPUT 5TH,30T 13129H 13129-1538 1
GEAR,OUTPUT TOP,29T 13129I 13129-1539 1
SPROCKET-OUTPUT,17T 13144 13144-1106 1
NUT,20MM 92015 92015-1210 1
WASHER,LOCK (O.D=35) 92022 92022-1077 2
WASHER 92022A 92200-1060 1
WASHER,28.3X34X0.5 92022B 92022-1572 AR
WASHER,28.3X34X0.3 92022C 92022-1626 AR
WASHER,PLAIN,22MM 92022D 92022-212 2
WASHER,PLAIN,22MM 92022E 92022-213 AR
WASHER,LOCK 92022F 92024-069 3
COLLAR 92027 92143-1431 1
BUSHING,TOP GEAR 92028 92028-1124 1
BUSHING,OUTPUT GEAR 92028A 92028-1271 1
CIRCLIP,25MM 92033 92033-025 2
BEARING-BALL 92045 92045-1186 2
BEARING,PK223013.8 92046 92046-031 2
RACE,INPUT SHAFT 92048 92048-1052 1
RACE,30X38X15 92048A 92048-1053 1
CIRCLIP 28MM 480 480J2800 2
CIRCLIP 480A 480J2900 3
BALL STEEL 5/32' 600 600A0500 3
