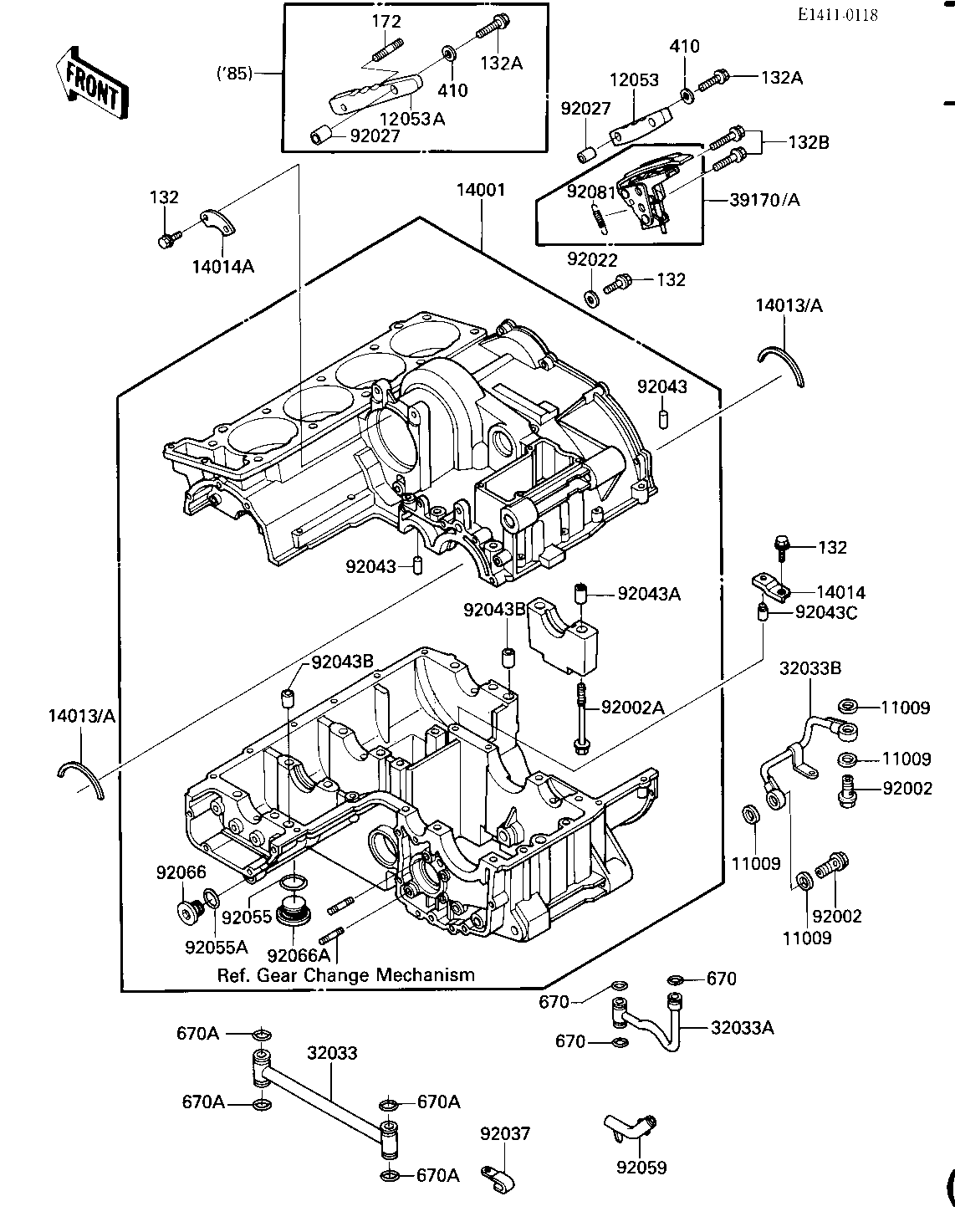

1984 Ninja® - CRANKCASE (-E/NO. 030893)

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,12.4X17X1.5 11009 11009-1376 4
GUIDE-CHAIN 12053 12053-1117 1
SET-CRANKCASE 14001 14001-5171 1
RING-POSITION 14013 14013-1005 2
RING-POSITION 14013A 14013-1006 2
PLATE-POSITION,BALANC 14014 14014-1052 1
PLATE-POSITION 14014A 14014-1056 1
PIPE,MAIN GALLARY 32033 32033-1201 1
PIPE 32033A 32033-1202 1
PIPE 32033B 32033-1961 1
TENSIONER-COMP,GENERA 39170 39170-1051 1
BOLT,BANJO,12X23 92002 92001-1871 2
BOLT 92002A 92002-1649 2
WASHER,6X19.5X2 92022 92022-1517 1
COLLAR,8X15 92027 92027-1079 2
CLAMP,WIRING HARNESS 92037 92037-1539 1
PIN DOWEL 6MM 92043 92042-016 2
PIN,DOWEL,12MM 92043A 92042-031 2
PIN,DOWEL,10X8.2X14 92043B 92043-1037 2
PIN,BALANCER 92043C 92043-1242 1
RING-O,25.7X2.4 92055 92055-1136 1
RING-O 92055A 92055-1146 1
TUBE 92059 92059-1508 1
PLUG,MAIN GALLARY,18X 92066 92066-1096 1
PLUG,25X8 92066A 92066-1161 1
SPRING 92081 92081-1668 1
BOLT-FLANGED-SMALL 132 132G0612 4
BOLT-FLANGED-SMALL 132A 132G0625 2
BOLT-FLANGED-SMALL 132B 132G0630 2
WASHER PLAIN 6MM 410 410B0600 2
O RING 670 670D1509 3
O RING 670A 670D2016 4
