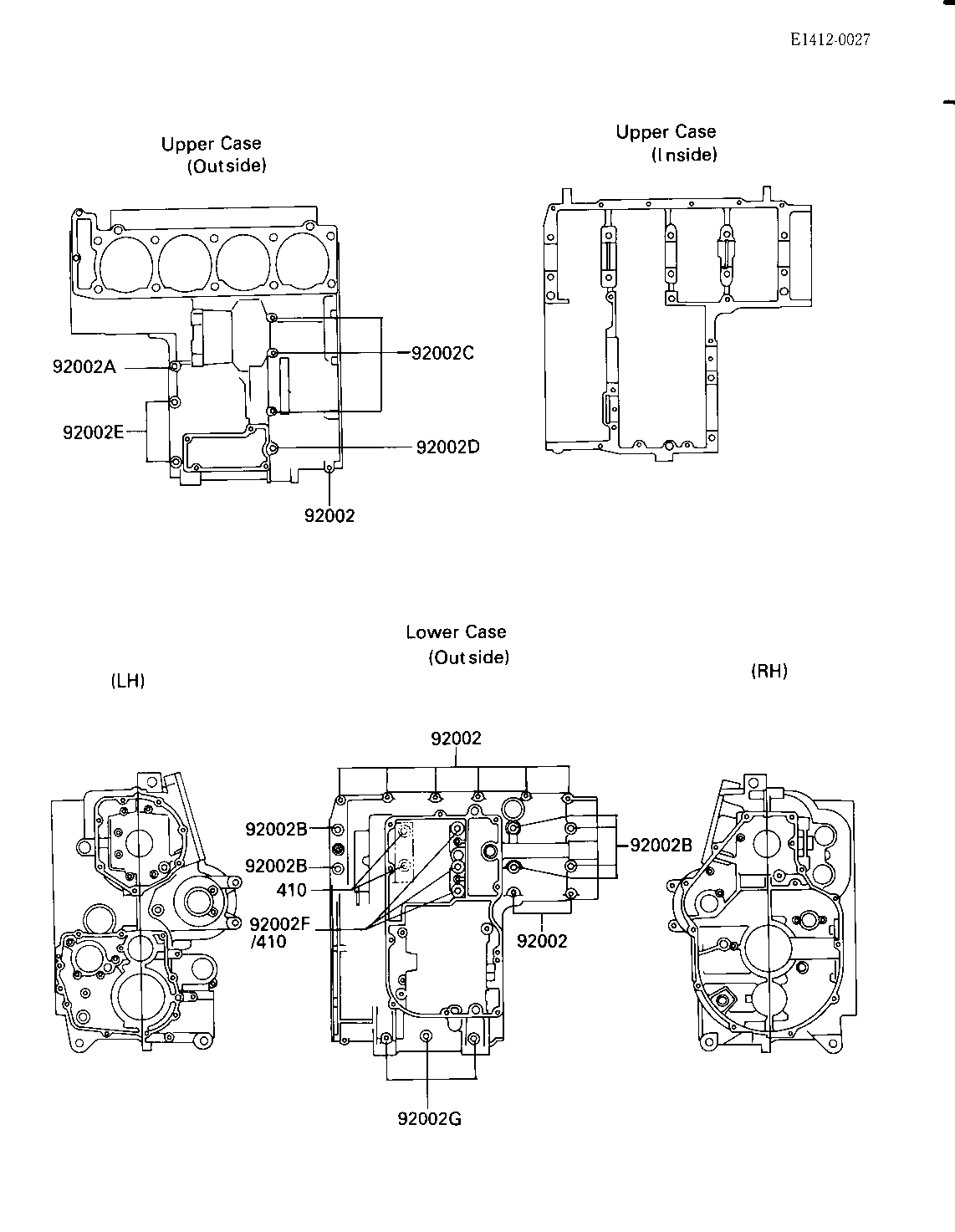

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BOLT,6X38 92002 92001-1899 9
BOLT,6X55 92002A 92002-1054 1
BOLT,8X90 92002B 92002-1057 6
BOLT 92002C 92150-1140 3
BOLT 92002D 92002-1306 1
BOLT 92002E 92002-1308 2
BOLT,6X120 92002F 92150-1164 3
BOLT 92002G 92002-1654 3
WASHER PLAIN 8MM 410 410B0800 5
