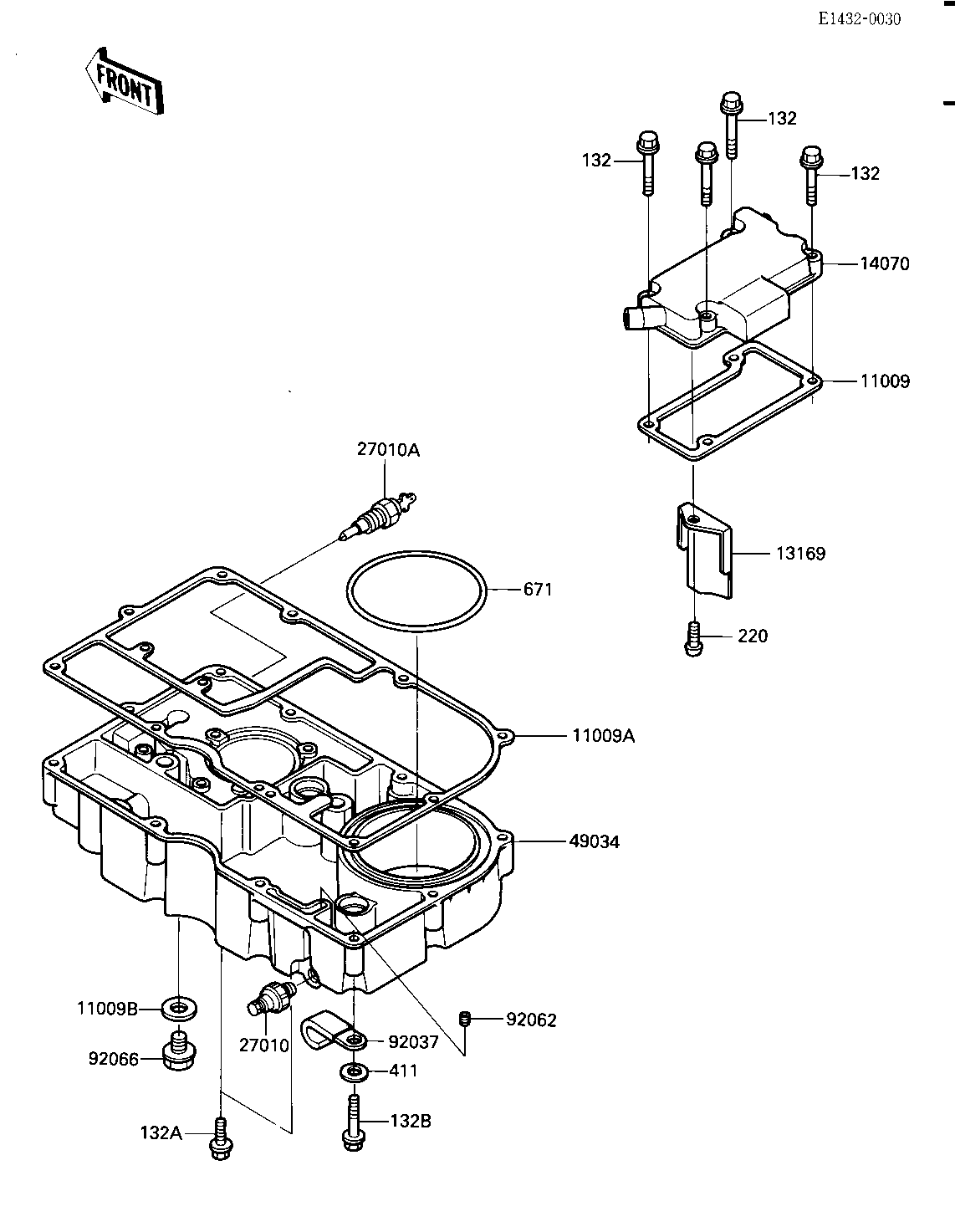

Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
GASKET,BREATHER BODY 11009 11009-1861 1
GASKET 11009A 11009-1981 1
GASKET,DRIN PLUG 11009B 92065-097 2
PLATE,BREATHER 13169 13169-1832 1
BODY-BREATHER 14070 14070-1061 1
SWITCH,OIL PRESSURE 27010 27010-1155 1
SWITCH 27010A 27010-1173 1
PAN-OIL 49034 49034-1059 1
CLAMP,WIRING HARNESS 92037 92037-1539 1
NOZZLE,OIL BIAS 92062 92062-011 1
PLUG,OIL DRAIN,12X15 92066 92066-1174 2
BOLT-FLANGED-SMALL 132 132E0625 4
BOLT-FLANGED-SMALL 132A 132J0640 4
BOLT-FLANGED-SMALL 132B 132J0625 6
SCREW-PAN-WP-CROS 235 235B0610 1
WASHER PLAIN 411 411F0600 1
"0" RING,90MM 671 671B2590 1
