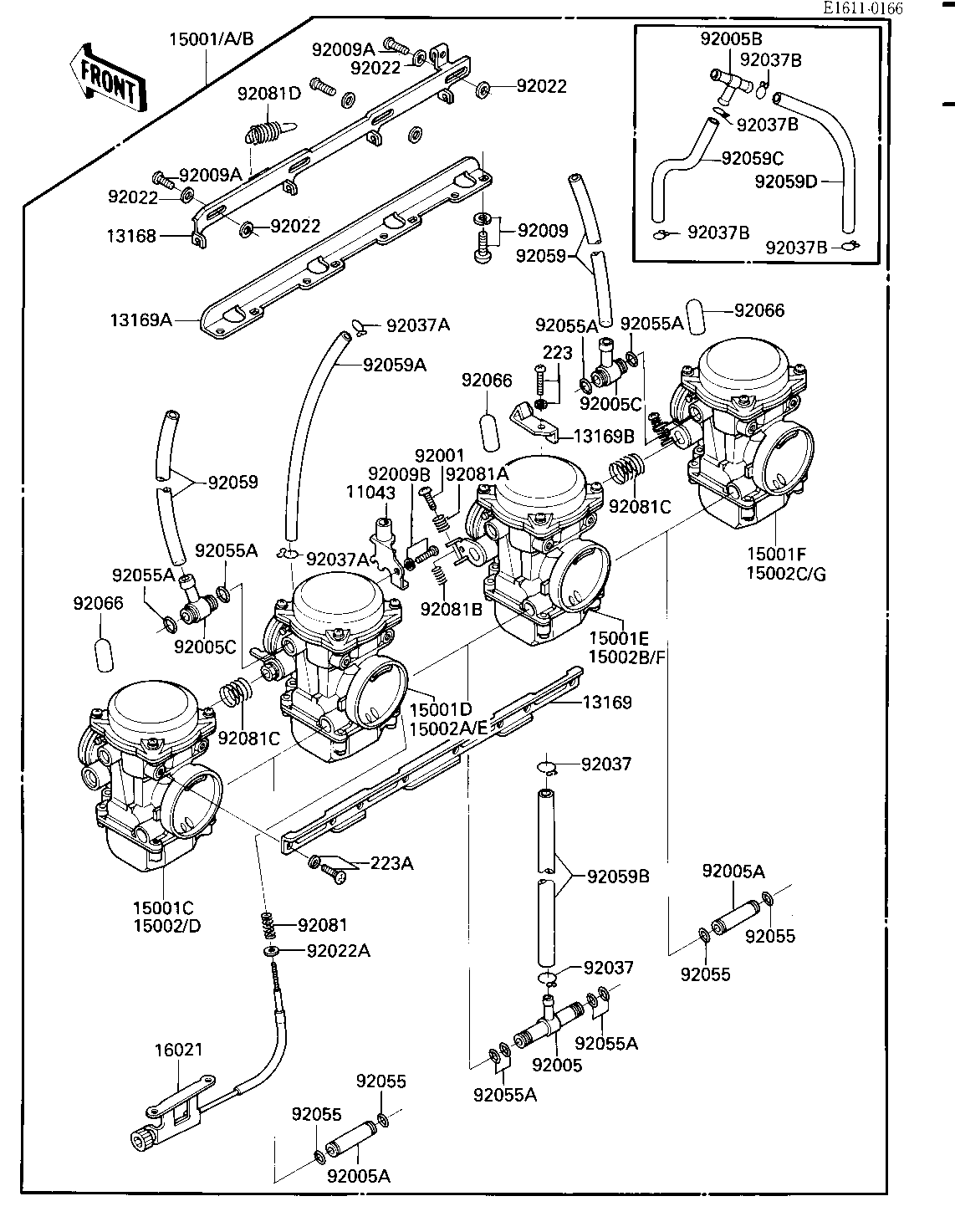

1984 Ninja® - CARBURETOR ASSY

DOWNLOAD PDF
SELECT A NEW PART
Part Item Information
ITEM NAME REF # PART NUMBER QUANTITY DESTINATION REMARKS
BRACKET-B,THROTTLE CA 11043 11043-1336 1
LEVER,STARTER 13168 13168-1245 1
PLATE,CARBURETOR STAY 13169 13169-1869 1
PLATE,CARBURETOR STAY 13169A 13169-1870 1
PLATE 13169B 13169-1871 1
CARBURETOR-ASSY 15001 15001-1057 1 CA
CARBURATOR-ASSY (Canada) 15001A 15001-1058 1 CN
CARBURETOR 15001B 16001-1990 1 US
CARBURETOR,LH,OUTER 15001C 16001-1991 1 US
CARBURETOR,LH,INNER 15001D 16001-1992 1 US
CARBURETOR,RH,INNER 15001E 16001-1993 1 US
CARBURETOR,RH,OUTER 15001F 16001-1994 1 US
CARBURETOR,LH,OUTSIDE 15002 15002-1131 1 CA
CARBURETOR,LH,INSIDE 15002A 15002-1132 1 CA
CARBURETOR,RH,INSIDE 15002B 15002-1133 1 CA
CARBURETOR,RH,OUTSIDE 15002C 15002-1134 1 CA
CARBURATOR,LH,OUTSIDE (Canada) 15002D 15002-1135 1 CN
CARBURATOR,LH,INSIDE (Canada) 15002E 15002-1136 1 CN
CARBURATOR,RH,INSIDE (Canada) 15002F 15002-1137 1 CN
CARBURATOR,RH,OUTSIDE (Canada) 15002G 15002-1138 1 CN
SCREW-THROTTLE STOP 16021 16021-1101 1
BOLT,THROTTLE ADJUST 92001 92001-1998 3
FITTING,FUEL,T-TYPE 92005 92005-1108 1
FITTING,FUEL,I-TYPE 92005A 92005-1109 2
FITTING,T-TYPE 92005B 92005-1135 1 CA
FITTING,T-TYPE 92005C 92005-1125 2
SCREW,6X16 92009 92009-1129 8
SCREW 92009A 92009-1262 3
SCREW 92009B 92009-1365 1
WASHER,6.1X11X0.8,POL 92022 92022-1199 6
WASHER,PLAIN,STOP SPR 92022A 92022-1480 1
CLAMP,FUEL INLET TUBE 92037 92037-1075 2
CLAMP,TUBE,OVERFLOW 92037A 92037-1142 2
CLAMP,TUBE 92037B 92037-1606 4 CA
"O" RING 92055 92055-1004 4
RING-O,FUEL FITTING 92055A 92055-1223 8
TUBE,6.5X9.5X290 92059 92059-1376 2 CN,US
TUBE,5X9X180 92059A 92059-1377 1
TUBE,7.3X12.5X260 92059B 92059-1492 1
TUBE,7X11X300 92059C 92059-1493 1 CA
TUBE,7X11X400 92059D 92059-1494 1 CA
RUBBER PLUG 92066 92068-006 1 US
RUBBER PLUG 92066 92068-006 3 US
SPRING,THROTTLE STOP 92081 92081-1617 1
SPRING,THROTTLE ADJUS 92081A 92081-1620 3
SPRING,THROTTLE ADJUS 92081B 92081-1621 3
SPRING,THROTTLE ADJUS 92081C 92081-1622 2
SPRING,STARTER LEVER 92081D 92081-1762 1
SCREW-PAN-WS-CROS 223 223C0420 1
SCREW-PAN-WS-CROS 223A 223C0510 8
